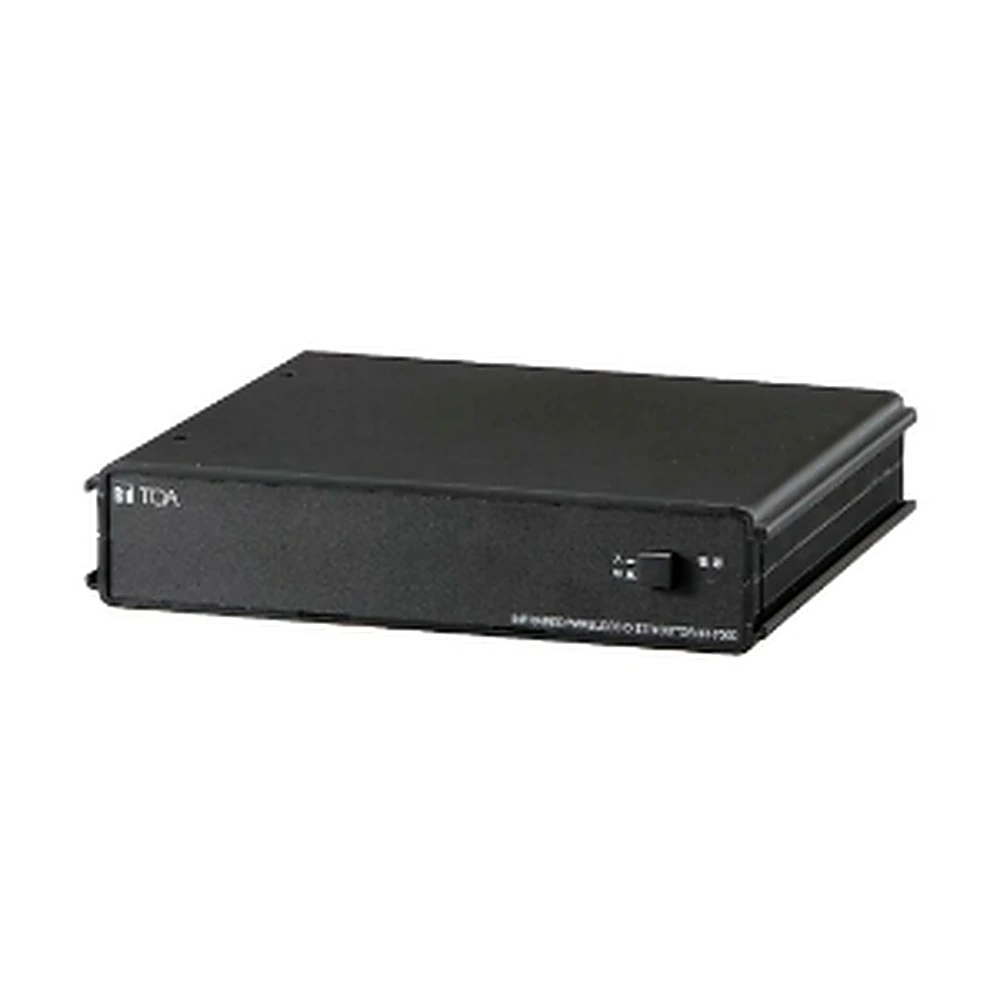

TOA IR-700D

฿9,900.00

The IR-700D is a receiver distributor used in TOA’s infrared wireless microphone system. It employs 4 receiver mixing inputs and 2 distribution outputs. Using the IR-700D in conjunction with the IR-702T infrared wireless tuner allows up to 16 infrared wireless receivers to be connected to the IR-702T.

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

Infrared Wireless Distributor TOA IR-700D

TOA IR-700D

คุณลักษณะของ Infrared Wireless Distributor TOA IR-700D

Power Source	AC mains, 50/60 Hz (use of the supplied AC adapter)
Power Consumption	25 W or less
Input/Output	4 mixing inputs, 2 distribution outputs
Band-Pass Frequency	3.0 – 6.0 MHz
Gain	0 dB (±3 dB)
Infrared Receiver Input	75 Ω, BNC jack × 4 (Infrared wireless receiver’s power source: 24 V DC, 800 mA max. in total of 4 terminals)
Number of Connectable Conference Receiver	16 (YW-1024 × 4)
Distribution Output	75 Ω, BNC jack
Operating Temperature	-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity	30 % to 85 %RH (no condensation)
Finish	Case: ABS resin, black
Dimensions	210 (W) × 44 (H) × 200.9 (D) mm (8.27″ × 1.73″ × 7.91″)
Weight	640 g (1.41 lb) (unit only)
Accessory	AC adapter (DC cord length: 1.5 m (4.92 ft))* …1, AC Power cord (2 m (6.56 ft)) …1, BNC plug-to-BNC plug cord (50 cm (1.64 ft)) …1, Rubber foot …4
Option	Rack mounting bracket: MB-WT3 MB-WT4 (for mounting with the optional IR-702T together)
