TOA MX-9200-AS

฿27,800.00

MX-9200 is a wireless mixer pre-amplifier equipped with 9 inputs including 4 inputs MIC with phantom, 1 selectable input with option of MIC or AUX, 3 selectable inputs with options of MIC or LINE and 1 selectable input with option of MIC or streaming from smartphone.

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

รหัสสินค้า: MX-9200-AS หมวดหมู่: เครื่องขยายเสียง, เครื่องเสียง

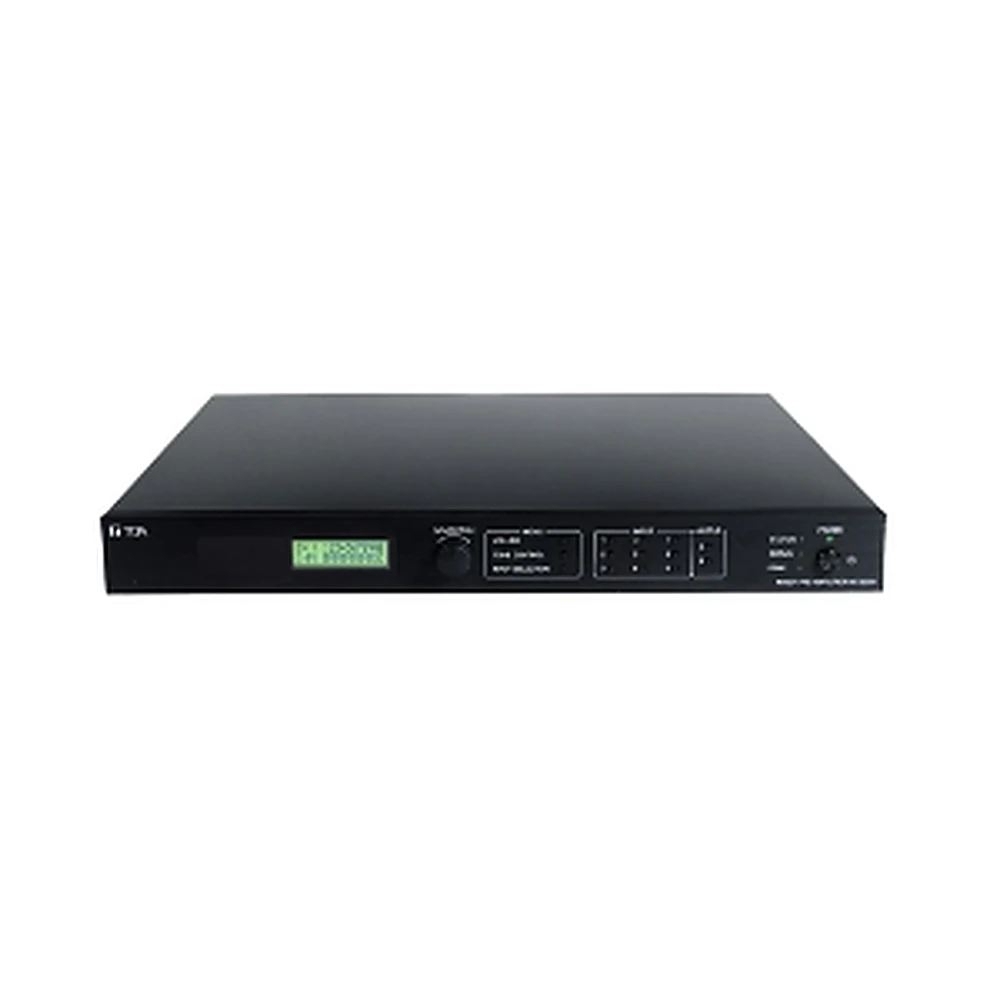

Smart Mixer Pre-Amplifier TOA MX-9200-AS

TOA MX-9200-AS

คุณลักษณะของ Smart Mixer Pre-Amplifier TOA MX-9200-AS

MX-9200 is a wireless mixer pre-amplifier equipped with 9 inputs including 4 inputs MIC with phantom,
1 selectable input with option of MIC or AUX, 3 selectable inputs with options of MIC or LINE and 1 selectable input with option of MIC or streaming from smartphone.
Parameter settings like Volume, Bass, Middle, Treble, Mute on individual input channel and 2 output channels can be easily adjusted remotely with an android touch screen device connected by Bluetooth.
Brochure : TOA MX-9200-AS Catalog

Spec Of Smart Mixer Pre-Amplifier TOA MX-9200-AS

Power Source	220 – 240 V AC, 14 W
Audio Input	Input CH 1 with Phantom option 19 V DC: – CHIME MIC: Balanced, Selectable sensitivity -55 dB (1.8 mV)/ -30 dB (30 mV), 2.2 kΩ, rated 1 kHz, RJ45 connector – MIC: Balanced, Selectable sensitivity -55 dB (1.8 mV)/ -30 dB (30 mV), 2.2 kΩ, rated 1 kHz, Phone jack connector Input CH 2-4 with Phantom option 19 V DC: – Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz, Phone jack connector Selectable Input CH 5 with options: – MIC: Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz, Phone jack connector – AUX: Unbalanced, Sensitivity 0 dB (1.8 mV), 10 kΩ, rated 1 kHz, RCA jack connector Selectable Sensitivity Input CH 6-8, Removable terminal 3 pins with sensitivity options: – LINE: Balanced, Sensitivity 0 dB, 2.2 kΩ, rated 1 kHz – MIC: Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz Selectable Sensitivity Input CH 9, Removable terminal 3 pins with sensitivity options: – MIC: Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz – STREAMING: Unbalanced, Sensitivity 0 dB, 10 kΩ, rated 1 kHz
Audio Output	Audio OUT A & B, Balanced, Removable terminal 3 pins Optional output level: 0 dB / -10 dB (300 mV) / -20 dB (100 mV), 600 Ω, rated 1 kHz
Control Ouput	9 Shortcut switch IN, 2 Shortcut switch OUT, 1 Shortcut switch VOLUME, 1 Shortcut switch TONE CONTROL, 1 Shortcut switch INPUT SELECTION, 1 Navigation switch (Right, Left, Push)
Tone Control	Bass ± 13 dB at 100 Hz, Middle ± 13 dB at 1 kHz, Treble ± 13 dB at 10 kHz
Distortion	Under 1 % at 1 kHz, rated power
Frequency Response	30 Hz – 20 kHz, ± 3dB
Indicator	LCD display with backlight Green, POWER indicator (Green), STATUS indicator (Green), SIGNAL indicator (Green), PEAK indicator (RED)
Connection	Bluetooth 4.2, USB Type B (PC Setting/Update Firmware)
Operating Temperature	0 °C to +40 °C
Operating Humidity	Under 90 % RH (no condensation)
Finish	Front Panel: Aluminium Hair Line, Paint, Black Case: Steel Plate, Paint, Black
Dimensions	420 (W) × 59 (H) × 339.7 (D) mm
Weight	3.3 kg
Accessory	6P connector x 2, 3P connector x 2
