TOA PC-1860

฿1,050.00

All metallic construction, ideal for use in a voice alarm system or BGM system. It feature spring clamp mechanism for easy mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connection easy and allow bridge wiring.

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

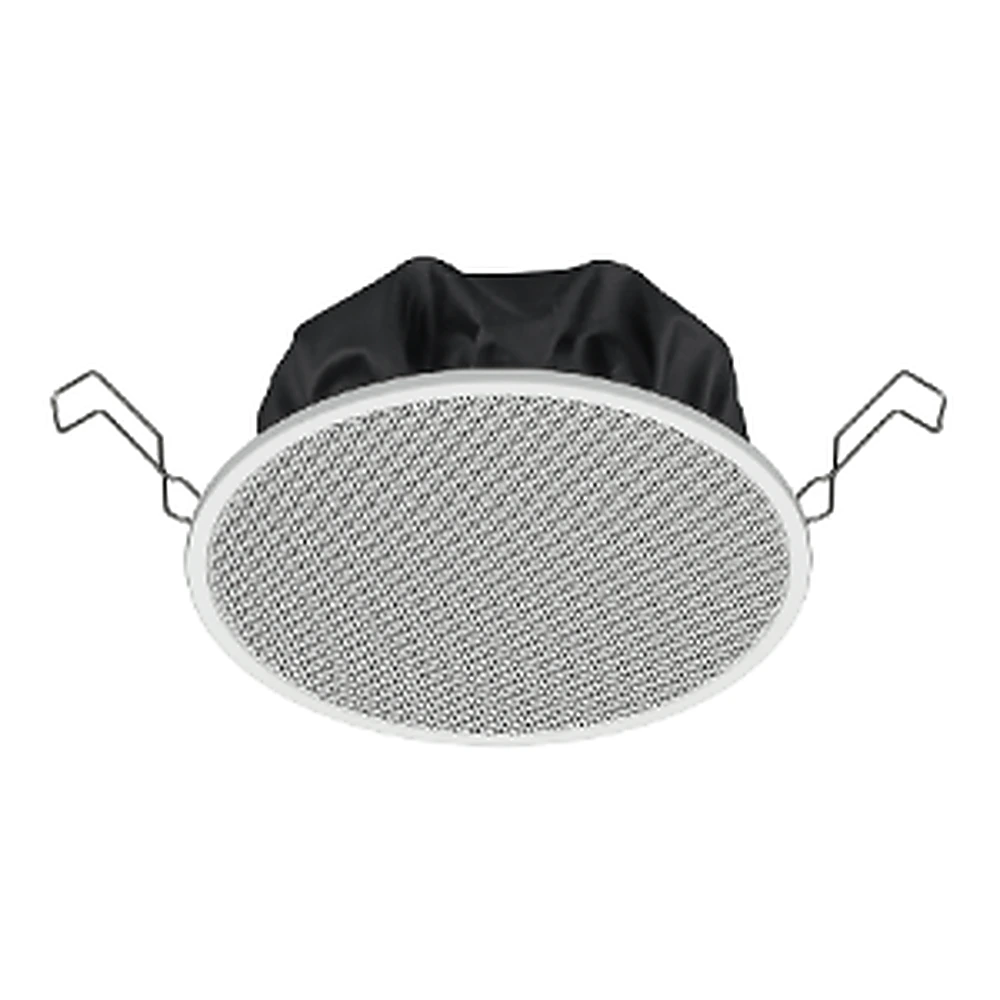

Ceilling Mount Speaker (5″, 6W) TOA PC-1860

TOA PC-1860

คุณลักษณะของ Ceilling Mount Speaker (5″, 6W) TOA PC-1860

Rated Input	6 W (100 V line), 3 W (70 V line)
Rated Impedance	100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity	94 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise)
Frequency Response	80 Hz – 20 kHz (peak -20 dB)
Speaker Component	12 cm (5″) cone-type
Operating Temperature	-10 °C to + 50 °C (14 °F to 122 °F)
Dimensions for Fixing Hole	Mounting hole: φ150±3 mm (φ5.91″±0.12″) Ceiling thickness: 5 – 25 mm (0.2″ – 0.98″)
Speaker Mounting Method	Spring clamp
Applicable Cable	Solid wire: 0.5 – 3 mm² (AWG 20 – 12)
Connection	Push wire connection (bridging terminal-2 branch type)
Finish	Frame: Steel plate, white (RAL 9016 equivalent), paint Grille: Steel net, white (RAL 9016 equivalent), paint
Dimensions	φ180 × 70 (D) mm (φ7.09″ × 2.76″)
Weight	560 g (1.23 lb)
Accessory	Paper pattern …1
