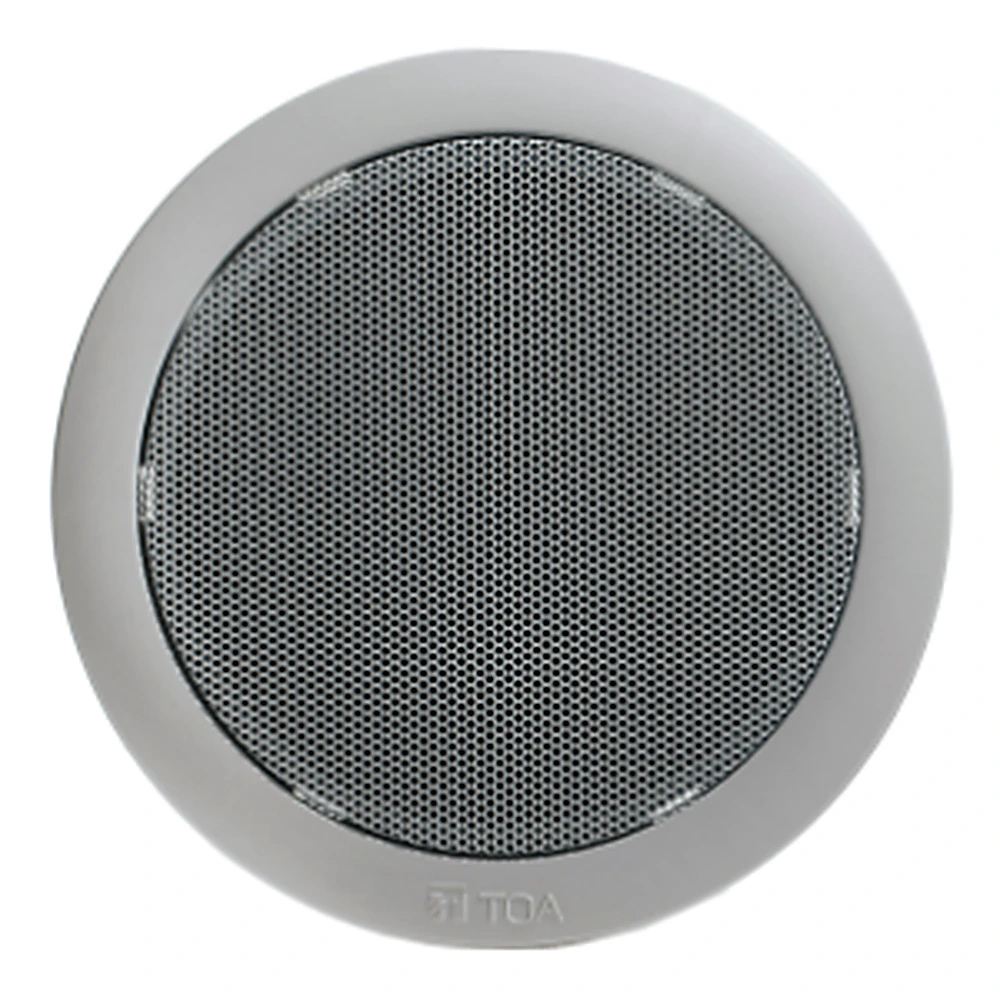

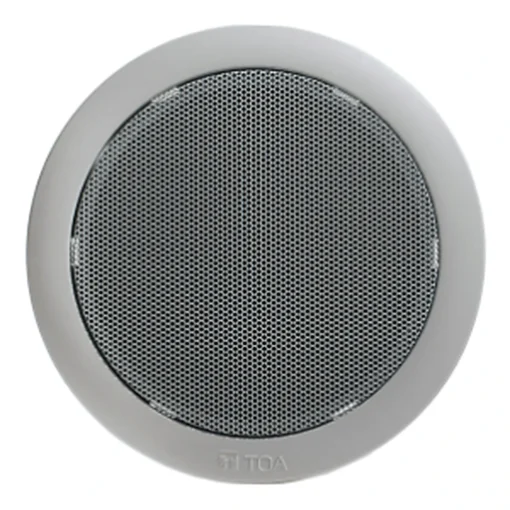

TOA PC-648R

฿610.00

Integrated with a resin panel and speaker frame, the PC-648R is the ceiling mount speaker with a metal attached.
It features spring clamp mechanism for easy speaker mounting to the ceiling.
The input impedance can be easily changed by changing the tap position of the transformer.
Brochure : pc-648r_pc-658r_pc-668r_pc-668rc-ceiling-speaker

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

หมวดหมู่: ลำโพง

Ceiling Mount Speaker 6W (5″) TOA PC-648R

TOA PC-648R

คุณลักษณะของ Ceiling Mount Speaker 6W (5″) TOA PC-648R

Rated Input	6 W (100 V line), 3 W (70 V line)
Rated Impedance	100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity	90 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise)
Frequency Response	100 Hz – 18 kHz (peak -20 dB)
Speaker Component	12 cm (5″) cone-type
Dimensions for Fixing Hole	Mounting hole: Φ145±5 mm (Φ5.71″±0.2″) Ceiling thickness: 5 – 25 mm (0.2″ – 0.98″)
Speaker Mounting Method	Spring clamp
Finish	Baffle: Polypropylene resin, white (RAL 9016 equivalent) Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
Dimensions	Φ168 × 77 (D) mm (Φ6.61″ × 3.03″)
Weight	470 g (1.04 lb)
Accessory	Paper pattern …1
