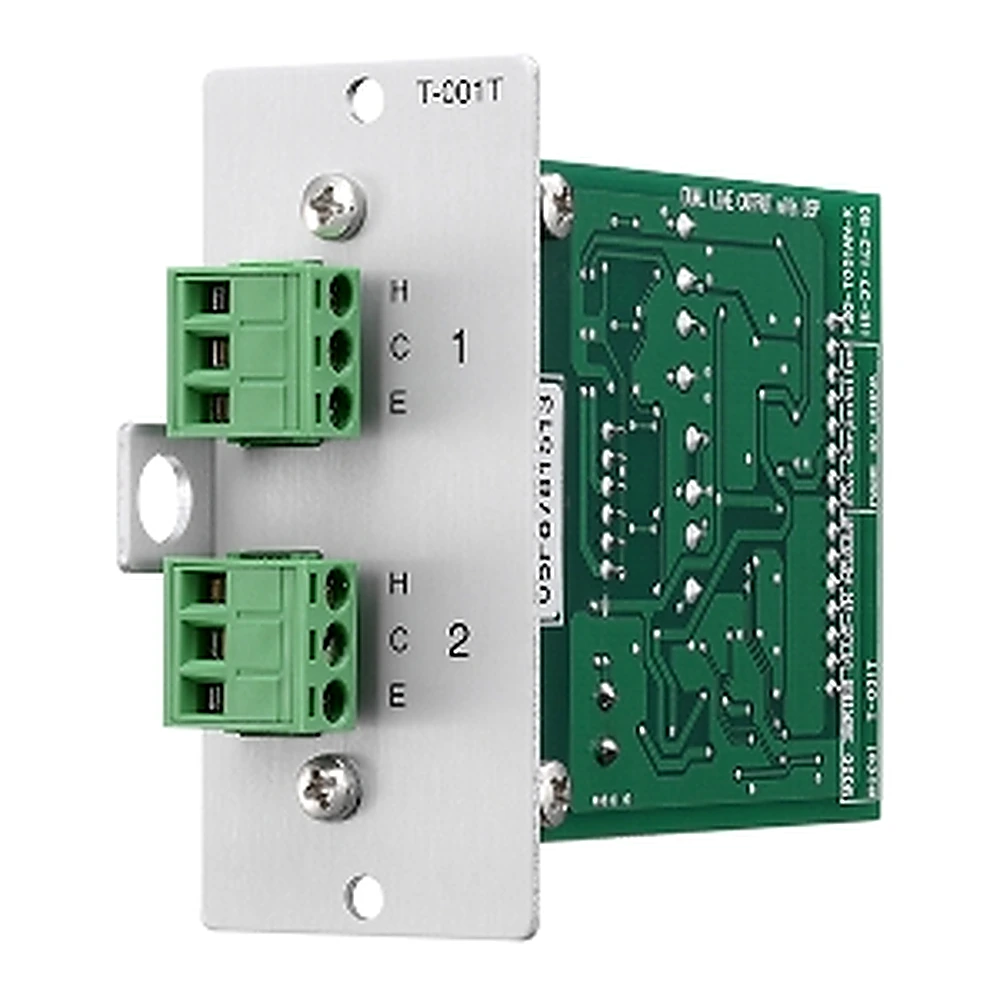

Dual Line Output Expansion Module with DSP (9000 Series) TOA T-001T
คุณลักษณะของ Dual Line Output Expansion Module with DSP (9000 Series) TOA T-001T
- Two Balanced Line Outputs
- Digital Signal Processing
•10-Band Parametric EQ
•Bass / Treble • Loudness
• High and Low Pass Filters • Compressor
• TOA speaker EQ presets - Removable Terminal Block
- Maximum three per chassis
spec of Dual Line Output Expansion Module with DSP (9000 Series) TOA T-001T
Power Source | +24 V DC, -24 V DC, +6 V DC |
---|---|
Current Consumption | 35 mA (at +24 V DC), 35 mA (at -24 V DC), 60 mA (at +6 V DC) |
Output | 2 channels, max. +20 dB* (at 10 kΩ load), 600 Ω, electronically-balanced, removable terminal block (3 pins) |
Frequency Response | 20 Hz – 20 kHz, +1, -3 dB |
Total Harmonic Distortion + N | 0.005 % (at 1 kHz, 20 Hz – 20 kHz BPF, 5 V output, 10 kΩ load) |
S/N Ratio | Over 73 dB (at 20 Hz – 20 kHz BPF) |
Residual Noise | Under -91 dB (at 20 Hz – 20 kHz BPF, VOL: -70 dB) |
Cross Talk | Over 87 dB (at 20 kHz) TOA T-001T |
D/A Converter | 24 bit DAC TOA T-001T |
Sampling Frequency | 48 kHz |
Tone Control | Bass: ±12 dB (at 100 Hz) Treble: %%p12 dB (at 10 kHz) |
Parametric Equalizer | 10 bands, Frequency: 20 Hz – 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 – 5 |
Speaker Equalizer | 10 (setup software has 30 TOA speaker presets) |
High-pass Filter | -12 dB/oct, Variable frequency range: 20 Hz – 20 kHz, 31 points |
Low-pass Filter | -12 dB/oct, Variable frequency range: 20 Hz – 20 kHz, 31 points |
Compressor | Depth: 1 – 5 |
Delay | 0 – 40 ms (1 ms step), maximum 40 ms (CH 1 + CH 2), mixer mode only |
Operating Temperature | -10 ℃ to +40 ℃ |
Finish | Panel: Aluminum, hair-line |
Dimensions | 35 (W) × 78 (H) × 91.5 (D) mm |
Weight | 82 g |
Accessory | Removable terminal plug (3 pins) …2, Module mounting screw …2 |
