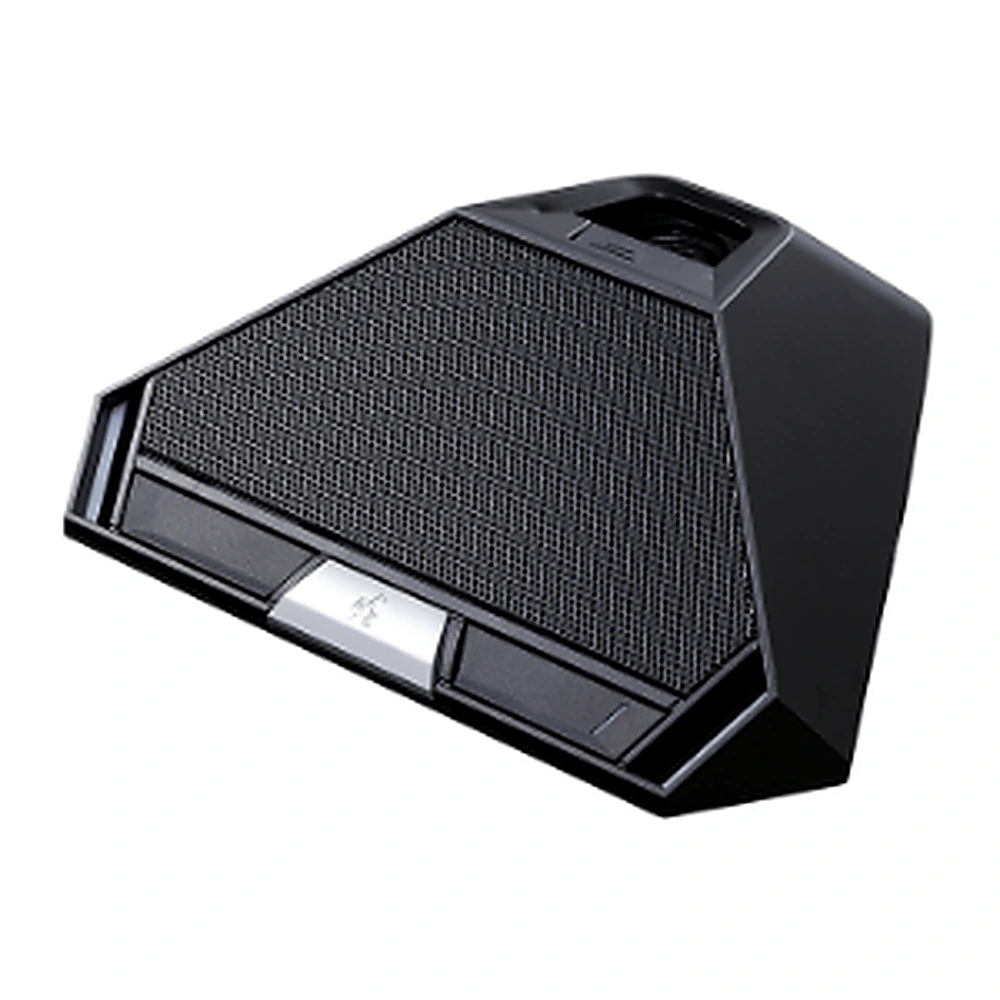

TOA TS-822

฿19,300.00

The TS-822 is a Delegate Unit of the Infrared Conference System. Since the system is cordless, it can be easily installed and removed. It can be operated on either the AD-0910 AC adapter or the BP-920, BP-900A lithium-ion battery.
It is equipped with a remaining battery indicator. Two types of indicated microphones are made available for the TS-822 as optional products: the TS-923, TS-903 standard type and the TS-923, TS-904 long type.

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

Delegate Unit TOA TS-822

TOA TS-822

คุณลักษณะของ Delegate Unit TOA TS-822

Infrared Emitter / Detector
Power Source	Supplied from optional lithium-ion battery or AC adapter
Current Consumption	Max. 390 mA
Wavelength	870 nm (AM: Brightness modulation)
Modulation Method	Frequency modulation
Carrier Frequency	Transmission: Audio channel 1: 7.35 MHz Audio channel 2: 8.10 MHz Audio channel 3: 8.55 MHz Audio channel 4: 9.15 MHz Control channel: 6.45 MHz Reception: Audio channel: 1.95 MHz
Covering Range	7 m (22.97 ft) radius

Input	Microphone terminal: XLR-4-31 type
Output	Monitor speaker: 8 Ω, 0.2 W Headphone: φ3.5 mm mini Jack (3P:monaural) × 2
LED Indicator	Speech indicator, Power indicator
Function	Monitor volume control, Headphone volume control
Battery Life	Approx. 10 hours (when the fully-charged BP-920 or BP-900A is used with “During speech” to “Standby” ratio of 1:2)
Operating Temperature	0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity	90 %RH or less (no condensation)
Finish	Case: PC resin, black Speaker Net: Steel plate, Black, matte finish, paint
Dimensions	205.7 (W) × 70.3 (H) × 164.2 (D) mm (8.1″ × 2.77″ × 6.46″)
Weight	525 g (1.16 lb)
Option	Microphone: TS-923, TS-903, TS-924, TS-904 (Select either one.) Lithium-ion Battery: BP-920, BP-900A AC adapter: AD-0910
