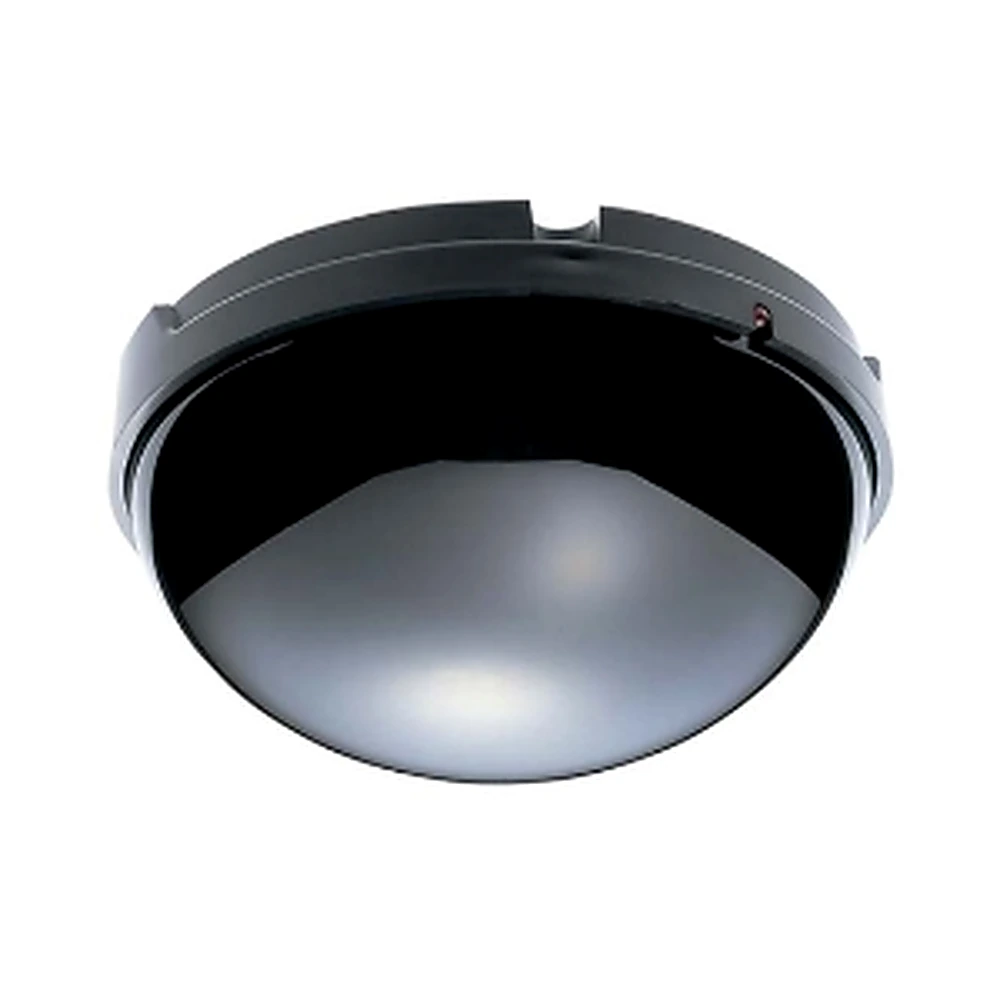

TOA TS-905

฿23,300.00

TOA TS-905 is an Infrared Transmitter/Receiver of the Infrared Conference system.
Since the system is cordless, it can be easily installed and removed.
Communications between the TS-905 and conference units are performed by means of infrared signals and the TS-905 permits transmit and receive with the Central unit.
It can be mounted not only to the ceiling and wall but on the microphone stand.

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

รหัสสินค้า: TS-905 หมวดหมู่: ไมค์ประชุม, เครื่องเสียง

Infrared Transmitter/Receiver (150°) TOA TS-905

TOA TS-905

คุณลักษณะของ Infrared Transmitter/Receiver (150°) TOA TS-905

Communication between the Central Unit and Chairman/Delegate Unit performed by means of infrared signals
Variety of mounting methods: ceiling, wall and microphone stand
Designed for low ceiling applications, e.g. ceiling height 2.5 – 4.5 m (8.2 – 14.76ft)
Catalog : Conference system TS-900 serie

Power Source	24 V DC (supplied from the Central unit)
Current Consumption	Max. 150 mA
Wavelength	870 nm (AM: Brightness modulation)
Modulation Method	Frequency modulation
Carrier Frequency	Transmission: Audio channel 1: 7.35 MHz Audio channel 2: 8.10 MHz Audio channel 3: 8.55 MHz Audio channel 4: 9.15 MHz Control channel: 6.45 MHz Reception: Base language channel: 1.95 MHz Translation language channel: 2.25 MHz
Acceptance Angle	Vertical: 150゜ (75゜ + 75゜), Horizontal: 360゜
Emission Angle	Vertical: 150゜ (75゜ + 75゜), Horizontal: 360゜
Communication Area	Approx. 6 – 7 m (19.69 – 22.97 ft) in radius from the point underneath the unit (Ceiling height: 2.5 – 4.5 m (8.2 – 14.76 ft))
Connection Terminal	BNC jack
LED Indicator	Power
Operating Temperature	0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity	90 %RH or less (no condensation)
Finish	Dome: PC resin, visible light cut filter Base: ABS resin, black
Dimensions	Ø120 × 71.3 (H) mm (4.72″ × 2.81″)
Weight	230 g (0.51 lb) (unit only)
Accessory	Mounting bracket…1, Stand mounting bracket…1, Stand mounting bracket attaching screw…3, Thread Adapter (U5/16 – NS5/8)…1
Option	Microphone stand (The mounting thread size must be U5/16 or NS5/8.)
