TOA WP-700

฿3,500.00

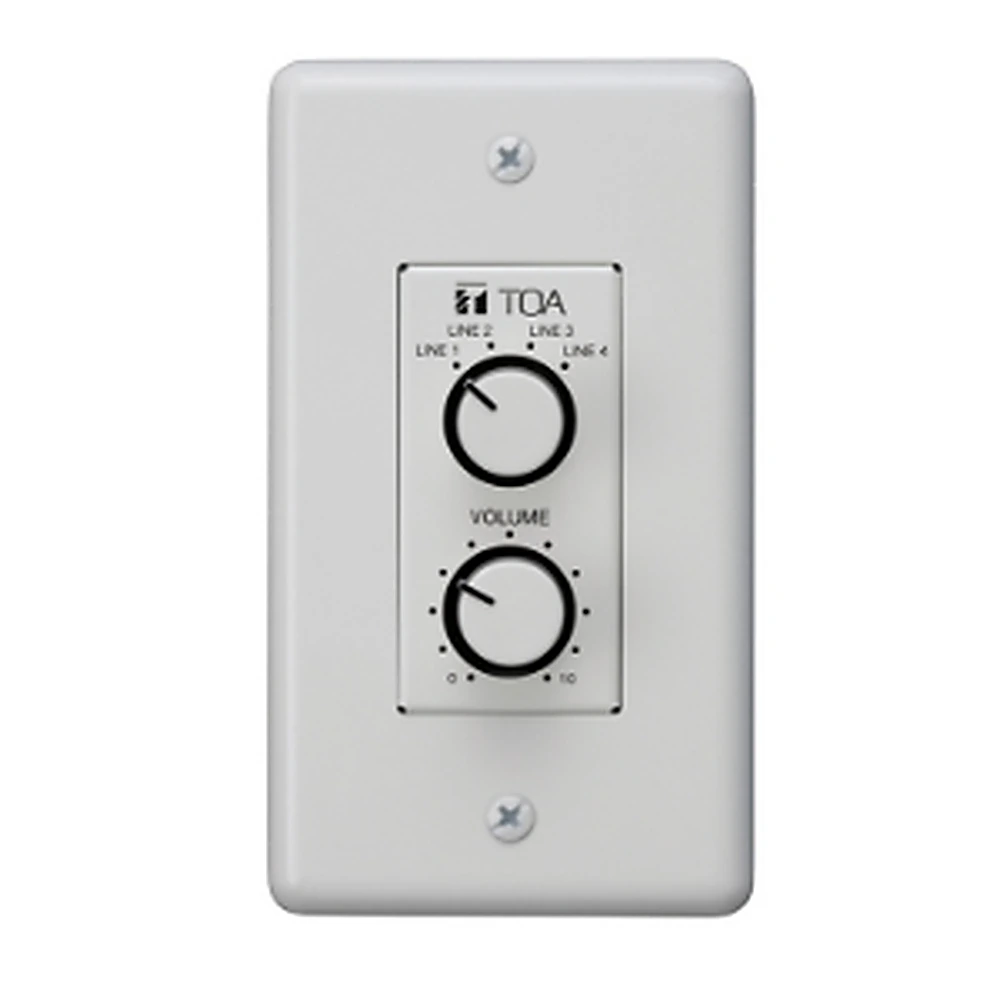

The WP-700 is a remote control switch/volume panel that is designed for use with the MA-725F (or MM-700F) amplifiers to enable remote selection of input source and adjusting volume level through Ethernet cable connection to the MA-725F (or MM-700F). It can be mounted in a 1-gang electrical box.
Brochure : TOA MA-725F and MM-700F

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

Remote Control Panel TOA WP-700

TOA WP-700

คุณลักษณะของ Remote Control Panel (MA-725F, MM-700F) TOA WP-700

Remote control switch/volume panel designed to be used with the MA-725F matrix amplifier
Provides remote input source selection and volume control over Ethernet
Decora-style plate mountable in a 1-gang electrical box

Applicable Cable			CAT5/5e/6 STP cable
Control Operation			Input select switch x 1, Volume control knob x 1
Terminal			RJ-45 connector
Operation Temperature			-10 °C to +40 °C (14 °F to 104 °F)
Finish			Surface treated steel plate, white paint (RAL9016)
Dimension			72 (W) x 128 (H) x 60 (D) mm (2.83″ x 5.04″ x 2.36″)
Weight			210 g (0.463 lb)
Accessory			Box Mounting Screw: No. 6-32UNC x 30 ….. 2 Panel Mounting Screw: No. 6-32UNC x 6 ….. 2
