TOA WS-5325M

฿16,200.00

ไมโครโฟนหนีบปกเสื้อ TOA WS-5325M ในชุดประกอบด้วย
- สายไมค์หนีบปกเสื้อ Lavalier microphone YP-M5310
- ตัว รับ – ส่ง Diversity wireless tuner WT-5810
- Wireless transmitter WM-5325
Brochure : TOA microphone wireless 5000series

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

Wireless Microphone Set (Lavalier) TOA WS-5325M

TOA WS-5325M

คุณลักษณะของ Wireless Microphone Set (Lavalier) TOA WS-5325M

Combination includes:
• WM-5325
• YP-M5310
• WT-5810

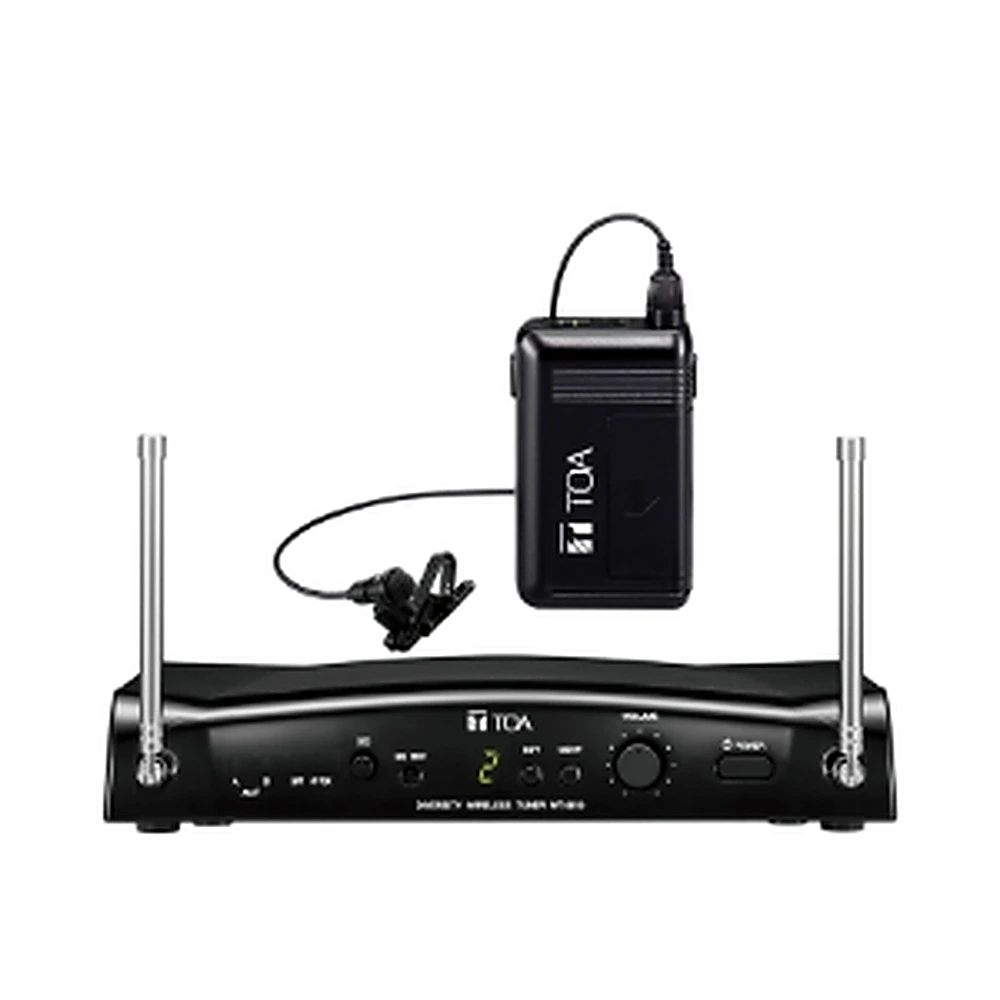

The WS-5325M wireless microphone system set includes a wireless transmitter WM-5325, a lavalier microphone YP-M5310, and a diversity wireless tuner WT-5810.
The WM-5325 wireless transmitter has been manufactured for use with a UHF system. With the PLL-synthesizer system, 64 different operating frequencies are made available.
A high output power ensures stable radio signal transmission. The YP-M5310 employs an electret condenser microphone element and has been designed for use in speech reinforcement applications.
The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

Product Composition	Wireless transmitter WM-5325 …1, Lavalier microphone YP-M5310 …1, Diversity wireless tuner WT-5810 …1
Frequency Range	576 – 865 MHz (*1), UHF
Tone Frequency	32.768 kHz
Operating Temperature	-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Accessory	AC adapter (*2) …1, Screw driver …1, Strage case …1, Neck strap …1

Wireless Transmitter

Modulation	Frequency modulation TOA WS-5325M
Channel Selectable	64 channels (the number of channels may differ from country to country)
RF Carrier Power	Less than 50 mW (Factory preset 10 mW ERP)
Oscillator	PLL synthesized
Maximum Input Level	-14 dB to -29 dB (*3) (Audio level control: Min. to Max.)
Battery	WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or AA alkaline dry cell battery
Battery Life	Approx. 13 h (when the WB-2000 rechargeable battery is used) Approx. 10 h (when the alkaline battery is used)
Indicator	Power/Battery lamps
Antenna	Built-in type
Finish	Resin, coating
Dimensions	62 (W) × 102.5 (H) × 23 (D) mm (2.44 × 4.04″ × 0.91″)
Weight	90 g (0.2 lb) (with battery)

Lavalier Microphone TOA WS-5325M

Microphone Element	Electret condenser type: Omnidirectional
Sensitivity	-64 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz)
Cord Length	1.3 m (4.27 ft)
Finish	Dark black
Weight	20 g (0.71 oz) (cable included)

(*3) 0 dB = 1 V

Diversity Wireless Tuner

Power Source	AC mains (supplied AC adapter must be used)
Power Consumption	130 mA (12 V DC)
Channel Selectable	16 channels
Receiving System	Double super-heterodyne
Diversity System	Space diversity
Mixing Output	MIC: -60 dB (3), 600 Ω, balanced, XLR-3-32 type connector LINE: -20 dB (3), 600 Ω, unbalanced, phone jack
Mixing Input	-20 dB (*3), 10 kΩ, unbalanced, phone jack
Antenna	Whip antenna
Receiving Sensitivity	90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
Squelch Sensitivity	16 – 40 dBμV variable
Squelch System	Using together of noise SQ, carrier SQ and tone SQ
Indicator	ANT A/B, Audio (peak), Battery alarm, Channel number
Channel Check	Usable frequencies scanning
Signal to Noise Ratio	104 dB or more (A-weight, unbalanced output)
Harmonic Distortion	1 % or less (typical)
Frequency Response	100 Hz – 15 kHz, ±3 dB
Finish	Resin, black
Dimensions	206 (W) × 40.6 (H) × 152.7 (D) mm (8.11 × 1.6″ × 6.01″) (excluding antenna)
Weight	590 g (1.3 lb)
