TOA ZM-9013
฿12,000.00

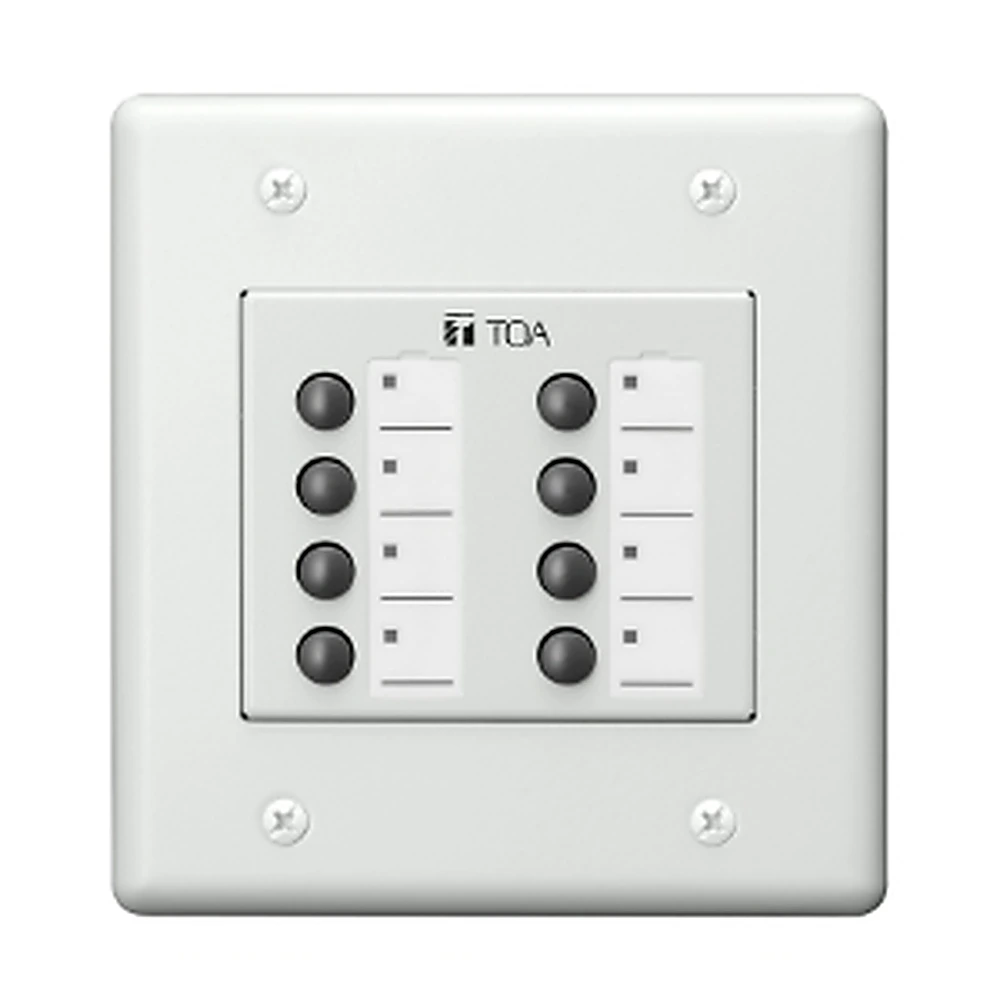

- Designed for exclusive use with the 9000M2 Series amplifier or M-864D, the ZM-9013 is a wall mounted remote control panel having 8 buttons. It is used in conjunction with the RC-001T Remote control module or M-864D.
It can be mounted in an American standard 2-gang electrical box in the wall.
āļŦāļĄāļēāļĒāđāļŦāļāļļ : āļāļĢāļļāļāļēāđāļāđāļāļŠāļīāļāļāđāļēāļāđāļāļāļāļģāļāļēāļĢāļŠāļąāđāļāļāļ·āđāļāļāļļāļāļāļĢāļąāđāļ āđāļāļĢāļēāļ°āļāļēāļāļĢāļēāļĒāļāļēāļĢāļāļēāļāđāļĄāđāļĄāļĩāļŠāļīāļāļāđāļēāđāļāļŠāļāđāļāļ
Remote Panel (9000 Series, M-864D) TOA ZM-9013
āļāļļāļāļĨāļąāļāļĐāļāļ°āļāļāļ Remote Panel (9000 Series, M-864D) TOA ZM-9013
-
Eight assignable buttons each with LED status indicator can control Xpoint settings (on/off, select), paging activation, scene and relay activation
-
Assignable ID rotary adjustment on box
- Brochure : Module matrix mixer M-9000 series
Spec Of Remote Panel (9000 Series, M-864D) TOA ZM-9013
| Power Source | 24 V DC (supplied from RC-001T or M-864D) |
|---|---|
| Current Consumption | 50 mA or less |
| Terminal | Removable terminal block (10 pins) |
| Connection Cable | Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP) |
| Operating Section | 8 function buttons |
| Indicator | 8 function indicators (green LEDs) |
| Operating Temperature | 0 â to +40 â (32 ãF to 104 ãF) |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish | Surface-treated steel plate, white, paint |
| Dimensions | 120 (W) Ã 127 (H) Ã 50.5 (D) mm (4.72″ Ã 5″ Ã 1.99″) |
| Weight | 374 g (0.82 lb) |
| Accessory | Box mounting screw (No.6-32UNC Ã 30) âĶ4, Box mounting screw (M4 Ã 30) âĶ4, Panel mounting screw âĶ4, Removable terminal plug (10 pins) âĶ1 |
āļŠāļāļāļāļēāļĄāđāļāļīāđāļĄāđāļāļīāļĄ
| āļāđāļģāļŦāļāļąāļ | 0.374 āļāļ. |
|---|---|
| āļāļāļēāļ | 5.05 × 12 × 12.7 āđāļāļāļāļīāđāļĄāļāļĢ |
