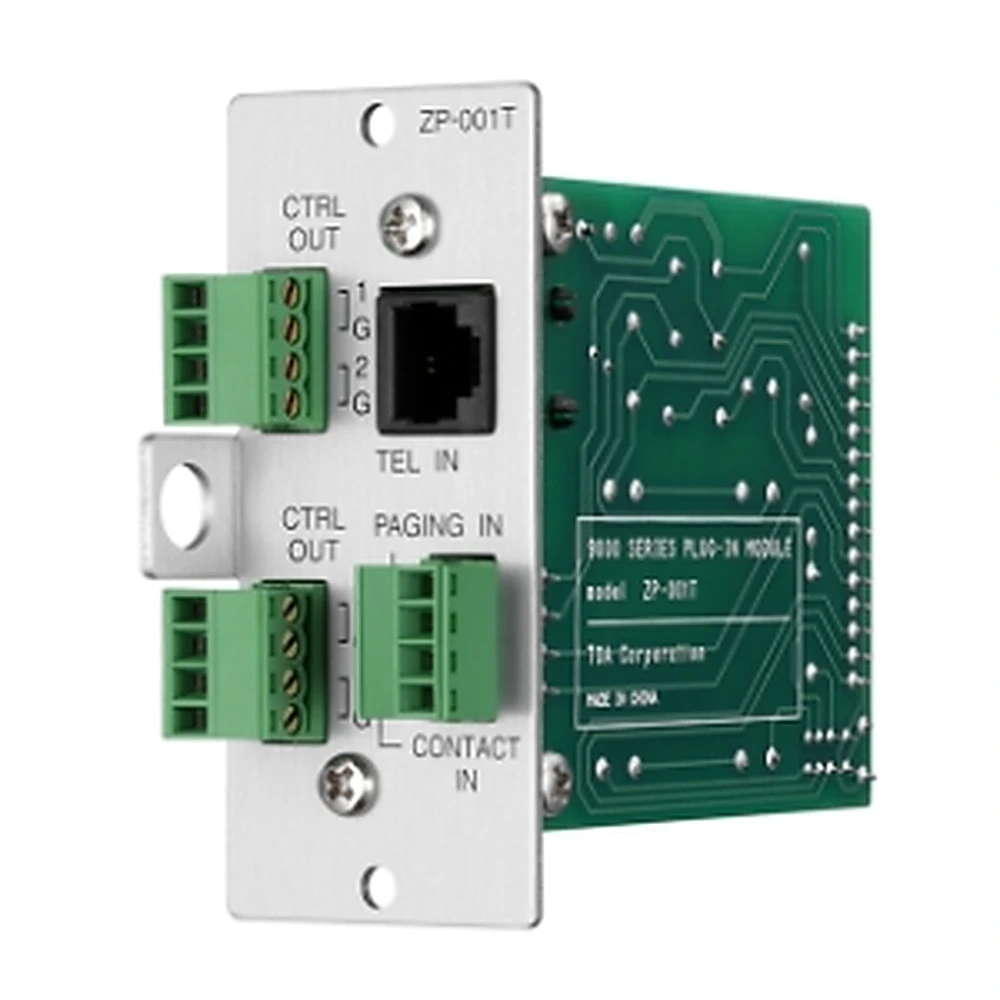

Telephone Zone Paging Module (9000 Series) TOA ZP-001T
คุณลักษณะของ Telephone Zone Paging Module (9000 Series) TOA ZP-001T
- Telephone Paging to up to eight zones
- Uses DTMF dialing to access outputs
- Dial up to eight output zones in one operation
- Analog extension or page port compatible
- Page port operation requires contact closure activation
- RJ-11 Telephone Jack and Removable Terminal Blocks
- Maximum one per chassis
- Brochure : TOA M-9000 series
Spec Of Telephone Zone Paging Module (9000 Series) TOA ZP-001T
Power Source | +24 V DC, +6 V DC |
---|---|
Current Consumption | 38 mA (at +24 V DC), 18 mA (at +6 V DC) |
Number of Line | 1 line |
Type of Selectable Signal | DTMF signal |
Signaling System | Loop-Start (or Ground-Start, selectable) |
TEL Line | 0 dB, 600 Ω, balanced, transformer-isolated, loop voltage: 24 V DC or more, which should be supplied from the PABX. RJ11 connector |
Paging Input | 0 dB, 600 Ω, balanced, transformer-isolated audio input, removable terminal block (4 pins) |
Control Input | 1 channel, no-voltage make contact, open voltage: 5 V DC, short-circuit current: 0.5 mA, removable terminal block (4 pins) |
Control Output | 4 channels, open collector output (isolated), withstand voltage: 35 V DC, control current: max. 50 mA, removable terminal block (4 pins) |
Operating Temperature | -10℃ to +40℃ |
Finish | Panel: Aluminum, hair-line |
Dimensions | 35 (W) × 78 (H) × 91.5 (D) mm |
Weight | 153 g |
Accessory | Removable terminal plug (4 pins) …3, Module mounting screw …2 |
