ระบบชุดบันทึกการเรียนการสอนพร้อมถ่ายทอดสด VDO lacture capture system

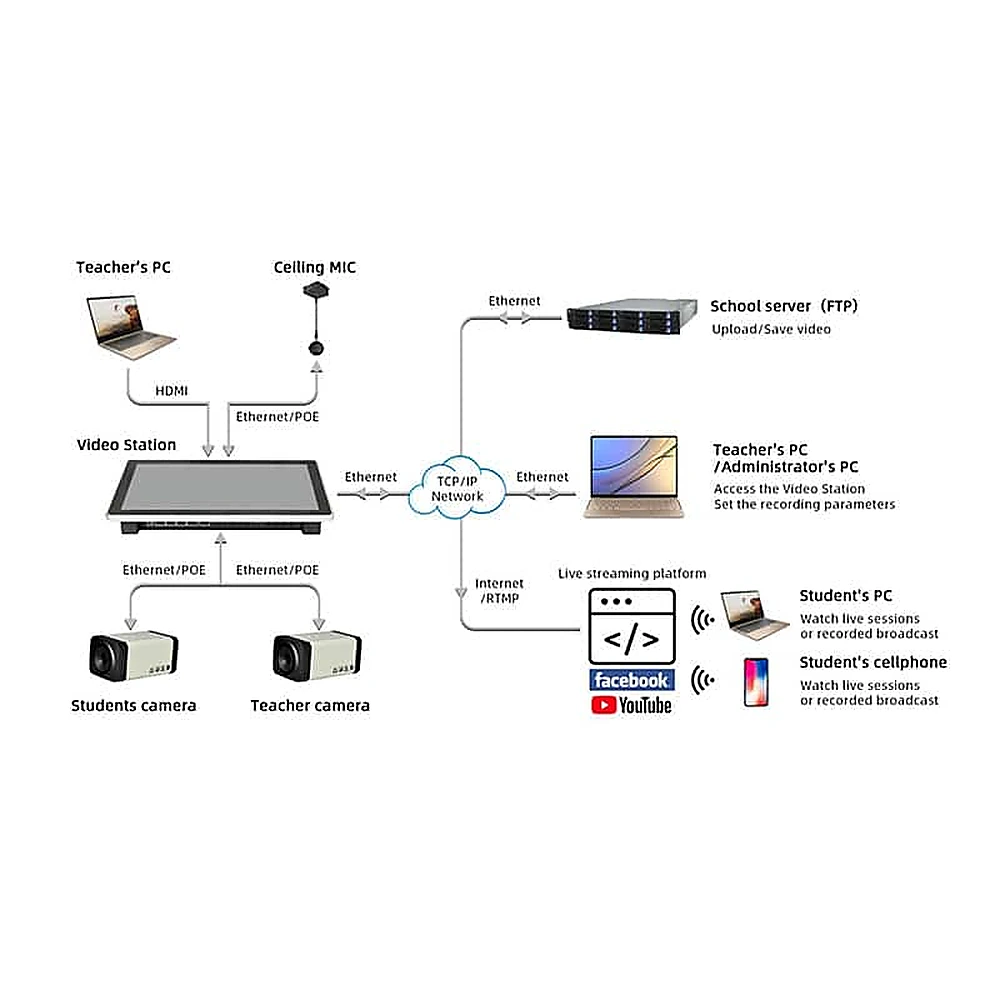

ชุดบันทึกการเรียนการสอนพร้อมถ่ายทอดสด VDO lacture capture system ใน 1 ชุด ประกอบด้วย
VDO station (ชุดควบคุมการทำงานของระบบ)
VDO statation : ชุดควบคุมการทำงาน และ สามารถเชื่อมต่อกล้อง ePTZ และ ไมโครโฟนได้ พร้อมทั้งยังสามารถส่ง live streaming ได้อีกด้วยในตัว ชุดบันทึกการเรียนการสอนพร้อมถ่ายทอดสด VDO lacture capture system
คุณสมบัติ
- การออกแบบที่ใช้งานได้หลากหลาย โดยใช้โปรเซสเซอร์ประสิทธิภาพสูงและใช้พลังงานต่ำ
- การรวบรวมเสียงและวิดีโอ หน้าจอสัมผัส การบันทึกและการออกอากาศ การถ่ายทอดสด การโต้ตอบระยะไกล และฟังก์ชันอื่นๆ ไว้ในอุปกรณ์เดียว
- ฟังก์ชันสัมผัสหน้าจอ หน้าจอสัมผัส LCD ความละเอียดสูง 13.3 นิ้วในตัวพร้อมวัสดุกระจกนิรภัยป้องกันรอยขีดข่วน
- อุปกรณ์มีโมดูลประมวลผลเสียงในตัว ไม่จำเป็นต้องมีระบบเสียงแยกต่างหาก และอุปกรณ์สามารถใช้งานฟังก์ชันต่างๆ เช่น การผสมเสียงอัตโนมัติ การตัดเสียงรบกวน และการตัดเสียงสะท้อน
- อินเทอร์เฟซเครือข่าย POE เป็นไปตามข้อกำหนด 3af/at จำเป็นต้องใช้สายเคเบิลเครือข่ายเพียงเส้นเดียวเพื่อให้ใช้งานแหล่งจ่ายไฟ POE การควบคุม และการส่งวิดีโอ ไม่ต้องใช้สายเคเบิลเพิ่มเติมเพื่อการติดตั้งอุปกรณ์ที่สะดวก
- อุปกรณ์มีเทคโนโลยีเครือข่ายพื้นที่เสมือนที่สามารถแยกอุปกรณ์ต่อพ่วง เช่น กล้อง ออกจากเครือข่ายภายนอก เพื่อปล่อยทรัพยากรเครือข่ายเพิ่มเติมและลดการแพร่กระจายของไวรัสผ่านเครือข่าย
- อุปกรณ์นี้มีความสามารถในการแปลงสัญญาณที่ทรงพลัง รองรับอินพุต 4K เอาท์พุต 4K และการบันทึก 4K
- รองรับการเข้าถึงกล้อง EPTZ ซึ่งสามารถถ่ายภาพแบบพาโนรามาและแบบระยะใกล้ได้ผ่านหน้าจอคู่
- อุปกรณ์รองรับการควบคุมและการจัดการแบบรวมศูนย์ การทำงานทั้งหมดรวมถึงการตรวจสอบสถานะอุปกรณ์สามารถทำได้ผ่านการจัดการและการควบคุมแบบรวมศูนย์บนแพลตฟอร์มบนเว็บเพื่อลดภาระงานของผู้ควบคุม
System structure | Embedded Linux system |
---|---|
Display screen | 13.3 inches, 1920*1080 resolution, capacitive touch, tempered protective glass; |
Video input | 1 x HDMI, 5 x network video stream (optional 2 x SDI input interface) |
Video output | 2 x HDMI |
Maximum input resolution | 3840*2160 |
Audio input | 1 x 3.5mm line-in interface, 1 x 3.5mm mic-in interface,
2 x MIC interface with 48V phantom power supply |
Audio output | 1 x 3.5mm line-out interface |
Video encoding | H.264 |
Audio encoding | AAC |
Video output format | MP4, TS |
Video encoding frame rate | 25~30fps |
Video bit rate | 256kbps~20480Kbps adjustable |
Audio bit rate | 32~192Kbps adjustable |
Data storage | Built-in>=1T storage, support USB export, support FTP upload |
Network | 5 x RJ45 network ports, 3 of which support POE |
Serial port | 1 x RS232 serial port |
USB interface | 3 x USB ports, one of which is CONSOLE |
Dimension | WxHxD (335mm*220.5mm*45.4mm) |
Software upgrade | Support online upgrade and local upgrade |
Power parameters | AC 220V |
กล้อง ePTZ Auto tracking
คุณสมบัติ
-
- กล้องใช้โปรเซสเซอร์ ARM ระดับอุตสาหกรรมซึ่งมีประสิทธิภาพสูงและใช้พลังงานต่ำ ออกแบบและพัฒนาโดยอิงตามระบบปฏิบัติการ Linux ฝังตัวที่เสถียร โครงสร้างฮาร์ดแวร์ทำจากวัสดุโลหะผสมอลูมิเนียม รองรับการติดตั้งบนผนังหรือเพดานอย่างปลอดภัย กล้องมีไมโครโฟนรอบทิศทางความไวสูงในตัว ขนาดเล็ก ติดตั้งและใช้งานได้ง่าย มีการรวบรวมและวิเคราะห์ภาพ UHD (ความละเอียดสูงพิเศษ) การรวบรวมเสียง การเข้ารหัสและการส่งสัญญาณเสียงและวิดีโอที่มีความหน่วงต่ำ
- 4K UHD (ความคมชัดสูงพิเศษ)
- เซ็นเซอร์ภาพ 840M พร้อมเลนส์กล้อง 4K UHD
- เอาต์พุตสตรีมคู่ตามค่าเริ่มต้น: ความละเอียด 1080p อัตราเฟรม 30fps
- การติดตามการสอนอัจฉริยะ
- อัลกอริทึมการจดจำและติดตามภาพในตัวช่วยให้ติดตามได้อย่างราบรื่น
- รองรับโหมดติดตามครูและโหมดติดตามนักเรียน
- เลนส์ UHD
- เลนส์ที่ไม่บิดเบือน
- เลนส์ระดับอุตสาหกรรมพร้อมมุมมองแนวนอน 40°/120°
- EPTZ
- รองรับ EPTZ (แพน เอียง และซูมอิเล็กทรอนิกส์)
- รองรับ PoE
- การเชื่อมต่อสายเคเบิลอีเทอร์เน็ต แหล่งจ่ายไฟแบบ PoE การควบคุม การส่งวิดีโอโดยใช้สายเคเบิลอีเทอร์เน็ตเส้นเดียว
- ไมโครโฟนรับส่งสัญญาณรอบทิศทางประสิทธิภาพสูงในตัว
ModelC2011 | |
---|---|
Sensor | 1/2.8”, Effective Pixel: 8.4MP |
Scanning Mode | Progressive |
Teacher’s View | Focal length: f=8mm, H FOV 40° |
Students’ View | Focal length: f=2.2mm, H FOV 120° |
Depth of Field | 1-10 meters (for students); 5-12 meters (for teacher) |
Shutter | 1/25s ~ 1/10000s |
White Balance | Auto |
Digital Noise Reduction | 3D Digital Noise Reduction |
Backlight Compensation | Support |
EPTZ | Support |
Digital Zoom | 4x |
PoE Power Supply | Support |
Auto-Tracking | Teacher Mode/ Student Mode |
Audio | Built-in microphone with 6m voice pickup range |
Network Features | |
Video Compression | H.264 ชุดบันทึกการเรียนการสอนพร้อมถ่ายทอดสด VDO lacture capture system |
Video Stream | Main stream, sub stream |
Panorama Stream Resolution | 1920x1080p@25; 1280 x720p@25 |
Close-up Stream Resolution | 1920x1080p@25; 1280 x720p@25 |
Video Bit Rate | 512Kbps ~ 10000Kbps |
Bit Rate Control | Fixed Bit Rate |
Frame Rate | 1~25fps |
Support protocols | HTTP、UDP、TCP、RTSP、WEBSOCKET |
Input/Output Interface | |
Network Interface | 1xRJ45: 10M/100M Ethernet Interface, Support PoE power supply |
USB Interface | TYPE-B;USB2.0 |
Audio Interface | Phoenix contact (differential analog signal) |
General Specifications | |
Input Voltage | DC 12V |
Operating Temperature | 0°C ~ 50°C |
Storage Temperature | -10°C ~ +50°C |
Power Consumption | <3.5W ชุดบันทึกการเรียนการสอนพร้อมถ่ายทอดสด VDO lacture capture system |
Size | 190.00mm(W) x 60.00mm(L) x46.00mm(H) |
ไมโครโฟน Ceiling
Model | A100 |
---|---|
Type | Condenser mic |
Directivity | Cardioid polar |
Sensitivity | -34dB±3dB(0dB=1V/Pa at 1KHz) |
Frequency response | 30Hz~18KHz |
Output impedance | 250Ω balanced output |
Power supply | 48V phantom power supply |
Bracket | Aluminum alloy extendable rod bracket |
ไมโครโฟน ติด เพดาน
- เป็นไมโครโฟนที่ติดอยู่บนเพดาน สามารถที่จะสัญญาณเสียงจากผู้พูดได้ โดยที่ไม่ต้องมีคนภายนอกมาควบคุมการทำงาน
- มีระยะการทำงานครอบคลุมไม่น้อยกว่า 6 เมตร มากกว่าไมโครโฟนระบบ unidirectional 3 เท่า
- สามารถส่งสัญญาณเสียงได้ดีกว่าด้วย Suspension ceiling features
- รองรับ AEC,AGC,ANS
The VDO lecture capture system refers to setups designed to record, stream, and store lectures or presentations for educational use. These systems are widely used in hybrid and remote learning environments to make learning more accessible. Here’s an overview of essential components and features for a VDO lecture capture system:
Key Components
- High-Definition Camera(s)
- PTZ (Pan-Tilt-Zoom) Cameras: PTZ cameras, like the Vaddio RoboSHOT or Sony SRG series, allow automated tracking of the lecturer as they move around the room. These cameras can be mounted on walls or ceilings to capture wide angles or focus on specific areas.
- Fixed Cameras: Fixed, high-definition cameras can capture a static view of the speaker and board, suitable for lecture halls where the instructor stays at a podium.
- Microphone System
- Lapel or Lavalier Microphones: Wireless microphones (like those from Sennheiser or Rode) are ideal for instructors who move around the room, ensuring consistent audio quality.
- Ceiling Array Microphones: Mounted microphones (e.g., Shure MXA910) pick up audio from various directions and are especially useful in larger lecture spaces.
- Boundary Microphones: Used to capture audio from participants and students, such as the Shure MXA310.
- Recording and Processing Device
- Media Server or Capture Device: Systems like the Epiphan Pearl or Matrox Monarch can record and stream content simultaneously, with multi-channel input to manage audio and video streams.
- Built-in Encoders: Some cameras have built-in encoders, which can stream directly without additional hardware.
- Lecture Capture Software
- Echo360, Panopto, or Kaltura: These platforms provide comprehensive software solutions for lecture recording, management, and sharing, and include features like searchable video, quizzes, and annotations.
- Automated Scheduling: Many systems support integration with scheduling software to automatically start and stop recording, reducing the need for manual setup.
- Interactive Display and Annotation Tools
- Digital Whiteboards: Tools like SMART Board or ViewSonic ViewBoard allow instructors to write and annotate in real-time. These annotations can be displayed on screen for both in-person and remote students.
- Document Camera: Document cameras (like Elmo or IPEVO) allow for real-time sharing of physical documents, books, or diagrams.
- Network and Storage Solutions
- Local Server Storage or Cloud Storage: Recorded lectures can be saved locally or directly to the cloud (e.g., AWS, Google Cloud) for easy access and management.
- High-Bandwidth Network Connection: A reliable internet connection ensures smooth live streaming without interruptions.
Additional Features
- Automatic Lecture Capture: Many systems now have AI-driven features that automatically capture lectures based on schedules or instructor presence.
- Real-Time Editing and Annotation: Many platforms allow editing during recording, such as adding text, timestamps, or markers for easy content navigation.
- Integration with Learning Management Systems (LMS): Platforms like Canvas, Moodle, or Blackboard can directly integrate with lecture capture systems to provide students with seamless access to recorded content.
- Closed Captioning: Real-time closed captioning or transcription for accessibility.
A VDO lecture capture system is an effective way to provide engaging, accessible content for students, making it a strong addition for modern educational institutions. Let me know if you need help with any specific setups or device suggestions.
