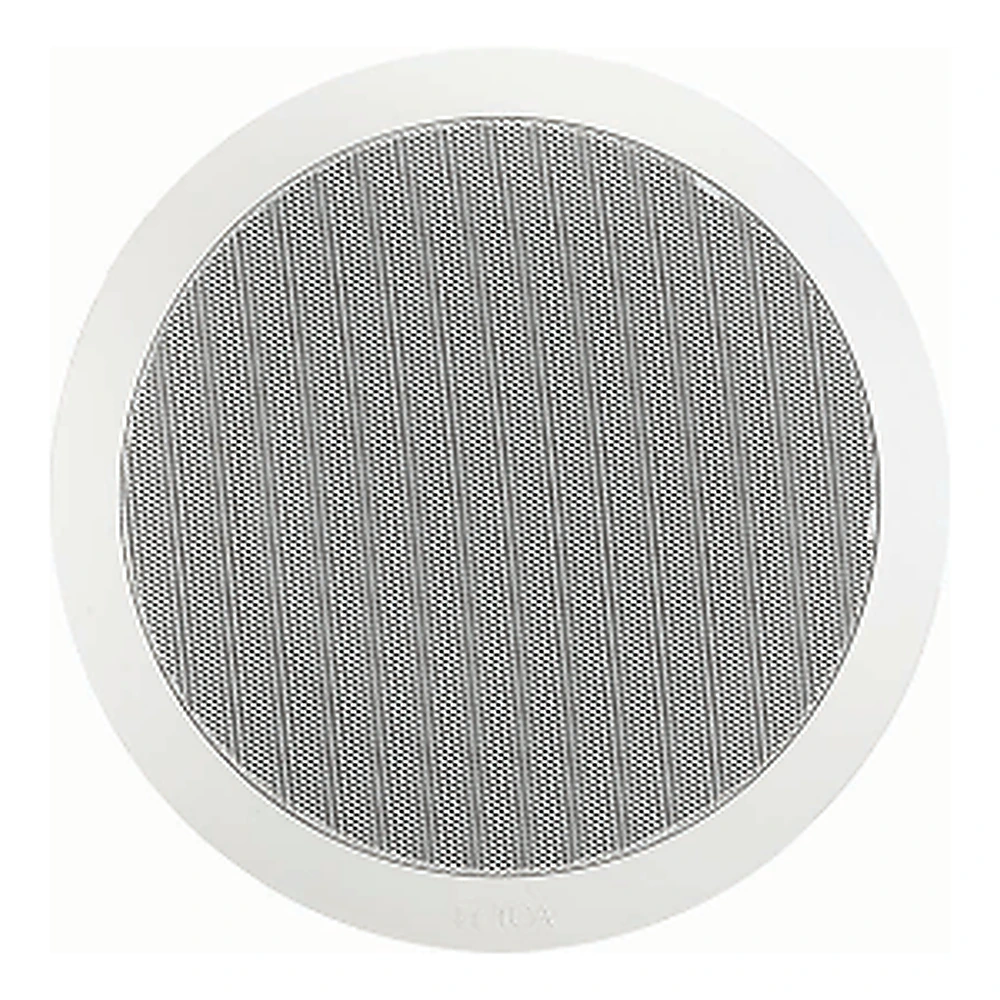

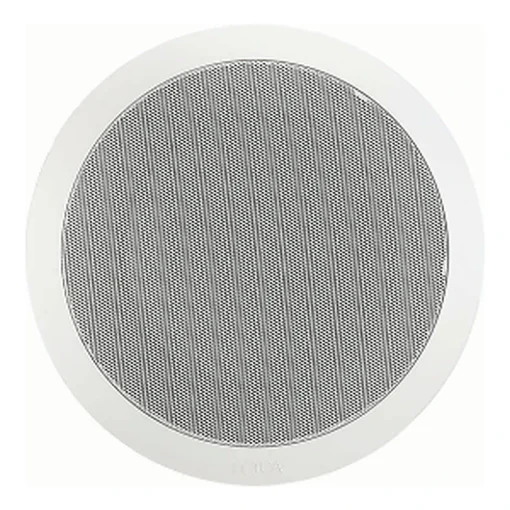

TOA PC-668R

฿1,500.00

The PC-668R is a Ceiling Mount Speaker with integrated resin panel and speaker frame.
It feature spring clamp mechanism for easy speaker mounting to ceiling.
The slim speaker frame design allows it to blend into the interior design of the application easily.
Input impedance can be easily adjusted by changing the tap of the transformer.
Brochure : pc-648r_pc-658r_pc-668r_pc-668rc-ceiling-speaker

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

หมวดหมู่: ลำโพง

Ceiling Mount Speaker 15W (8″) TOA PC-668R

TOA PC-668R

คุณลักษณะของ Ceiling Mount Speaker 15W (8″) TOA PC-668R

Rated Input	15 W (100 V, 70 V line)
Impedance Option	100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3kΩ (3 W) 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
Sensitivity	96 dB (Pink Noise 500 Hz – 5,000 Hz / 1W, 1m)
Frequency Response	65 Hz – 20,000 Hz (at 20 dB below peak SPL)
Speaker Component	20 cm (8″) double cone-type
Dimensions for Fixing Hole	Mounting hole: Φ250±5 mm (Φ9.84″±0.2″) Ceiling thickness: 5 – 25 mm (0.20″ – 1.98″)
Speaker Mounting Method	Spring clamp
Finish	Panel: Polypropylene resin, traffic white (RAL 9016 equivalent) Grille: Surface-treated steel plate net, traffic white (RAL 9016 equivalent), paint
Dimensions	Φ280 × 90 (D) mm (11.02″ × 3.54″)
Weight	0.96 kg (2.12 lb)
Accessory	Paper pattern …1
