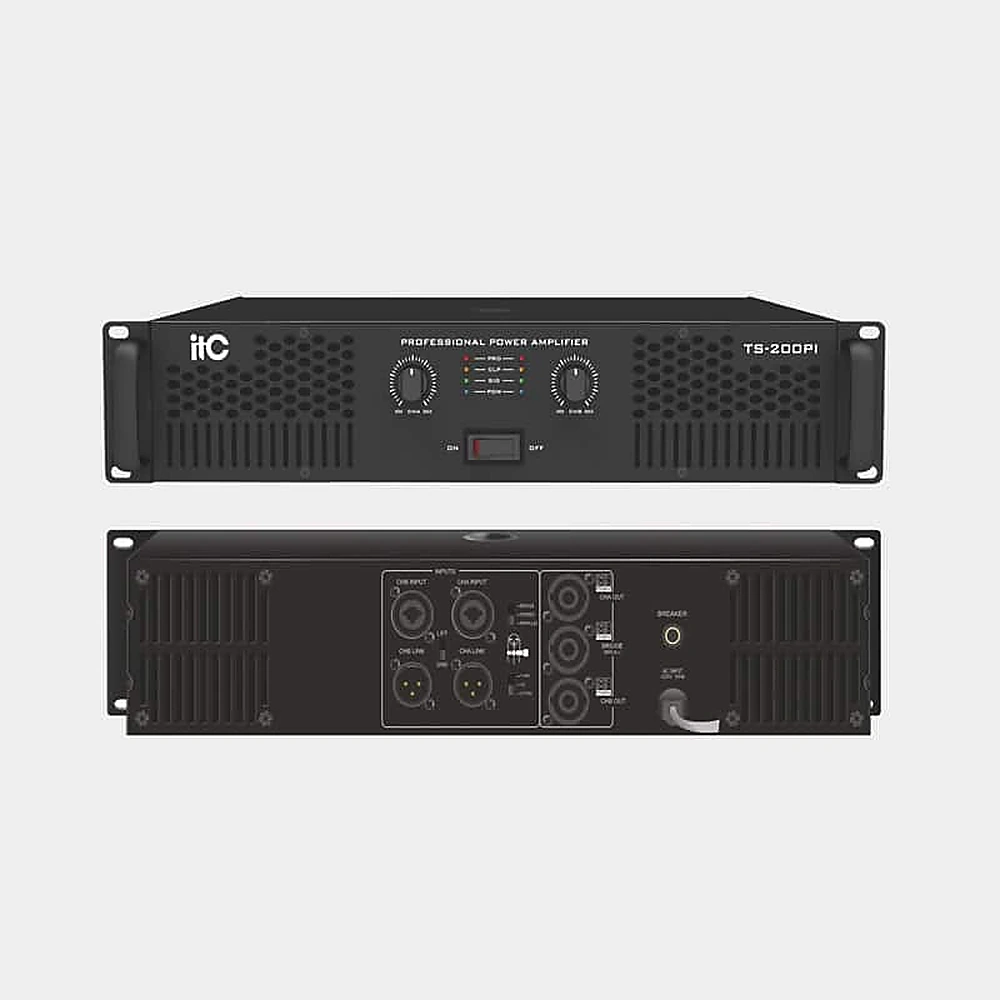

เครื่องขยายเสียง ITC TS-200PI
Features ITC TS-200PI
• Industrial modeling steel panel, professional design with durable surface,
- the panel can be folded wash by the air filter design, removable cleaning cooling vents.
• Start soft start to prevent power to the grid absorb a large current,
- interference with other electrical equipment.
• Intelligent control forced cooling designs, low fan noise, and high thermal efficiency.
• Two-channel amplifier input sensitivity can select third gear,
- easy to accept wide input amplitude range of the signal source.
• Complete and reliable security protection measures and working status indicator
- (short circuit, overload, DC and overheating protection, transformer overheating protection),
allow users to be assured use.
• Intelligent clipping limiter controls the power module and the speaker system works in a safe range.
• Standard XLR + TRS1 / 4 “composite input interface,
simple interface is more convenient to meet different user needs.
• High-quality large-capacity transformer and a low resistance electrolytic filter,
ensure a large dynamic operating handle it.
• Adapting to different situations, choose the optional stereo or bridged mode.
• The input pin to ground and suspension seat ground control.
Specifications ITC TS-200PI
|Output Power (20-20KHz/THD≤1%)||TS-200PI||TS-350PI|
|Stereo / Parallel 8Ω X 2||200W x 2||350W x 2|
|Stereo / Parallel 4Ω X 2||300W x 2||530W x 2|
|Connecting Plug||XLR, TRS interface|
|Voltage Gain (@1KHz)||32dB||34.4dB|
|Input Impedance||10KΩunbalanced, 20KΩbalanced|
|Frequency Response (@ 1W Power )||20-20KHz/±1dB|
|S/N Ratio (A-weighted)||≥90dB|
|Damping Coefficient (@ 1KHz)||≥200@ 8Ω|
|Protection Mode||Overcurrent protection, DC protection, short circuit protection|
|Indicator Light||Power, protection, distortion|
|Cooling Mode||Fan cooling|
|Power Supply||~ 220-240V 50/60Hz|
|Maximum Power Consumption||900W||1600W|
|Dimensions (L x W x H)||483 x 394 x 88mm|
