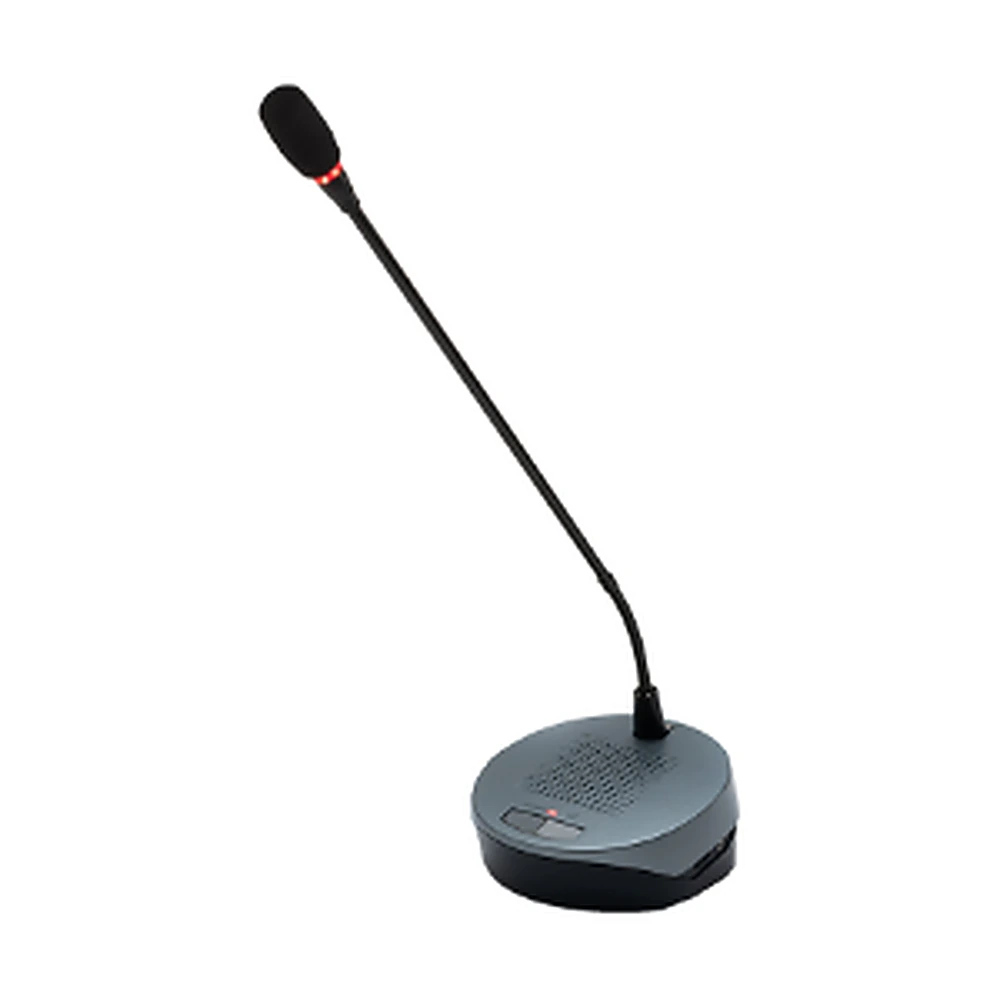

Chairman Unit (Set) TOA TS-691L
คุณลักษณะของ Chairman Unit (Set) TOA TS-691L
- ชุดประธาน TS -681 L มีสวิตซ์ตัดการสนทนาของผู้เข้าร่วมประชุม
- มีช่องเสียบหูฟัง และโวลุ่มปรับประดับเสียงลำโพง
- มาพร้อมก้านไมค์ยาว 518mm (ถอดออกได้) และสายต่อพ่วงชุดประชุม ยาว 2m
- Brochure : Control conference system TOA TS-690 AS
Spec Of Chairman Unit (Set) TOA TS-691L
Power Source | 36 V DC, 30 mA or less (supplied from the Central Unit TS-690) |
---|---|
Output | Headphone/Recording: Ø 3.5 mm, mini jack (3P: monaural) Internal speaker: 130 Ω, 200 mW |
Control | Speech: Microphone, speaker on-off control by speech button Priority: Microphone, speaker on-off, other microphone cut-off, and single-tone chime activation by priority button Volume control: Headphone/Recording and internal speaker volume adjustable |
Microphone Unit (Accessory) |
Electret Condenser Microphone Directivity: Unidirectional Impedance: 1.8kΩ Sensitivity: -37dB (1kHz 0dB = 1V/Pa) Frequency Response: 100Hz – 13 kHz Length: 518mm Weight: 105g (0.23 lb) |
Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
Operating Humidity | 90 %RH or less (no condensation) |
Finish | Upper case: ABS resin, metallic grey, paint Lower case: ABS resin, black |
Dimensions | 145.3 (W) × 70.7 (H) × 150.5 (D) mm (5.72″ × 2.78″ × 5.93″) (Excluding Microphone Unit) |
Weight | 800 g (1.76 lb) (Excluding Microphone Unit) |
Accessory | Long Microphone Unit x 1 |
Option | Extension cord: YR-780-2M, YR-780-10M |
