TOA FV-248PA-AS

Name: TOA FV-248PA-AS Power Amp 480 watt | Alleducare
Price: 39100.00 THB
Availability: InStock

฿39,100.00

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

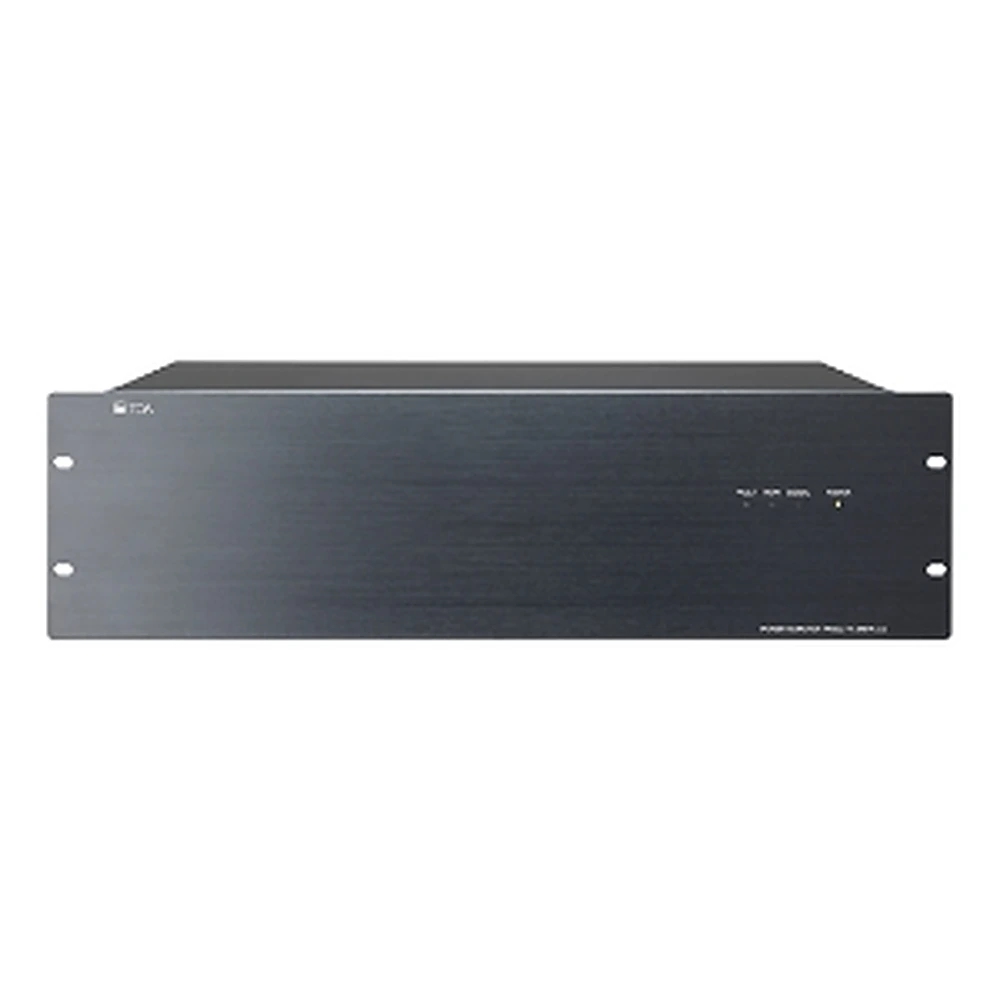

Power Amplifier 480W TOA FV-248PA-AS

TOA FV-248PA-AS

คุณลักษณะของ Power Amplifier 480W TOA FV-248PA-AS

Power Source	AC: 220 – 230 V AC, 50/60 Hz DC: 24 V DC (operating range: 19.5 – 27 V) M4 screw terminal, distance between barriers: 12mm
Power Consumption	AC at rated output: 1110 W (condition: AC230V) AC at no signal: 44 W IEC60065: 480 W
Current Consumption	DC at rated output: 30 A (condition: DC27V) DC at no signal: 1.0 A IEC60065: 10.9 A
Rated Output	480 W
Input	2 inputs, 0 dB*, 20 kΩ, balanced, removable terminal plug (3 pins) Input module VP-200VX (Option)
Output Impedance	10 Ω (70 V), 21 Ω (100 V)
Speaker Output	M4 screw terminal, distance between barriers : 12 mm
Control Output	Fault ouput : Make : Normal, Break : Error or Power Off
S/N Ratio	Over 60 dB
Total Harmonic Distortion	Under 1% (1 kHz, 1/3 rated output)
Frequency Response	80 Hz – 15 kHz, ±3 dB, 1 kHz
Ventilation	Fan cooling
LED Indicator	Power (Green), Signal (Green), Peak (Red), Fault (Red)
Operating Temperature	0 ℃ to +40 ℃
Operating Humidity	Under 90% RH (no condensation)
Finish	Panel: Aluminum, black, alumite
Dimensions	482 (W) × 132 (H) × 333.2 (D) mm
Weight	18.5 kg
Accessory	Removable terminal plug (3 pins) x 3, Instruction manual x 1
Option	VP-200VX input module
