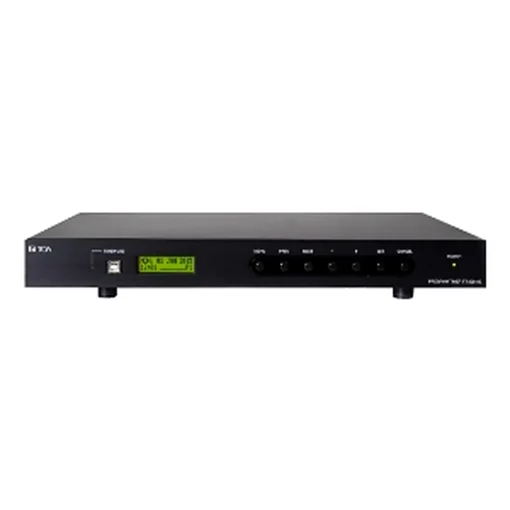

TOA TT-208-AS

฿29,200.00

The TT-208 is a weekly program timer that comes with 8 channels out contact switch and 1 output contact with westminister chime audio.
Can be use with an optional rack-mount bracket to mount on an EIA standard equipment rack, occupying 1 U size).
Brochure : TOA TT-208-AS program timer

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

Program Timer TOA TT-208-AS

TOA TT-208-AS

คุณลักษณะของ Program Timer TOA TT-208-AS

Power Source	220 – 230 V AC, 50/60 Hz
Power Consumption	10 W
Audio Output	Westminster Chime, Level : 0 dB, 600
Frequency Response	20 Hz – 20 kHz
Synchronise Time	Send out pulse per 1 minute
Control Output	8 channels contact switch (NO), 1 output contact switch (NO)
Display	Power Indicator : Green, LCD Character : Back light green, USB Indicator PC Link : Orange
Operating Temperature	0 ℃ to +40 ℃
Operating Humidity	Under 90% RH (no condensation)
Color	Front Panel : Aluminum, Black, Alumite Case : SECC plate, black, paint
Dimensions	420 (W) × 59 (H) × 342 (D) mm (16.54 × 2.32″ × 13.46″)”
Weight	3.2 kg (7.05 lb)
Option	Rack-mounting bracket: MB-15B
Accessories	Power cable (YA-301) x 1, Removable terminal plug (2 pin) x 12, CD Rom (Software & Manual) x 1
