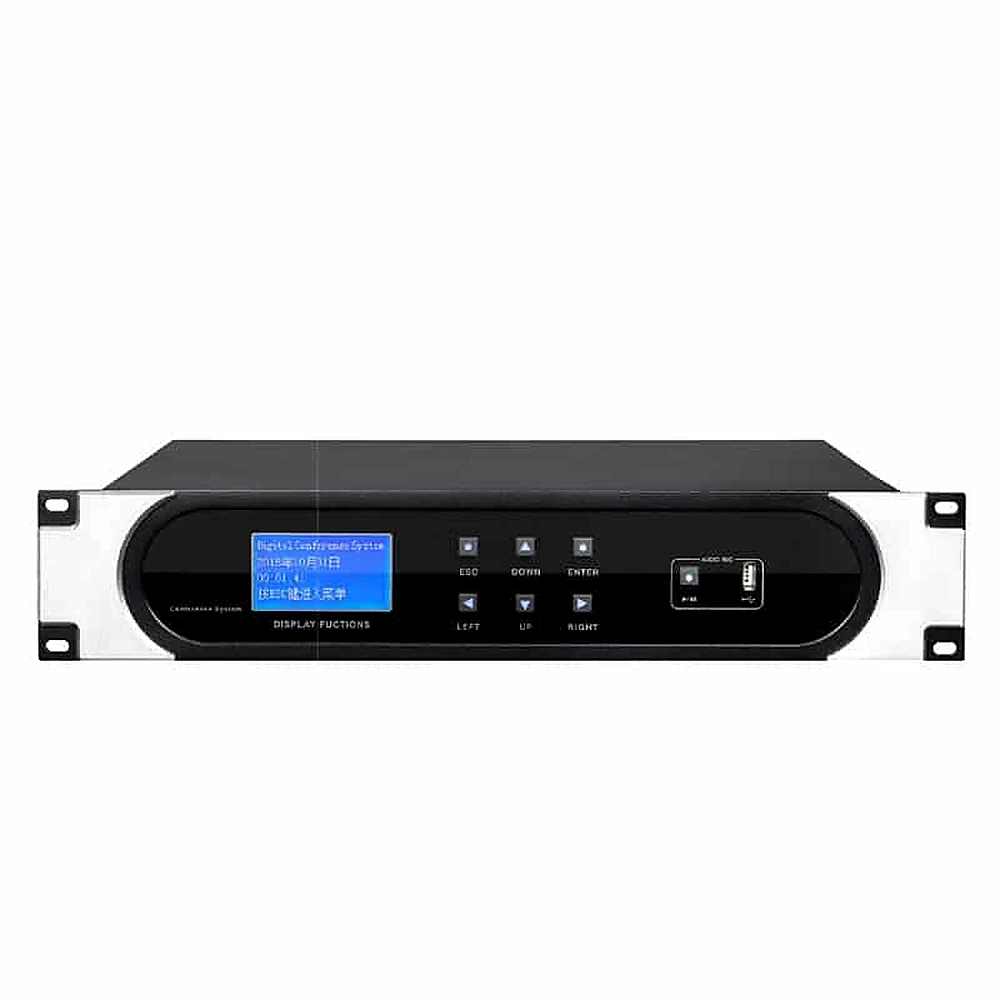

ชุดควบคุมการประชุมแบบดิจิตอล CMX CS-900
Features:
- ชุดควบคุมการประชุมแบบดิจิตอล CMX CS-900 (Digital audio conference system of discussion function)
- Digital conference system through RJ45 port and CAT6 cable.
- Conference system controller with USB on front panel
- Ideal use in board room, meeting room, conference room in hotel, office and government.
- The capacity of system is 100 units and max
- Voting, simultaneous interpretation and auto video tracking function are optional functions.
- Support multiple discussion modes: free, first in first out, and limited discussion.
- Support free discussion quantity of 1, 2, 3 and 5.
- With one balanced XLR output, one REC in/out
- Two way communication system by CAT6 cable/RJ45 port or 8 wire ca
- Two RJ45 ports for extension controller, four RJ45 ports for microphone connection.
- Two 8 PIN ports for extension controller, four 8 PIN ports
- Built-in DSP & feedback suppressor & LF/H
- With 2.8” LCD display for system program and monitoring
- Up to international conference equipment, electrical certification standards of IEC 60914.
- CS-900V is controller with auto-video tracking function support 6
Specifications:
Model | CS-900 | |
Description | Digital Conference System Controller | |
Function | Discussion & Recording | |
Optional Function | Voting, simultaneous interpretation and auto | |
System Capacity | 100 units and | |
Connection Way | Hand in hand | |
Power Supply | AC220V or 115V, 50 | |
Power Consumption | 30W | |
THD | <0.05% | |
S/N Ratio | >96dB | |
Frequency Response | 20Hz-20KHz | |
Connector | Two RJ45 port Two 8 PIN ports for extension controller, four 8 PIN ports for microphone |
|
Output | With one balanced XLR | |
Dimension | 488(W)×360(D)×84(H)mm | |
Weight |
|
