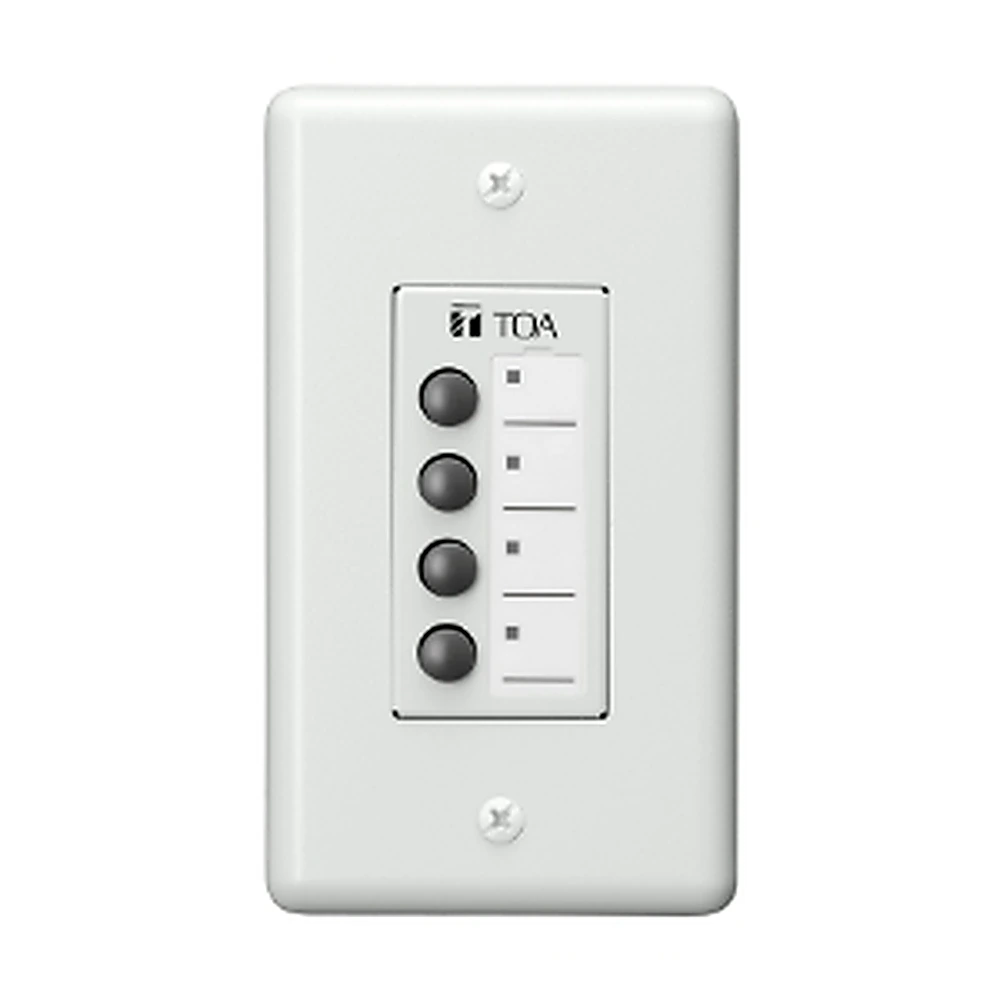

TOA ZM-9011

฿10,700.00

Designed for exclusive use with the 9000M2 Series amplifier or M-864D, the ZM-9011 is a wall mounted remote control panel having 4 buttons. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 1-gang electrical box in the wall.

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

TOA ZM-9011 Remote Panel (9000 Series, M-864D)

TOA ZM-9011

คุณลักษณะของ Remote Panel (9000 Series, M-864D) TOA ZM-9011

Four assignable buttons each with LED status indicator can control Xpoint settings
(on/off, select), paging activation, scene and relay activation
Assignable ID rotary adjustment on box
Brochure : Module matrix mixer M-9000 series

Power Source	24 V DC (supplied from RC-001T or M-864D)
Current Consumption	50 mA or less
Terminal	Removable terminal block (10 pins)
Connection Cable	Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP)
Operating Section	4 function buttons
Indicator	4 function indicators (green LEDs)
Operating Temperature	0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity	35 % to 80 %RH (no condensation)
Finish	Surface-treated steel plate, white, paint
Dimensions	72 (W) × 127 (H) × 49.5 (D) mm (2.83″ × 5″ × 1.95″)
Weight	208 g (0.46 lb)
Accessory	Box mounting screw (No.6-32UNC × 30) …2, Box mounting screw (M4 × 30) …2, Panel mounting screw …2, Removable terminal plug (10 pins) …1
