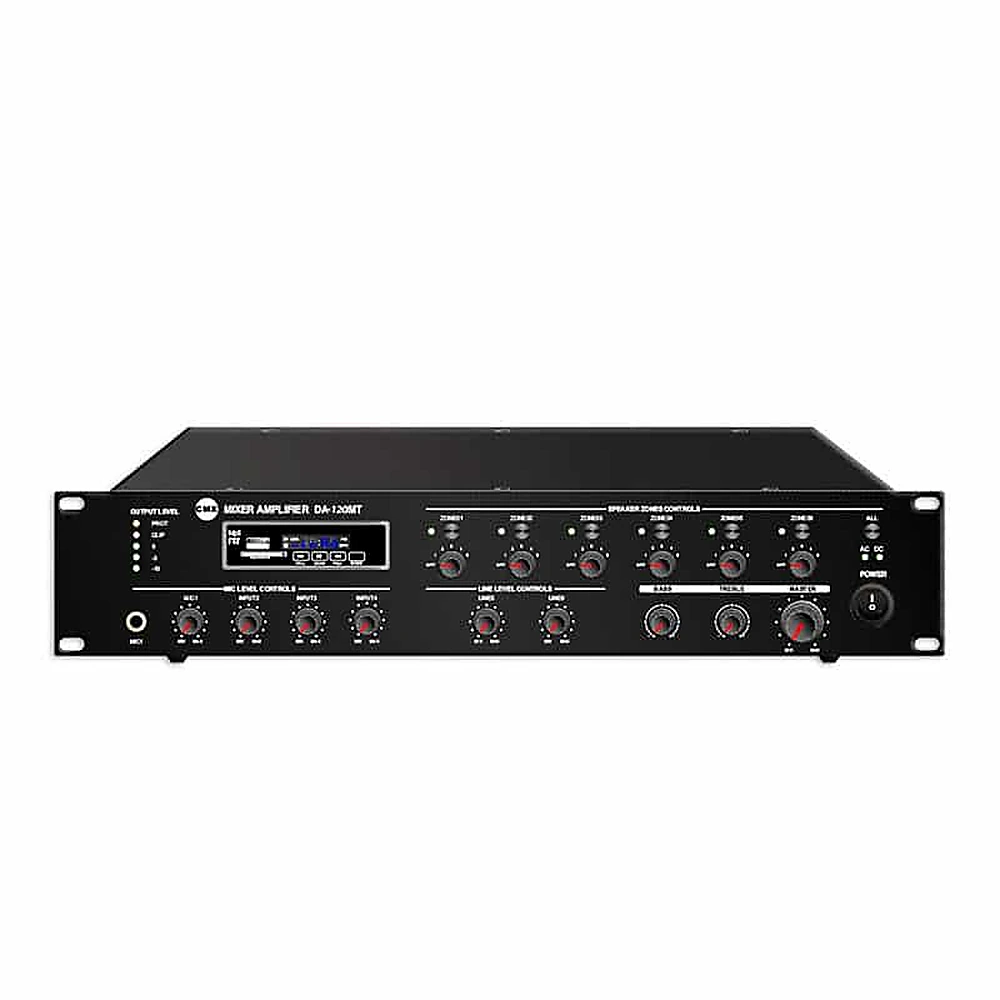

เครื่องขยายเสียง CMX DA-120MT
Description เครื่องขยายเสียง CMX DA-120MT :
- The PA 6 Zone Mixer Amplifier with MP3 and FM tuner, its rated power output 120W.
- it is ideal for school, super market, bank, hotel BGM and speech use. It is all in one solution with two sources, pre
- amplifier and mixer power amplifier into one 19” 2U height unit, which is economy but of high reliable performance.
- It integrates 2 audio sources into a mixer amplifier, plus Mic1(6.3mm) and Mic/Line input 2-4 (XLR), two line inputs,
- one EMC input and one RS45 input for 6 zone remote paging microphone. Mic1 VOX with highest priority except EMC
- input. One USB and one SD slots on front provide easy access and operation for installer and end-user.
- The amplifier is design with complete protection of overload, short circuit and high temp to avoid any damage.
- These amplifiers are suitable for applications in bank, mosque, school, hotel, restaurant, theme centers and shopping center.
- Public address (PA) 6 zone commercial mixer power amplifier.
- 19” rack mount amplifier of 2U height.
- Rated outputs of 120W.
- 6 zone speaker outputs of 100V or 70V.
- Six zone speaker outputs with independent volume control.
- Built-in MP3 player by USB & SD and FM tuner.
- Four microphone inputs, Mic1(6.3mm) and Mic/Line input 2-4 (XLR).
- Line 1-2 inputs on rear panel by RCA.
- EMC input on rear panel with highest priority by RCA.
- One amplifier capacity of 6 remote paging microphones DA-500RM up to 300 meters.
- Microphone1 of VOX features of highest input priority except EMC input.
- Volume control for Mic1-4 and line 1-2, bass & treble and zone volume control on front panel.
- AC and DC Power, protection, clip six zone status indicators and output level meters.
- Overload, short circuit and high temp protection.
- AC 230V and DC24V operation system.
|PA 6 Zone Mixer Amplifier with Mp3 & Tuner|
|Rated Power Output|
|70V, 100V and 4-16Ω|
|Mic1-4: 2.5mV, Line1-2: 250mV; EMC: 250mV|
|High temp, short circuit, clip & overload protection|
|AC230V or AC110V, 50-60Hz|
