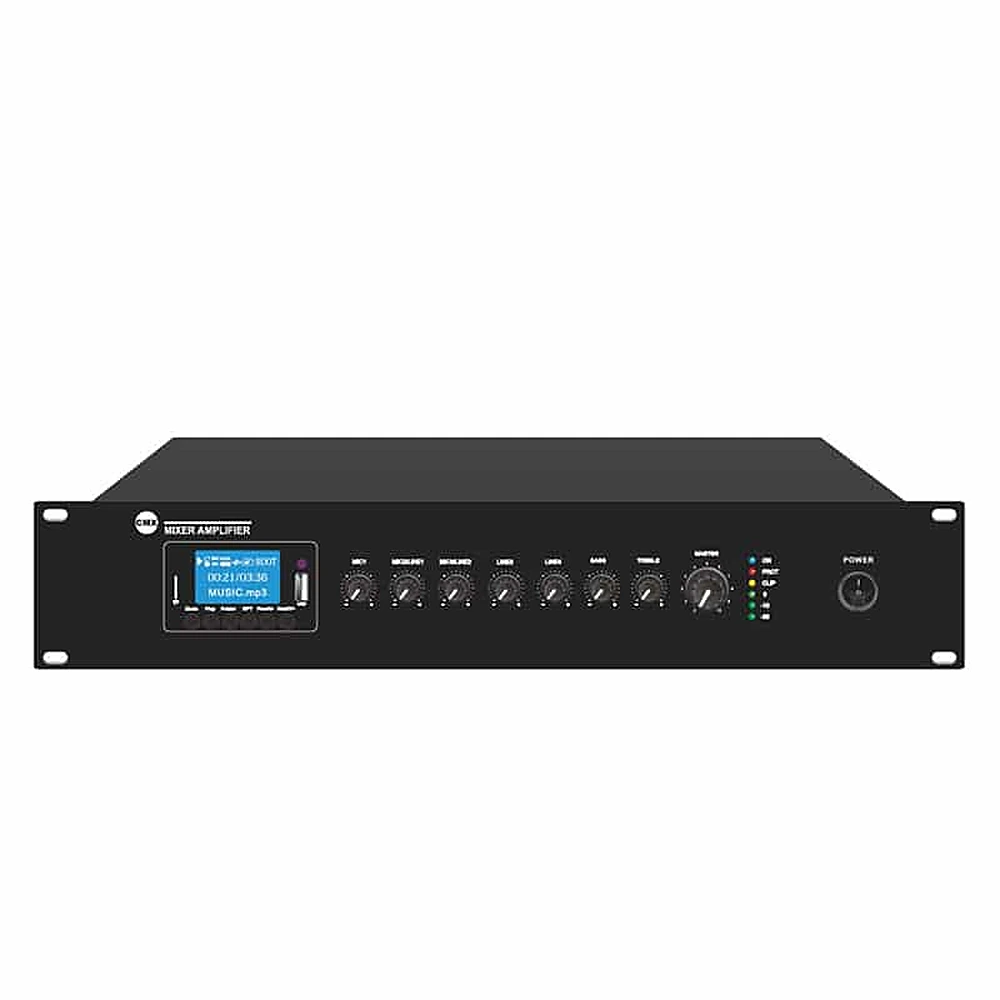

เครื่องขยายเสียง CMX EA-500A
Features เครื่องขยายเสียง CMX EA-500A :
- Desktop or 19” rack mount public address amplifier
- PA amplifier with Mp3 player, FM radio & blue tooth
- Rate power output at 60W, 120W, 240W, 350W to 500W
- Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms
- Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
- LED indicators for power, clip, protect and signal
- Mic1-3 and line 1-2 and telephone input. Mic1 of balanced XLR input with phantom power on rear panel. Mic2-3 microphone or line switchable unbalanced 6.3mm phone jack input. Line 1-2 input of RCA input and one RCA line output. Telephone input with VOX priority and MOH (Music on Hold).
- Volume control for Mic1-3, line1-2, Mp3/FM, bass/treble and master
- With short-circuit, clip, overload and high temp protection
- AC 110 or 220V & 24V DC both operation system
- With 19” rack mount ears
Specification:
Model | EA-60A | EA-120A | EA-240A | EA-240A | EA-500A |
Description | PA Amplifier with USB/SD & FM & Blue Tooth | ||||
Rated Power Output | 60W | 120W | 240W | 350W | 500W |
Speaker Outputs | 100V or 70V & 4Ohms-8 Ohms-16 Ohms | ||||
Connector | Mic1 input by balanced XLR with phantom power
Input2-3 inputs Mic/Line switchable unbalanced 6.3mm phone jack Line1-2 inputs by RCA; Line output by RCA |
||||
Attenuation | Microphone1-3, line1-2 and Mp3/FM, bass/treble and master | ||||
Input | MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA | ||||
Line Out | 0.775(0dBV) | ||||
Frequency Response | 60Hz-15kHz(±3dB) | ||||
S/N Ratio | Line ≥ 85dB, Mic≥ 72dB | ||||
THD | Less than 0.5% | ||||
Protection | short-circuit, clip, overload and high temp protection | ||||
Power Consumption | 80W | 150W | 310W | 450W | 650W |
Power Supply | AC110 or 220V & 24V DC /50-60Hz | ||||
Dimension | 484(W)×335(D)×88(H)mm | ||||
Weight | 6.1kg | 6.6kg | 9.6kg | 11.9kg | 13.7kg |
