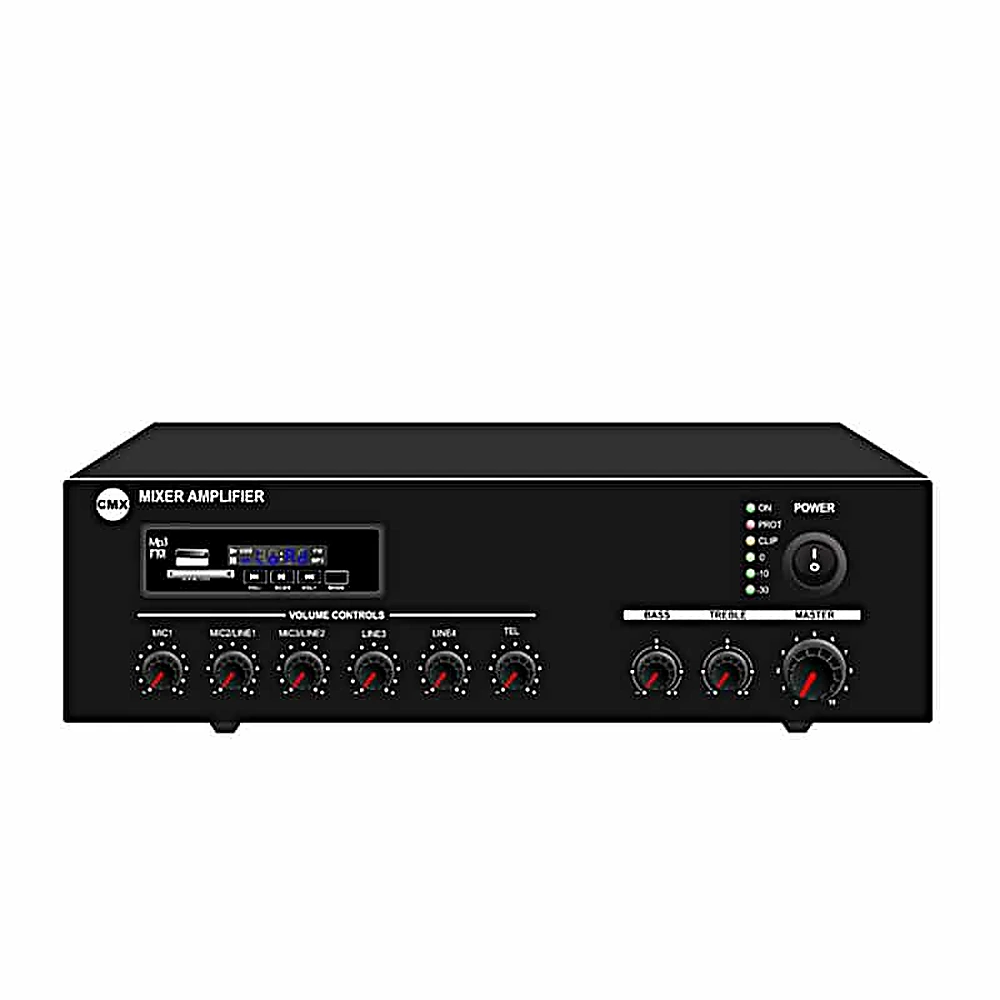

เครื่องขยายเสียง CMX EA-60
Features CMX EA-60 :
- Compact mini size public address amplifier
- Ideal for classroom sound system use
- Built-in 100V/70V transformer technology
- Tabletop amplifier with Mp3 player, FM radio & blue tooth
- Rate power output at 30W, 60W to 120W.
- Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms
- Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
- LED indicators for power, clip, protect and signal
- Mic1-3 and line 1-2 and telephone input. Mic1 of balanced XLR input with phantom power on rear panel. Mic2-3 microphone or line switchable unbalanced 6.3mm phone jack input. Line 1-2 input of RCA input and one RCA line output. Telephone input with VOX priority and MOH (Music on Hold).
- Volume control for Mic1-3, line1-2, Mp3/FM, bass/treble and master
- With short-circuit, clip, overload and high temp protection
- AC220V or 115V & 24V DC both operation system
Specification
Model |
MA-60 |
Description |
Public Address System Mixer Amplifier |
Rated Power Output |
60W RMS |
Speaker Output |
70V, 100V and 4-16Ω |
Input |
Mic1-3: 600 ohms(Ω) 5-8 mV, unbalanced, Line1-2: 10k ohms(Ω) 150-470 mV, unbalanced |
Frequency Response |
60-15KHz |
THD |
<0.5% at 1kHz, 1/3 rated power |
S/N Ratio |
Line: 85 dB , MIC: >72 dB |
Protection |
High temp, short circuit, overload protection |
Power Supply |
AC230V or AC110V, 50-60Hz |
Power Consumption |
95W |
Dimension |
484(W)×366(D)×88(H)mm |
Packaging |
520(W)×435(D)×185(H)mm |
Net. Weight |
10.1kg |
Gross Weight |
11.8kg |
Warranty |
5 years |
