NovaStar TU20 Pro LED controller

TU20 Pro เป็นโปรเซสเซอร์ควบคุมการเล่นที่สำหรับจอ LED ภายในอาคาร โดยรวมระบบ Android และฟังก์ชันการ์ดส่งข้อมูลไว้ในหน่วยเดียว และอนุญาตให้แอปพลิเคชันของบุคคลที่สามทำงานได้ โดยมีคุณสมบัติการโต้ตอบและการควบคุมการเล่นที่มีประสิทธิภาพ TU20 Pro ช่วยให้ผู้ใช้สามารถควบคุมจอ LED ด้วยรีโมท และรองรับการสะท้อนหน้าจอแบบไร้สายจากอุปกรณ์ Windows, macOS, iOS และ Android มีโหมดที่แตกต่างกันสี่โหมดที่ออกแบบมาสำหรับแอปพลิเคชันต่างๆ เพื่อให้มั่นใจถึงคุณภาพการแสดงผลที่ดีที่สุดสำหรับการนำเสนอเอกสาร การเล่นวิดีโอ และการประชุมทางไกล
TU20 Pro ไม่จำเป็นต้องออกแบบใหม่หรือเปลี่ยนแปลงโครงสร้างหน้าจอ และสามารถติดตั้งบนผนังหรือวางบนพื้นผิวได้ ทำให้การตั้งค่าและการใช้งานทำได้อย่างรวดเร็ว สามารถใช้งานได้อย่างกว้างขวางในห้องจัดแสดงนิทรรศการของบริษัท ห้องประชุม ห้องเรียนของภาครัฐและเอกชน ล็อบบี้โรงแรม การให้คำปรึกษาทางการแพทย์ทางไกล และสถานการณ์การใช้งานจอ LED เดี่ยวอื่นๆ
คุณลักษณะของเครื่อง รับ – ส่ง สัญญาณภาพสำหรับจอ LED FULL COLOR NovaStar TU20 Pro
- เป็น เครื่อง รับ – ส่ง สัญญาณภาพ ไปแสดงที่จอ LED FULL COLOR NovaStar TU20 Pro
- ตัวเครื่องรองรับความละเอียดได้ 3.9 ล้านพิกเซล ด้านกว้าง 64 – 4096 พิกเซล ด้านสูง 64 – 1920 พิกเซล
- ช่องรับสัญญาณขาเข้า และ ขาออก
- HDMI 1.3 x 2
- USB2.0 x 3
- RJ45 x 6 (ส่งไปจอ LED)
- Audio x 2 (ขาออก)
- SPDIF digital audio out x 1
- Audio 3.5 mm. output x 1
- ตัวเครื่องเป็นระบบ Android 11
- รองรับการแสดงภาพแบบ screen mirroring โดยสะท้อนภาพจากระบบ windows, MacOS, iOS และ Android ได้
- รองรับการใช้งานร่วมกับโปรแกรม Viplex
- ตัวเครื่องมีหน่วยประมวลผลแบบ Quad-core 1.8 GHz ARM A55 Processor
- รองรับ High-definition VDO decoding H.264 ที่ 4K@60Hz
- มีหน่วยความจำหลัก 4GB
- มีหน่วยความจำสำรอง 32GB
- รองรับโปรโตคอล TCP/IP
- รองรับการใช้งานร่วมกับแอฟฟลิเคชั่น ในมือถือ
NovaStar TU20 Pro รองรับการแสดงนามสกุลไฟล์ต่าง ๆ ได้ดังนี้
| Type | Decoding | Resolution | Max Frame Rate | Max Bit Rate (Ideal Condition) | Format | Note |
|---|---|---|---|---|---|---|
| MPEG-1/2 | MPEG-1/2 | 48×48 pixels to 1920×1088 pixels | 30fps | 80 Mbps | MPG, VOB, TS | Support field coding |
| MPEG-4 | MPEG4 | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4 Mbps | AVI, MKV, MP4, MOV, 3GP | MS MPEG4
v1/v2/v3, GMC not supported |
| H.264/ | H.264 | 48×48 pixels to | 2304p@60fps | 80 Mbps | AVI, MKV, | Support field |
| AVC | 4096×2304 | MP4, | coding, | |||
| pixels | MOV, | MBAFF | ||||
| 3GP, TS, | ||||||
| FLV | ||||||
| MVC | H.264 MVC | 48×48 pixels to 4096×2304 pixels | 2304p@60fps | 100 Mbps | MKV | Only support stereo high profile |
| H.265/ HEVC | H.265/HEV C | 64×64 pixels to 4096×2304 pixels | 2304p@60fps | 100 Mbps | MKV, MP4, MOV, TS | Support main profile, tile & slice |
| GOOGLE VP8 | VP8 | 48×48 pixels to 1920×1088 pixels | 30fps | 38.4 Mbps | WEBM,MK V | N/A |
| GOOGLE VP9 | VP9 | 64×64 pixels to 4096×2304 pixels | 60fps | 80 Mbps | WEBM,MK V | N/A |
| H.263 | H.263 | SQCIF(128×96) | 30fps | 38.4 Mbps | 3GP, | H.263+ not |
| QCIF(176×144) | MOV, MP4 | supported | ||||
| NovaStar TU20 Pro | CIF(352×288) | NovaStar TU20 Pro | NovaStar TU20 Pro | |||
| 4CIF(704×576) |

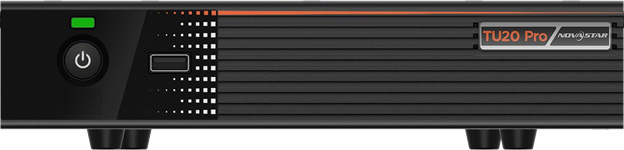

ด้านหน้าเครื่อง NovaStar TU20 Pro

| Name | Description |
|---|---|
| Status LED | l Solid green: The device is running normally.
l Off: The device is not running. |
| Standby button | l Press the button to power on the device or put it on standby.
l Hold down the button to restart the device. |
| USB 2.0 | Support a mouse, keyboard, USB drive and other common USB devices.
l Supported image formats: *.jpg, *.bmp, *.png, *.gif, *.webp l Supported video formats: *.avi, *.mpg, *.vob, *.mov, *.mkv, *.mp4, *.ts, *.flv, *.3gp, *.asf, *.webm l Support FAT32 and NTFS file systems. Do not support exFAT or FAT16 file system. |

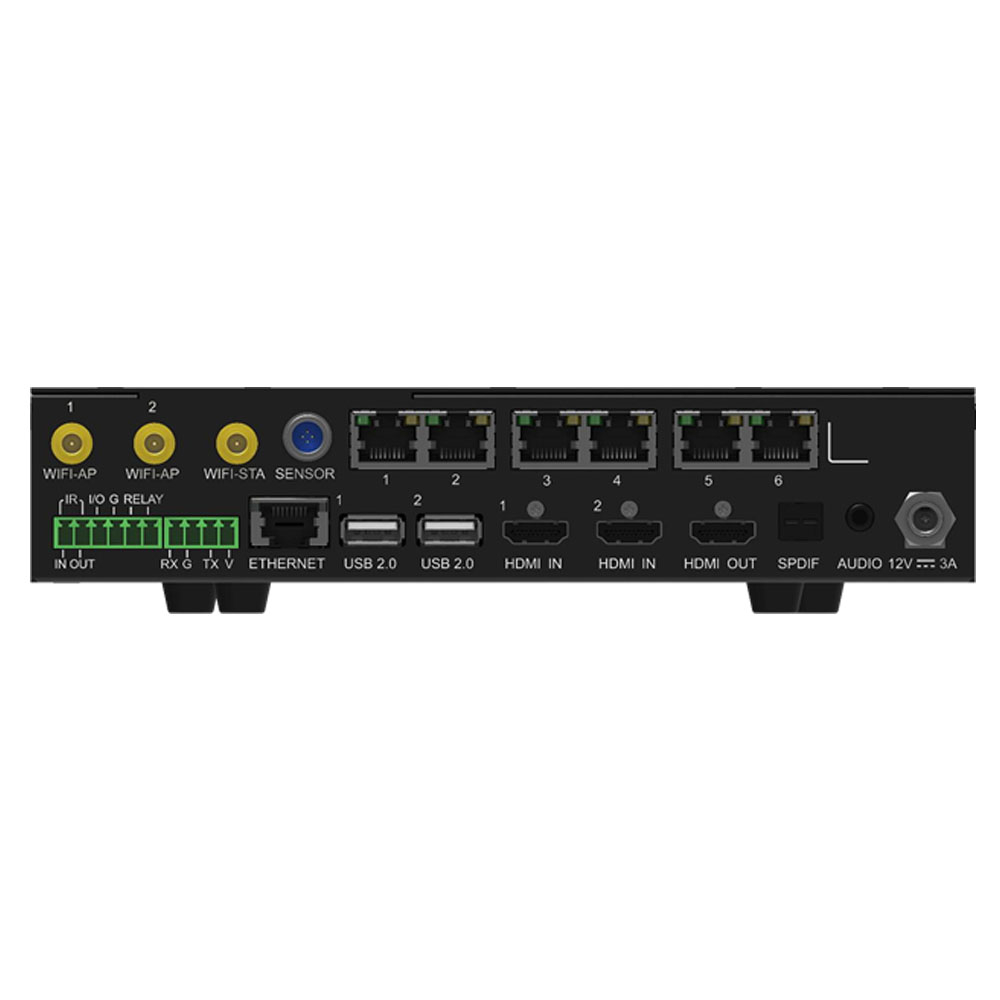

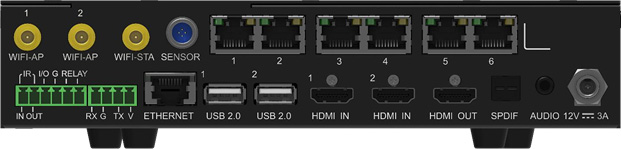

| Type | Connector | Description |
|---|---|---|
| Input | HDMI IN 1–2 | 2x HDMI 1.3 (Type A)
l Max resolution: 2048×1152@60Hz l Min resolution: 800×600@60Hz l Custom resolutions supported Width range: 800–3840 pixels (Forced) Height range: 600–3840 pixels (Forced) l Supported frame rates: 30 Hz, 50 Hz, 60 Hz l Do NOT support interlaced signal input. l HDCP 1.4 compliant, backwards compatible |
|
USB 2.0 1–2 |
2x USB 2.0 to support a mouse, keyboard, USB drive and other common USB devices
l Supported image formats: *.jpg, *.bmp, *.png, *.gif, *.webp |
|
| l Supported video formats: *.avi, *.mpg, *.vob, *.mov, *.mkv, *.mp4, *.ts, *.flv, *.3gp,
*.asf, *.webm l Supported file systems: FAT32, NTFS; not supported: exFAT, FAT16 |
||
| Output | 1–6 | 6x RJ45 (1Gbps) |
| HDMI OUT | Support output of standard 1080p video. | |
| AUDIO | 3.5-mm audio output | |
| SPDIF | For digital fiber optic audio output | |
| Control | ETHERNET | Connect to external network or to the NovaLCT software on the control PC. |
| SENSOR | Sensor connector to connect to light, temperature or humidity sensors. | |
| Phoenix connector
(4 pins) |
1x RS232 central control connector (4 pins) to connect to the central control device
l Baud rate: 115200 bps l Data bits: 8; stop bits: 1; no parity bit; no flow control |
|
| Phoenix connector
(6 pins) |
l 1x IR IN (Reserved)
l 1x IR OUT (Reserved) l 1x I/O (Reserved) l 1x RELAY − Connect to a relay to control the switch on and off of the connected device. − Voltage: 30 V DC; max current: 3 A l 1x GND A grounding connector |
|
| Antenna | Wi-Fi AP 1–2 | Specifications: 2T2R. Connect to the Wi-Fi antenna and Bluetooth antenna. |
| Wi-Fi STA | Specifications: 1T1R. Connect to the Wi-Fi antenna | |
| Power | DC 12 V ± 10% | |

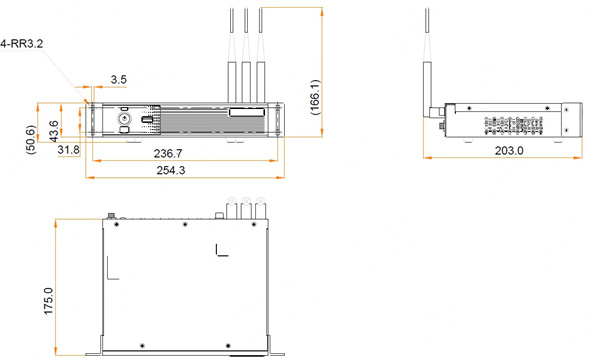

ขนาดเครื่อง NovaStar TU20 Pro

| Electrical Specifications | Input voltage | DC 12V 3A, Negative Outside Positive Inside (power adapter input) |
| Rated power consumption | 21 W | |
| Storage Space | RAM | 4 GB |
| Internal storage | 32 GB | |
| Operating Environment | Temperature | –20°C to +50°C |
| Humidity | 0% RH to 80% RH, non-condensing | |
| Storage Environment | Temperature | –20°C to +70°C |
| Humidity | 0% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions | 211.7 mm × 185.0 mm × 50.6 mm |
| Net weight | 1.12 kg | |
| Gross weight | 2.9 kg
Note: It is the total weight of the product, accessories, and packing materials packed according to the packing specifications. |
|
| Packing Information | Dimensions (L×W×H) | 387 mm × 359 mm × 173 mm |
| List | l 1x TU20 Pro
l 1x Power adapter l 1x Bluetooth voice remote l 1x Ethernet cable l 1x HDMI cable l 3x Antennas l 2x Hanging brackets l 1x Certificate of Approval |
