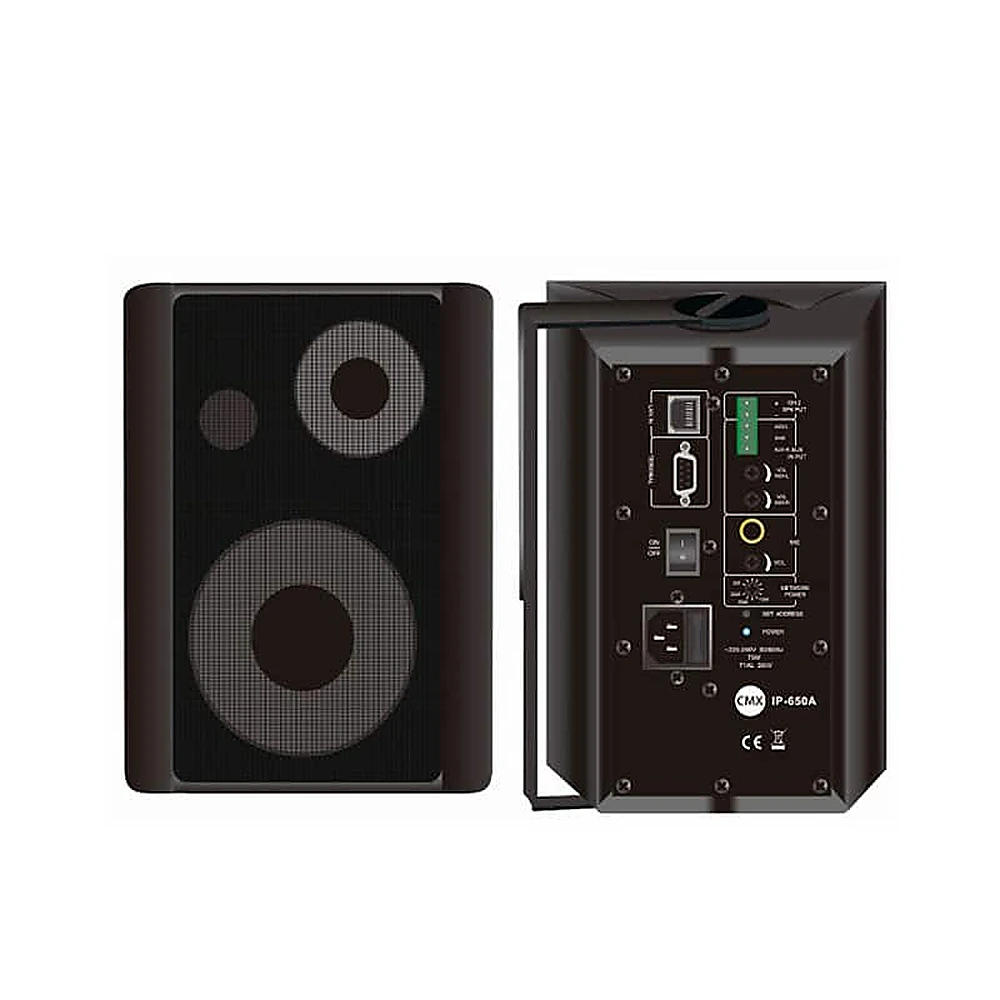

CMX IP-650A

ลำโพง CMX IP-650A

Why to Choose the IP Powered Speaker CMX IP-650A ?

• Audio distribution anywhere, where there is an IP network
• Usage of existing LAN/WAN network
• Easy connection of large and very distant destinations
• Possibility to create separate zones with different programs
• Central management of all loudspeakers
• Cheaper and faster installation
• White or black two color option

Description ลำโพง CMX IP-650A

• IP-650A IP powered speaker is a all in one network audio system solution,
• which is the most convenient audio over internet solution of which no signal cable and no speaker cable wiring is needed.
• The simplest connection is plug in the RJ45 communication port,
• input source, paralleled connect with another passive speaker, power on,
• then it can communicate with the server and enable all functions of a network audio system.
• IP-650A IP speaker includes an IP network active speaker and a passive low impedance speaker.
• The IP network active speaker is built-in decoder, a active speaker with stereo 20W+20W
• digital class-D amplifier and a 20W passive speaker,
• the speaker output 20W+20W.
• The connectors of this active speaker include one communication control port by RJ45,
• two reversed communication port by RJ45,
• one RCA input, one serial communication port for write in or change IP use,
• one 20w power output to amplify another passive speaker,
• with balance and volume attenuation, AC power switch, one status and one power indicators.
• The IP network active speaker package is of wall mount design,
• so it cloud be installed in anywhere of the non-dedicated network.
• It is high economy solution to use one this package for each classroom,
• hospital, prison and office such multiple room applications.
• The biggest advantages of the network audio system are: Super distance audio transmission,
• simultaneous maximum program task and non-dedicated network wiring.

Features ลำโพง CMX IP-650A :

• IP powered speaker with IP addressable network module.
• IP network audio active speaker package.
• One IP network audio active speaker and one passive speaker.
• The network audio active speaker is built-in network decoder,
• an active speaker built-in a stereo 20W+20W digital class-D amplifier and a 20W passive speaker.
• Economy solution for multiple room applications.
• Each room only installed one pair of loudspeakers.
• Anywhere of the LAN system of non-dedicated network system.
• No need aux cable and speaker cable wiring.
• Control data and aux data transmission both by CAT 5 cable.
• One aux input and one RJ45 control LAN input.
• One low impedance power output for another 8 Ohm 20W passive speaker.
• One serial communication port is only used to write in or change IP address.
• One status and one power indicators.
• Balance output and master volume attenuation.
• IP-650AW is of white color as option

Specifications : CMX IP-650A
