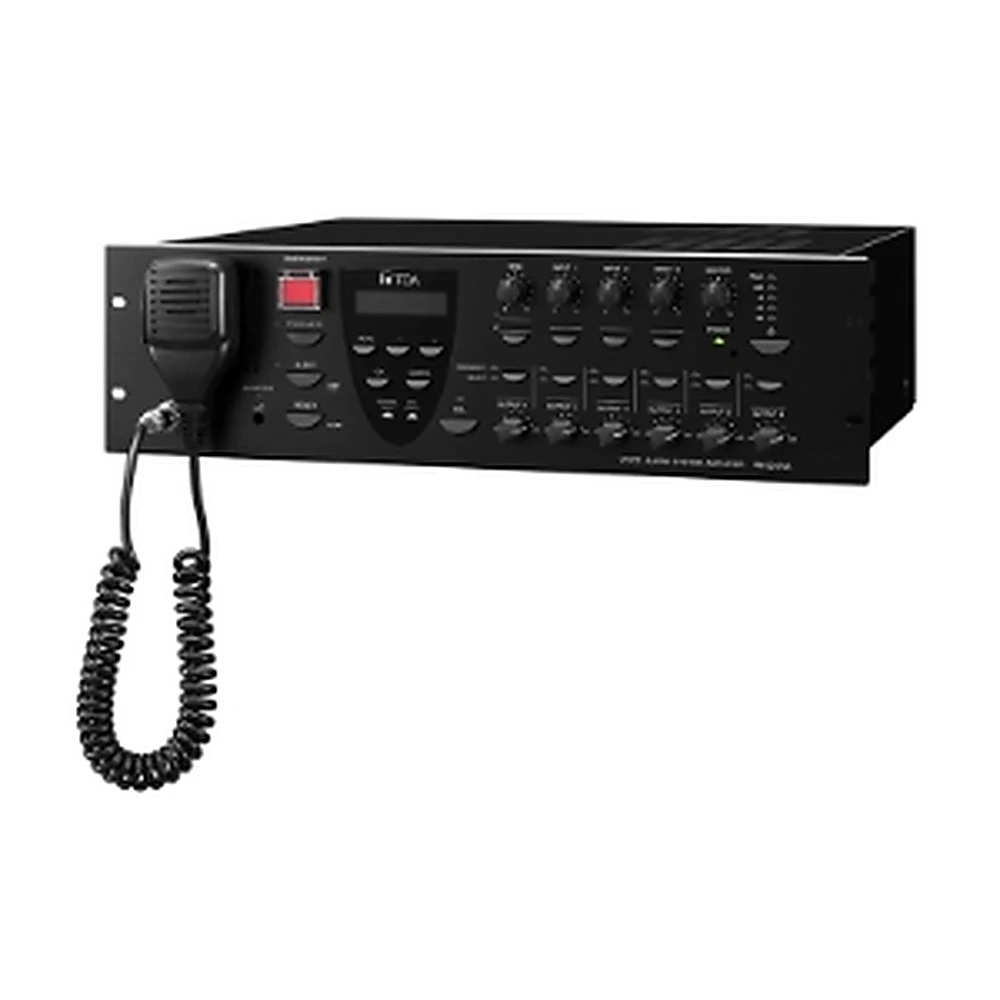

TOA VM-3360VA เครื่องขยายเสียงระบบ VM-3000 กำลัง 360 W ใช้ไฟ 230 V AC มีเอาต์พุตลำโพง 6 โซน โดยกำลังรวมทุกโซนต้องไม่เกิน 360 W เป็นรุ่นควบคุมระบบประกาศ มีอินพุต MIC/LINE 4 ช่องและ BGM 2 ช่อง พร้อมไมโครโฟนฉุกเฉินแบบมือถือในรายการอุปกรณ์ผู้ผลิต
คุณสมบัติและการใช้งาน TOA VM-3360VA
ข้อมูลรายการนี้อ้างอิงรหัสเต็ม VM-3360VA CE ในเอกสารผู้ผลิต ควรแจ้งรุ่นอุปกรณ์เดิมและรูปแบบการใช้งานก่อนสั่งซื้อ เพื่อเลือกการเชื่อมต่อ แหล่งจ่าย และอุปกรณ์เสริมให้ตรงกับระบบ

ข้อมูลทางเทคนิค
| รายการ | สเปกผู้ผลิต |
|---|---|
| แหล่งจ่ายไฟ / Power Source | 230 V AC, 50/60 Hz |
| การใช้พลังงาน / Power Consumption | 850 W (with rated output signal), 380 W (according to EN62368-1) |
| กำลังเอาต์พุต / Rated Output | 360 W |
| ช่วงความถี่ / Frequency Response | 50 Hz – 20 kHz, ±3 dB (at 1/3 rated output) |
| อุณหภูมิใช้งาน / Operating Temperature | -5 ℃ to +45 ℃ (23 ゜F to 113 ゜F) |
| ความชื้นใช้งาน / Operating Humidity | 5 % to 95 %RH (no condensation) |
| ขนาด / Dimensions | 482 (W) × 132.6 (H) × 431.2 (D) mm (18.98" × 5.22" × 16.98") |
| น้ำหนัก / Weight | 19 kg (41.89 lb) |
| อุปกรณ์ในรายการผู้ผลิต / Accessory | Power cable (2 m (6.56 ft)) …1, Setting software-CD …1, Link cable (3 m (9.84 ft)) …2, Removable terminal plug (14 pins)…3, Removable terminal plug (16 pins) …1, Emergency microphone (hand-held type) …1 |
| อุปกรณ์เสริม (แยกจำหน่าย) / Option | Input transformer: IT-450 |
ตรวจสอบก่อนติดตั้ง TOA VM-3360VA
ตรวจพื้นที่ติดตั้ง ระยะเดินสาย แหล่งจ่าย และจำนวนอุปกรณ์ร่วมระบบก่อนออกแบบ สำหรับเครื่องขยายเสียงและลำโพงต้องตรวจโหลดรวมและเลือกแท็ปให้ถูกต้อง ส่วนอุปกรณ์รีโมตต้องใช้รุ่นที่รองรับ ไม่สรุปว่าใช้แทนกันได้เพียงเพราะหัวต่อเหมือนกัน
อุปกรณ์เสริมแยกจำหน่ายไม่ได้รวมในราคาตัวสินค้า เว้นแต่ระบุในใบเสนอราคา การใช้งานในระบบเสียงฉุกเฉินต้องออกแบบและทดสอบระบบทั้งหมดโดยผู้ติดตั้ง การมีอุปกรณ์เพียงรุ่นเดียวไม่ใช่การยืนยันว่าระบบทั้งโครงการผ่านข้อกำหนด
ข้อมูลสำหรับงานระบบ / Project enquiry
For a project quotation, provide the full equipment model, quantity and the existing system that will be connected. Confirm power supply requirements, signal levels, loudspeaker loading and supported accessories from the manufacturer documentation. Similar model names or connectors do not prove compatibility. Dimensions and service access should be checked before the installation position is finalized.
List cables, mounting hardware, external power supplies and installation services separately. Optional accessories are not automatically included with the main unit. Ask the installer to verify connection settings and test the complete system before normal operation. Keep the selected model, configuration record and manufacturer instructions available for future maintenance. Confirm stock availability, delivery schedule and warranty terms before ordering.
ราคาและเอกสาร TOA VM-3360VA
ราคาขาย 133,108.00 บาท รวม VAT 7%
ราคาก่อน VAT 124,400.00 บาท
สต็อก ระยะเวลาส่งมอบ เงื่อนไขรับประกัน และบริการติดตั้ง ต้องยืนยันก่อนสั่งซื้อ ตารางเป็นสรุปข้อมูลสำคัญ รายละเอียดการตั้งค่าและการต่อสายให้ใช้เอกสารฉบับเต็มจากผู้ผลิต
