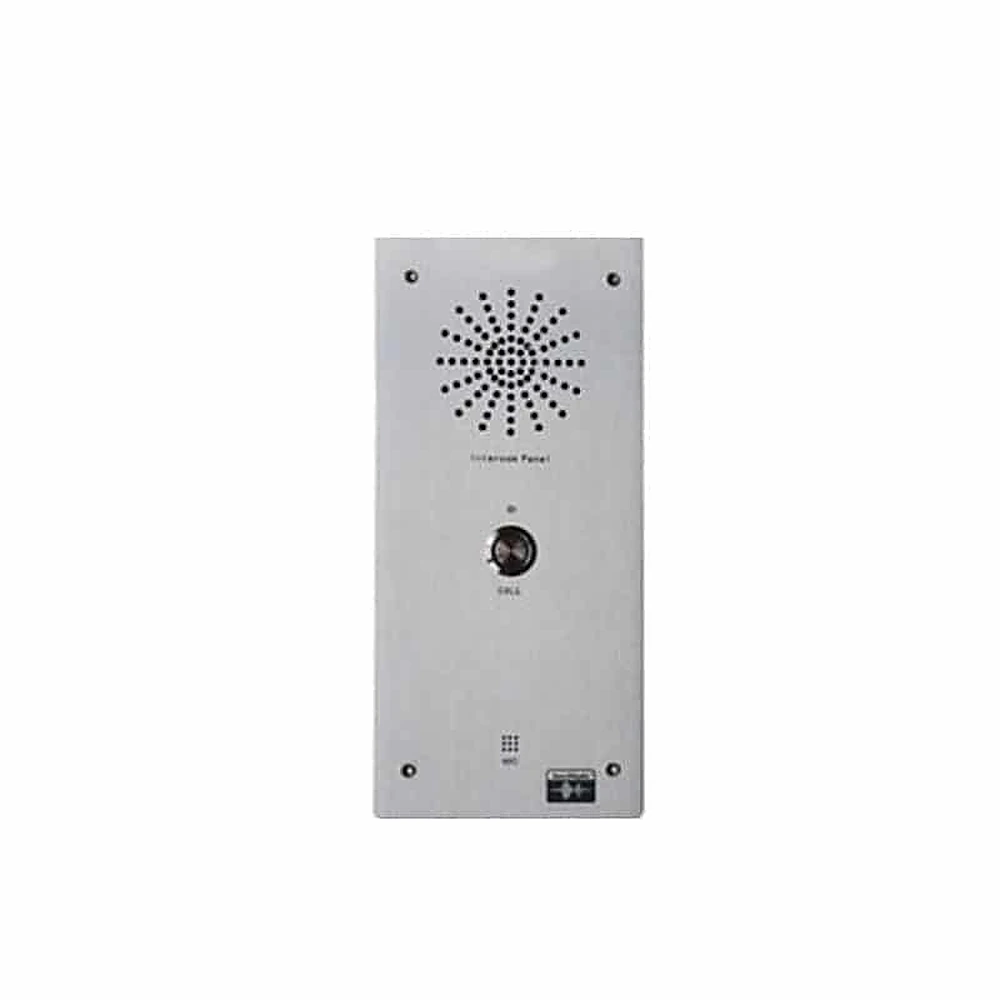

ลำโพง 2 ทาง CMX IP-9000A
Feature ลำโพง 2 ทาง CMX IP-9000A :
- Ideal solution for indoor two way intercom communication system in park, school, factory, train station and airport.
- IP network intercom system very suitable for big scale installation system whether by CAT5 cable or fiber optical cable.
- Aluminum finish with damage proof screw fixing up.
- Both surface and embedded mounting ways with supplied mounting box.
- Classic range high quality IP intercom panel.
- The IP network Intercom slave station built-in 3W speaker and microphone.
- Full duplex two way communication system.
- It can start the communication to the call station by pressing the call button,
- the call station will be reminded with ring call and indicator as which intercom panel from where is calling.
- The call will be automatically transferred to next call station once busy, no answer or fault occurred.
- With one contact output and contact input for third party communication.
- Non dedicated network is needed, the system could be easily built-up over exiting LAN/WAN network.
- Embedded server Lynux technology with two ARM and DSP high speech chip.
- Max support 64,000 call stations working at the same time.
- Start time less than 0.1 second.
- Network data delay of less than 30 milliseconds.
- It is POE supportable & also could be powered by DC12V.
Specification ลำโพง 2 ทาง CMX IP-9000A :
Model |
IP-9000A |
Description |
IP Network Intercom Slave Station |
Mounting |
Support both surface or embedded by supplied mounting box |
Power Supply |
POE or DC 12V |
Power Consumption |
5W |
Network Protocol |
TCP, UDP, ARP, ICMP, IGMP |
Network Speed |
10/100Mbps |
Audio Sampling |
8KHz-44.1KHz, 16 bits |
Transmission Rate |
8Kbps to 320Kbps |
S/N Ratio |
≥90dB |
Frequency Response |
20Hz-20KHz |
Data Delay |
30 milliseconds |
Built-in Speaker |
3W |
Connector |
One line output & one RJ45 port for LAN, one contact input and one contact output |
Dimensions |
255(W)×115(D)×50(H)mm |
