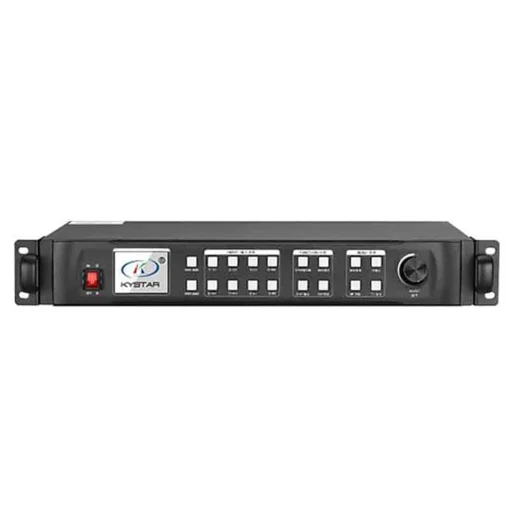

KYSTAR U2

VDO processor Kystar U2

SPEC VDO Processor KYSTAR U2

• The multi-image splicing processor is a high-end video processing equipment
• developed and manufactured by our company for LED large screen display,
• performance and leasing, conference room, studio and so on.
• The product adopts CPT+ FST splicing technology targeted for small pixel LED
• display to guarantee uniformity and synchronization of splicing. The Super Resolution
• Zoom-in Technology can help eliminate jaggies and reduce the fuzzy sense and
• out-of-focus phenomenon due to image magnification.
  ● Splicing outputs with resolution up to 2560×1536@60Hz.
  ● Support user-define output resolutions 2.6million.
  ● Multi-machine Synchronous Cascade.
  ● Support synchronous transition of audio and video.
  ● Fade-in and fade-out transition between any signals.
  ● Two-channel output, able to complete PIP and POP display.
  ● Support 1080P full-screen monitoring output.
  ● 2pcs LED sending cards built-in ability.
  ● Gathering usage records and Engineering lock.
  ● Navigational settings, easy to be used without training.

Three Output Modes

• Splicing Modes KYSTAR U2
  The two outputs of U2 output different parts respectively to form
• a complete picture and realize seamless splicing on the LED diplay,
• able to support the maximum 2560×1536 resolution.
• Copy Mode
  The two output ports of U2 output uniform picture. It is easy to drive two identical screens.
• When driving a single screen, it can also be relatively easy to connect the sending cards.
  In this mode, it Support user-define output resolutions 2.6million.
• Monitoring Mode
  The two output ports of U2 output uniform signal. One acts as a programming output to drive the LED display while the other one keeps the original image to drive the local monitor, at the same time.

Special function

• Gathering usage records
  Using this function , You can know the use condition of machine any time.
• Engineering lock
  U2 Support engineering lock function, and could set working hours.
• After the scheduled time is reached, it is required to enter the unlock code to use.
  In use time, if failed to unlock timely, the device will be locked,
• and no other operations could be conducted except entering unlock code.
• The device has no output during locking process.

Professional Configurations KYSTAR U2

• Professional AV Ports
  Standard U2 has 6-channel video input:HDMI×1，DVI×1， VGA×2，CVBS×2；DVI loop×1。
  In particular, KS800 is equipped with 4-channel stereo input
• and 1-channel audio (The video signals can be specified for synchronous switching).

PBP and Transition Effects KYSTAR U2

• PBP Display
  U2 can support PBP to achieve PIP and POP display or
• can be used to control two screens different in size.
• Fade-in and fade-out transition
  All input signals of U2 can support fade-in and fade-out transition.

High-Performance Iamge Processing

• Super Resolution and LED Intelligent Balancing
  U2 can support Super Resolution zoom technology, able to zoom in/out images by any size and simultaneously enhance the image details. In addition,
• the LED intelligent balancing technology can bring better color performance for the LED display system.
