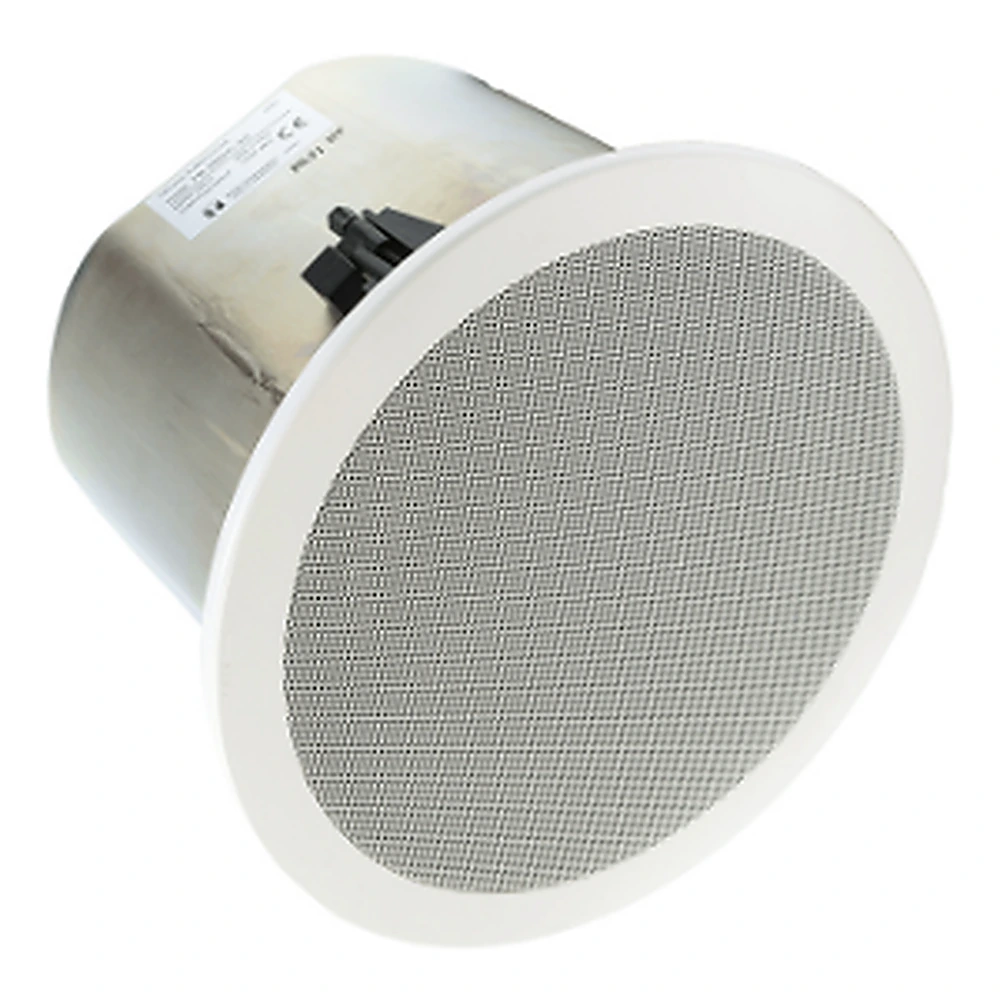

TOA FB-2862C AS

฿10,600.00

Ceiling Subwoofer, FB-2862C offers an attractive exterior designed created by an interior designer to blend it naturally to any architectual space, enhancing the immediate area’s sense of harmony.
The bass reflex speaker system designed to provide low frequency range and high-quality sound output, ideal for locations with high ceiling or places that requires true-to-life sounds.
Brochure : FB-2862C

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

หมวดหมู่: ลำโพง

Ceiling Subwoofer (16cm) TOA FB-2862C AS

TOA FB-2862C AS

คุณลักษณะของ Ceiling Subwoofer (16cm) TOA FB-2862C AS

ขนาดดอกลำโพง 16cm
มี Tap สวิตซ์เลือก 100V, 70V Line และ 8 โอห์ม
หน้ากากสามารถติดตั้งได้ง่ายแบบหมุน
เหมาะใช้กับงานร้านค้าแฟชั่น, ร้านค้าในห้าง,หรือ งานที่ต้องการเสียงดนตรี

Spec Of Ceiling Subwoofer (16cm) TOA FB-2862C AS

Enclosure	Bass Reflex Type TOA FB-2862C AS
Rated Input	60W (High Impedance)
Power Handling Capacity	Continuous: 60 W (8Ω) (IEC60268-5) Program: 120 W (8Ω)
Impedance	100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W) 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W) 25 V line: 83 Ω (7.5 W), 170 Ω (3.7 W), 330 Ω (1.9 W), 670 Ω (0.9 W), 3.3 kΩ (0.2 W) 8Ω (120W)
Sound Pressure Level	87 dB (1 W, 1 m) installation in 1/2 free sound field (measured by installing the unit in the center of a ceiling or wall) 81 dB (1 W, 1 m) installation in free sound field (measured in anechoic chamber)
Frequency Response	60 – 250 Hz (-10 dB) installation in 1/2 free sound field (measured by installing the unit in the center of a ceiling or wall)
Speaker Component	Low Frequency: 16 cm cone-type TOA FB-2862C AS
Mounting Hole	Φ 250 mm (Maximum ceiling thickness: 37mm)
Input Terminal	Removable locking connector with screw-down terminals (2 input terminals and 2 bridging terminals)
Usable Cable	Solid copper wire: Φ0.5 – Φ1.6mm (equivalent to AWG No. 24 – 14) Stranded copper wire: 0.2 – 2.5mm² (equivalent to AWG No. 24-14)
Finish	Enclosure: Steel plate, plating Baffle: Fire-resistant ABS resin (UL-94 V-0), black Rim: Fire-resistant ABS resin (UL-94 V-0), white (RAL 9016) Punched net: Steel plate, white (RAL 9016), paint
Dimensions	Φ280 × 198 (D) mm
Weight	6.3 kg (including mounting accessory)
Accessory	Grille x 1, Ceiling Reinforcement x 1, Safety Wire x 1, Paper Pattern x 1
Option	Anchoring Hanging Bracket: HY-AH1, Tile Bar Bridge: HY-TB1
