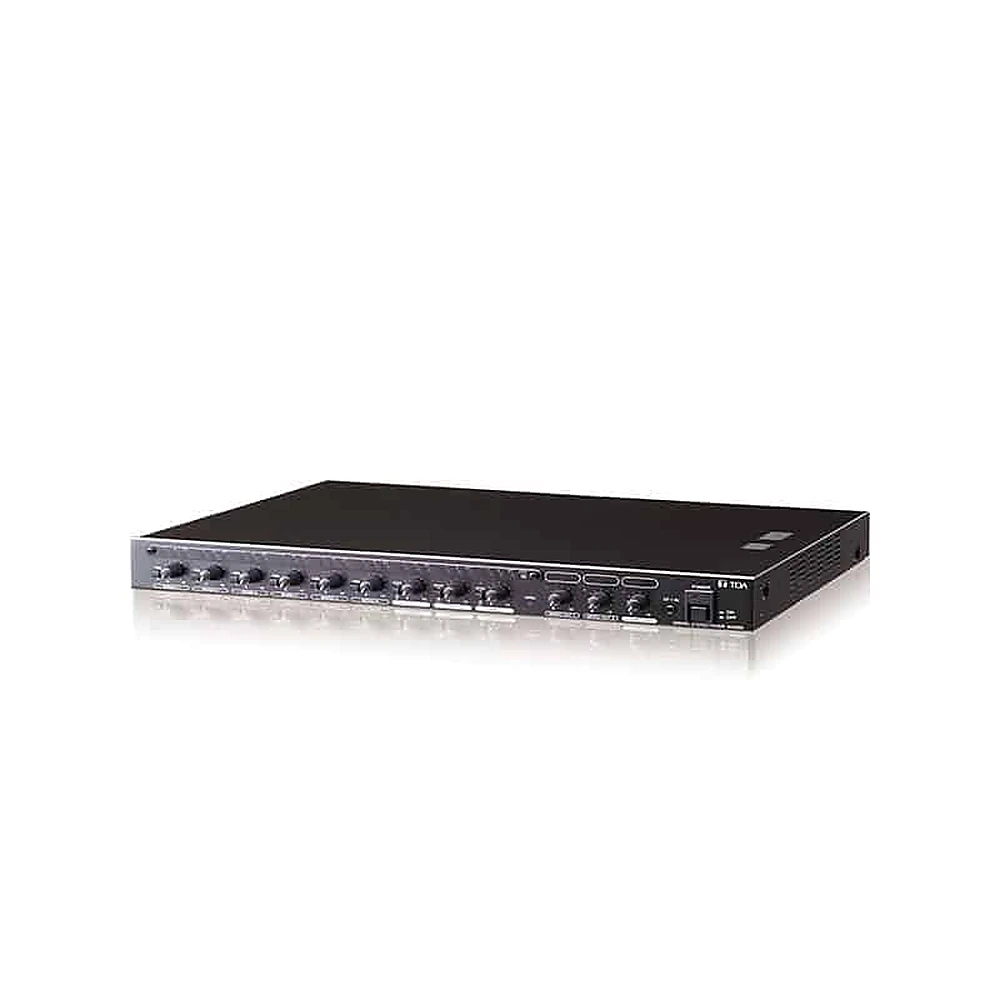

Mixer TOA M-633D
คุณลักษณะ Mixer TOA M-633D :
Power Source | 220 – 240 V AC, 50/60 Hz |
Power Consumption | 14 W |
Frequency Response | 20 Hz – 20 kHz |
Sampling Frequency | 48 kHz |
Dynamic Range | 90 dB or more (IHF-A weighted) |
Distortion | 0.03 % or less, 1 kHz, -10 dB(*4) input, 0 dB(*4) output (20 Hz – 20 kHz BPF) |
Input | 6 monaural input channels (MONO IN 1 – 6), selectable independently from 3 types of inputs below for each channel LINE: -10 dB(*4), 2.4 KΩ MIC: -46 dB(*4), 2.4 KΩ PHANTOM: -46 dB(*4), 2.4 KΩ supplies phantom power of +24 V DC, 10 mA electronically balanced Removable terminal block (3 pins), phone jack 3 stereo inputs (L, R) (STEREO IN 1 – 3) -10 dB(*4)/ 10 kΩ, RCA jack (STEREO IN 1 – 3), Stereo mini jack (ST IN 1) |
Output | 2 monaural output channels (MONO OUT 1, 2) 0 dB(*4) (applicable load: 1 kΩ or more), electronically balanced, removable terminal block (3 pins) 1 stereo output (L, R) channel (ST OUT L, R) 0 dB(*4) (applicable load: 1 kΩ or more), electronically balanced, removable terminal block (3 pins) 1 stereo recording output (L, R) channel (REC OUT L, R) -10 dB(*4) (applicable load: 1 kΩ or more), RCA jack |
Bus Line | Monaural channel × 2, Stereo channel × 1 |
AD Converter | 24 bits |
DA Converter | 24 bits |
Automatic Resonance Control Function | 3 output channels (each monaural output channel, stereo output L, R), independent settings for each channel, automatic creation of EQ curves (for sound field compensation) ARC measurement start switch × 1, Function ON/OFF check indicator × 1 |
Feedback Suppression Function | 6 channels (each monaural input channel),independent settings for each channel Function ON/OFF switch × 6, Function ON/OFF check indicator × 6 |
Automatic Clipguard Function | 6 channels (each monaural input channel), independent settings for each channel |
Automatic Mute Function | Function ON/OFF switch × 1 |
Input Level Indicator | 2-color LED indicator: Green (for appropriate level)/red (for peak level) |
Output Level Indicator | 2-color LED indicator: Green (for appropriate level)/red (for peak level) |
Finish | Panel: Aluminum, black, hairline Case: Precoated steel sheet, black, 30 % gloss |
Dimensions | 420 (W) × 44 (H) × 341.3 (D) mm (16.54″ × 1.73″ × 13.44″) |
Weight | 4 kg (8.82 lb) |
Accessories | Power cord (2 m (6.56 ft)) ……1 Removable terminal plug (3 pins) ……10 Rubber foot ……4, Rack mounting bracket ……2 Machine screw (M3 × 8) ……6 Rack mounting screw (5 × 12) ……4 |
