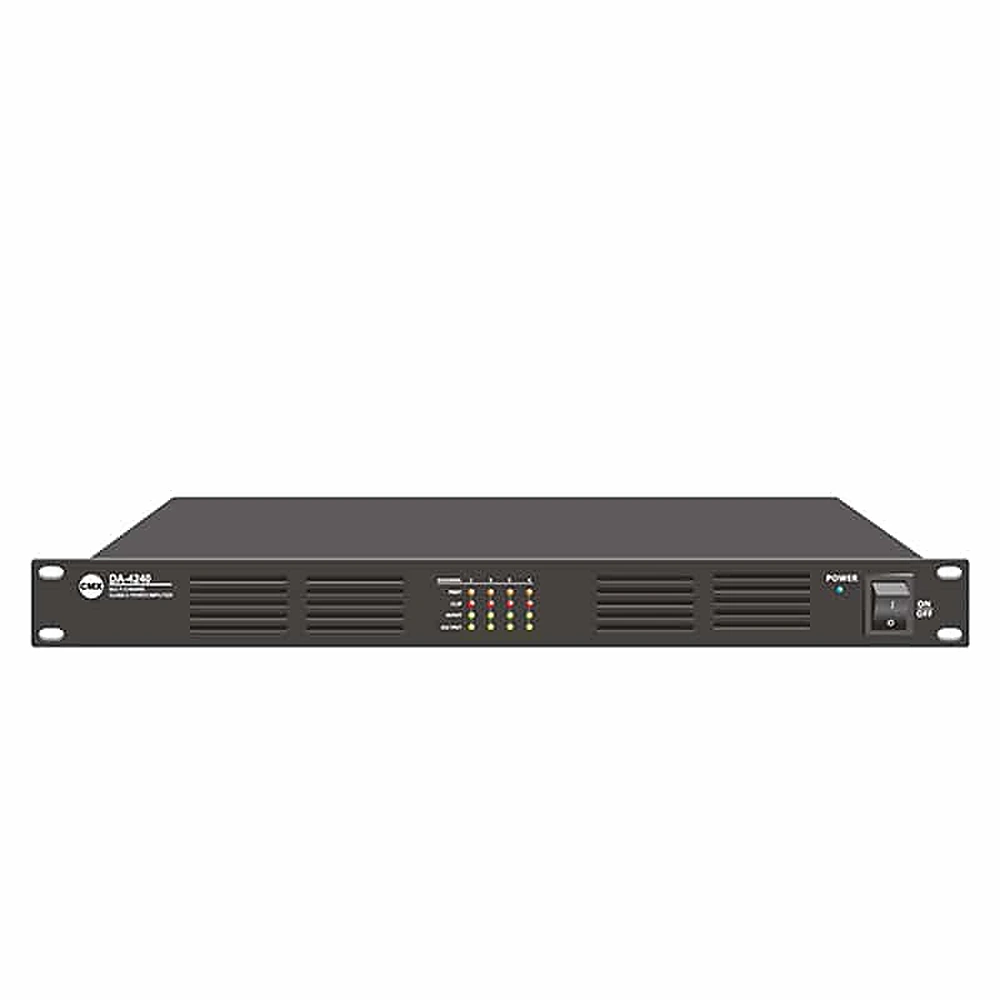

CMX DA-4240
Features:
- Switching power technology digital power amplifier
- Class-D PA power amplifier of minimum power consumption
- 1RU height for less rack space and less heat generation
- Four channel power amplifier into 19” rack mount unit
- Rated power output at 4x240W
- Four channel separate speaker outputs 8Ω/100V
- Balanced line input by phoenix connector for four channels
- Each input with separate gain control.
- Each four channel with high-cut filter.
- Built-in auto standby feature to save power consumption
- Separate four channel indicators for protection, clip, input and output
- Complete short circuit, overload, high temp, clip and DC protection
- Wide AC input switchable between 115V and 230V
- With 24V DC input.
Specification
Model |
DA-4240 |
Description |
Four Channel 4×240W Class-D Power Amplifie |
Rated Power Output |
4x240W |
Speaker Output |
8Ω & 100V |
Frequency Response |
L/H Cut OFF 20Hz-20KHz (+1/-2dB) |
L/H Cut ON 70Hz-10KHz (+1/-3dB) |
Input |
0.775V, 0dBu, balanced phoenix connector by four channels |
Input Impedance |
10KΩ |
THD |
<0.1% (1KHz/-3dBv, 100W) |
S/N Ratio |
>80dB |
Crosstalk |
>60dB, 1KHz, Max output |
Power Consumption |
1200W |
Power Supply |
AC input switchable between 115V & 230V, 50-60Hz |
24V DC input included. |
Dimension |
482(W)x420(D)x44(H) mm |
Weight |
9kg |
