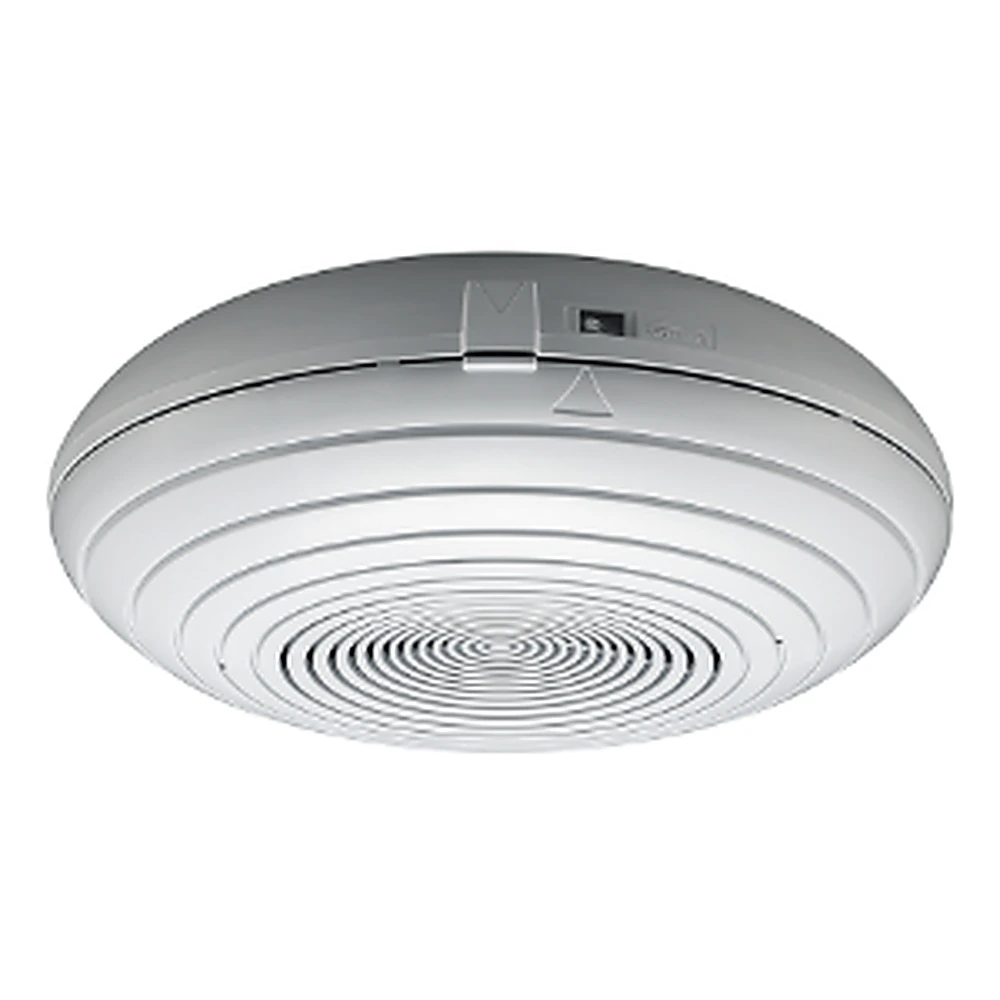

TOA PC-2268WP

฿1,950.00

The PC-2268WP is a splash-proof surface mount ceiling speaker with rated input of 6 W (100 V line application).
It meets IPX4 water protection requirements and can be installed in locations where it may not be directly exposed to wind and rain.
Compact and attractive design to blend in with interior spaces.
The push-in type input terminal provides an easy cable connection and allows bridge wiring.
The input power change can be made easily by changing the tap position of the transformer. Rear-closed structure with a rear cover keeps performance and sound quality constant regardless of installation location.

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

หมวดหมู่: ลำโพง

Splash-Proof Ceiling Speaker 6W TOA PC-2268WP

TOA PC-2268WP

คุณลักษณะของ Splash-Proof Ceiling Speaker 6W TOA PC-2268WP

Rated Input	6 W (for 100 V line), 3 W (for 70 V line) TOA PC-2268WP
Rated Impedance	100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity	90 dB (1 W, 1 m, 330 Hz – 3.3 kHz, pink noise)
Frequency Response	160 Hz – 16 kHz (20 dB below peak)
Speaker Component	12 cm (5″) cone-type TOA PC-2268WP
Applicable Cable	600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 – φ1.6 mm (equivalent to AWG 20 – 14) 7-core twisted copper wire: 0.75 – 1.25 m㎡ (equivalent to AWG 18 – 16)
Connection	Push-in connector (bridging terminal)
Operating Temperature	-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Water Protection	IPX4 (conforms when the unit is installed to a flat horizontal ceiling.)
Finish	Front case, Rear case: Fire-resistant HIPS resin (resin material grade: UL94V-0), light gray Speaker mounting bracket: Surface-treated steel plate, off-white, powder coating
Dimensions	φ220 × 80.5 (D) mm (φ8.66″ × 3.17″) (unit only, excluding projection) φ150 × 5 (D) mm (φ5.91″ × 0.2″) (speaker mounting panel, excluding mounting screw)
Weight	890 g (1.96 lb) (unit only), 180 g (0.4 lb) (speaker mounting panel)
Accessory	Speaker mounting panel …1, Switch box mounting screw (M4 × 35) …2, Ceiling mounting screw (4 × 35) …2, Knob nut …2
