TOA PE-304

Name: TOA PE-304 Pendent Speaker 30W | Alleducare
Price: 3600.00 THB
Availability: InStock

฿3,600.00

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

หมวดหมู่: ลำโพง

Pendent Speaker 30W TOA PE-304

TOA PE-304

คุณลักษณะของ Pendent Speaker 30W TOA PE-304

Enclosure	Bass-reflex type
Rated Input	30 W (100 V, 70 V line, 8 Ω)
Rated Impedance	100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W) 8 Ω
Sensitivity	91 dB (1 W, 1 m) (500 – 5,000 Hz, pink noise)
Frequency Response	70 – 20,000 Hz (peak -20 dB)
Speaker Component	12 cm (5″) cone-type + balanced dome-tweeter
Speaker Cord	2-core cabtyre cord 5 m (16.4 ft)
Applicable Cable	600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 – φ1.6 mm (equivalent to AWG 20 – 14) 7-core twisted copper wire: 0.75 – 1.25 m㎡ (equivalent to AWG 18 – 16)
Connection	Push-in connector (bridging terminal-2 branch type)
Finish	Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color) Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
Dimensions	φ186 × 251 (H) mm (φ7.32″ × 9.88″) (unit only)
Weight	2.1 kg (4.63 lb) (unit only)
Accessory	Ceiling bracket …1, Mounting hanger …1, Ceiling cover …1, Speaker mounting screw (4 × 16)…4

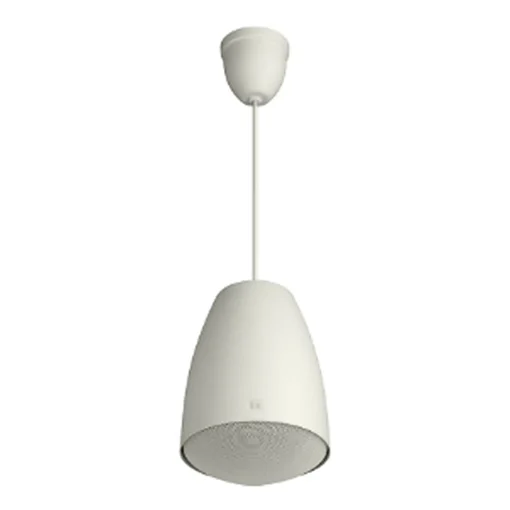

The PE-304 is a pendant speaker designed for ceiling suspension installations.
Considered in architectural design, it can blend in with lighting equipment.
A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling.
The PE-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 Ω) lines.
The input power (impedance) can be easily changed at the upper side of the speaker.
The speaker is easy to repaint so as to meet a wide range of design needs.
