TOA Q-PE-304BK

Name: TOA Q-PE-304BK ลำโพงติดตั้งเพดาน แบบห้อย | Alleducare
Price: 4100.00 THB
Availability: InStock

฿4,100.00

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

หมวดหมู่: ลำโพง

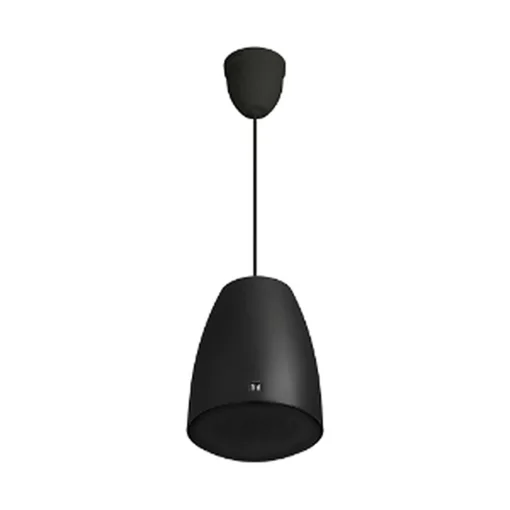

Pendent Speaker 30W TOA Q-PE-304BK

TOA Q-PE-304BK

คุณลักษณะของ Pendent Speaker 30W TOA Q-PE-304BK

Enclosure	Bass-reflex type
Rated Input	30 W (100 V, 70 V line, 8 Ω)
Rated Impedance	100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W) 8 Ω
Sensitivity	91 dB (1 W, 1 m) (500 – 5,000 Hz, pink noise)
Frequency Response	70 – 20,000 Hz (peak -20 dB)
Speaker Component	12 cm (5″) cone-type + balanced dome-tweeter
Speaker Cord	2-core cabtyre cord 5 m (16.4 ft)
Applicable Cable	600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 – φ1.6 mm (equivalent to AWG 20 – 14) 7-core twisted copper wire: 0.75 – 1.25 m㎡ (equivalent to AWG 18 – 16)
Connection	Push-in connector (bridging terminal-2 branch type)
Finish	Enclosure: HIPS resin, black Grille: Surface-treated steel plate net, black, paintt
Dimensions	φ186 × 251 (H) mm (φ7.32″ × 9.88″) (unit only)
Weight	2.1 kg (4.63 lb) (unit only)
Accessory	Ceiling bracket …1, Mounting hanger …1, Ceiling cover …1, Speaker mounting screw (4 × 16)…4

The Q-PE-304BK (Black) pendant style public address speaker is built within an HIPS resin bass-reflex enclosure using 5″ (12cm) cone-type pendant speakers and are intended for ceiling suspension installation.
They have an outstandingly stylish design that is inspired by the finest lighting fixtures, allowing them to harmoniously blend in with lighting equipment.
They are ideally suited for such applications as BGM and announcements at high-ceiling venues such as airports, factories and shopping malls.
The speakers are easy to repaint, extending the range of design needs they can meet and also include a balanced dome tweeter.
A directly attached sturdy suspension cable is extendable up to 16.4ft. (5 meters).
Q-PE-304BK is driven on a high- and low-impedance(8Ω) line. Input impedance is adjustable with rotary switch on the upper side of the speaker.

สอบถามเพิ่มเติม
