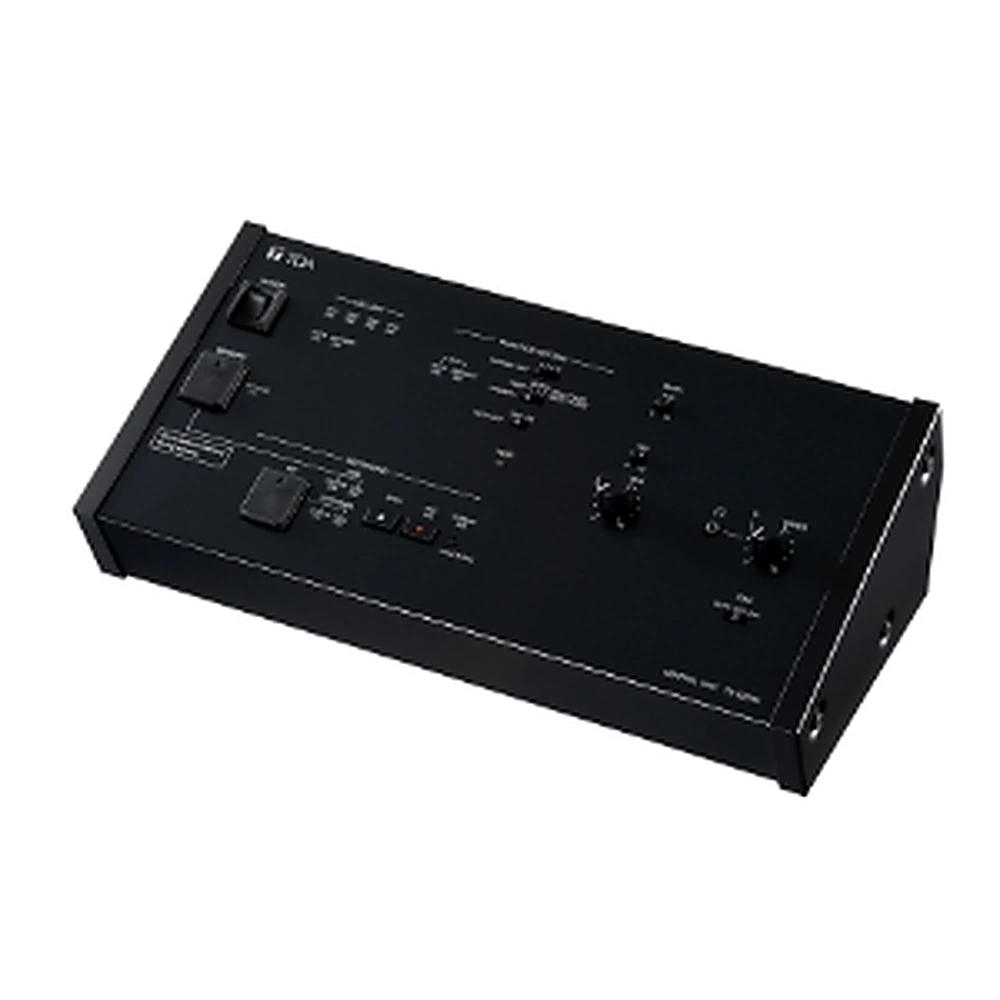

TOA TS-820RC
฿59,400.00
- The TS-820 is a Central Unit of the Infrared Conference System that allows easy installation and flexible layout. By connecting TS-905/907 IR Transmitter/Receiver, TS-820 can control the Chairman and Delegate Units via wireless infrared signal. It features the installation confirmation function that allows the connection status of IR Transmitter/Receiver and Chairman/Delegate Units to be verified. The TS-820 is also equipped with FBS (Feedback Suppression), enabling effective control of acoustic feedback. The system can be controlled by PC (*1). With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).
หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก
Center unit with Recording function TOA TS-820RC
คุณลักษณะของ Center unit with Recording function TOA TS-820RC
- การประชุมที่ไร้เสียงสัญญานรบกวนด้วยการรับ-ส่งสัญญานแบบอินฟาเรด TOA TS-820RC
- ออกแบบมาให้มีความยืดหยุ่นและเคลื่อนย้ายได้ง่าย
- เหมาะสำหรับการติดตั้งแบบชั่วคราวหรือถาวร
- มีระบบป้องกัน Feedback Supperssion ภายในตัว หรือเชื่อมต่อการภายนอก
- สามารถบันทึกเสียงภายในตัวเครื่อง หรือ ผ่าน USB Flash Drive ในรุ่น TS-820RC/TS-920RC
- มีฟังก์ชั่นการลงคะแนนแบบสามทางเลือก ในรุ่น TS-920RC
- รองรับระบบแปลภาษา 2 ช่องสัญญาน ในรุ่น TS-920RC
- สามารถเชื่อมต่อได้สูงสุด TS-820/820RC: 64 ยูนิต, TS-920RC: 192 ยูนิต
- รองรับการใช้งานร่วมกับกล้อง PTZ (Onvif)
- Brochure : TS-820_920_Series
Spec Of Center unit with Recording function TOA TS-820RC
| Power Source | 100 – 240 V AC, 50/60 Hz (use of the supplied AC adapter) TOA TS-820RC |
|---|---|
| Power Consumption | 72 W |
| Current Consumption | Max. 3 A DC (when 24 V DC is supplied from the accessory AC adapter) |
| Carrier Frequency | Reception: Audio Channel 1: 7.35 MHz Audio Channel 2: 8.10 MHz Audio Channel 3: 8.55 MHz Audio Channel 4: 9.15 MHz Control Channel: 6.45 MHz Transmission: Audio Channel: 1.95 MHz |
| Input | MIC: -60 dB*, 600 Ω, unbalanced, Ø 6.3mm phone jack (2P) AUX: -20 dB*, 10 kΩ, unbalanced, Ø 6.3mm phone jack (2P) |
| Output | LINE: -10 dB*, 10 kΩ, unbalanced, Ø 6.3mm phone jack (2P) REC: -10 dB*, 10 kΩ, unbalanced, RCA pin jack HEADPHONE: Ø 3.5mm mini jack (3P: monaural) |
| Equalizer Input/Output | Input: -20 dB*, 10 kΩ, unbalanced, RCA pin jack Output: -20 dB*, 10 kΩ, unbalanced, RCA pin jack |
| Number of Connectable Chairman/Delegate Units | 64 units |
| Number of Connectable Infrared Transmitter/Receiver Units | Up to 4 units (with the use of distributor, up to 16 units connectable when they are all TS-905, and up to 12 units when they are all TS-907, or TS-905 and TS-907 are used in combination) |
| Infrared Transmitter/Receiver I/O Terminal | BNC jacks |
| External Control Connection Terminal | D-sub connector (9 P, male) / USB-B selectable |
| LED Indicator | Audio signal receiving indicators 1 – 4 CH, Data signal receiving indicator, External control priority indicator, External control communication indicator, Battery indicator (flashes when a Chairman/Delegate unit’s battery nears complete discharge), Recording status indicator, Format in-progress indicator, Access indicator, Internal memory status indicator, USB memory status indicator, Remaining internal memory capacity warning indicator, Remaining USB memory capacity warning indicator, Short-circuit indicator |
| Record Switch | Recording start button, Recording stop button, Format button |
| Recording Ports | USB-A (for USB memory devices) and USB mini-B (for PCs) |
| Recording Function | Recordings can be made to a USB memory device (**) or the internal memory. Recording format: MP3 (MPEG-1 Audio Layer-3), monaural Sampling frequency: 32 kHz, Bit rate: 128 kbps |
| Function Switch | No. of open microphones setting switch: 1/2/3/4 Mic-off setting switch: TIME OUT ON/OFF Speech priority selector switch: FIRST (First-in-first-out priority), LATEST (Last-in-first-out priority), FIRST: FIXED NEXT: LATEST (Priority fixed for the first unit, and last-in-first-out for all other subsequent units) FBS switch: AUTO/OFF/EXT |
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Panel: Surface-treated steel plate, black, 30% gloss, paint |
| Weight | 2.8 kg (5.95 lb) TOA TS-820RC |
| Accessory | AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord)…1 |
| Option | Rack mounting bracket: MB-TS920 |
Tender Text for TOA conference TOA TS-820RC
- The Central Unit shall include the following functionalities. “Number of Open Microphones Setting” supports a well-organized meeting. One, two, three or four persons can be allowed to talk at any one time to prevent the confusion that could result from several participants all speaking at once. “Speech Priority Setting Function” TOA TS-820RC
- sets speech when Talk Keys on the conference units are activated exceeding the set number of authorized speakers, microphone ON/OFF operation can be set to any of the following: first-in-first-out, last-in-first-out, or last-in-first-out after 2nd unit (the microphone stays ON for the unit whose Talk Key was first pressed).
- “Auto Mic-Off Function” prevents inadvertently leaving the microphone on. With this function ON, the microphone will automatically switch itself off after a 30-second period of silence after the Talk Key was pressed.
- “Installation Status Checkup Function” for the at-a-glance confirmation of communication.
- If activated on the Central Unit, the microphone indicators in the Chairman/ Delegate Units light up.
- “Feedback Suppressor (FBS) Function” that locates up to seven feedback frequencies and sets notch filters to eliminate them. “Recording Function”
- allows to record in mp3 format and audio files can be stored to a supplied 1 GB internal memory or additional USB memory (up to 32 GB). With the use of an optional rack mounting bracket, it can be mounted in an EIA standard equipment rack (4-unit size).
- The Central Unit shall provide one external microphone input (600 ohms, -60 dBV, unbalanced, phone jack), one auxiliary input (10k ohms, -20 dBV, unbalanced, phone jack), auxiliary outputs: (1) 10k ohms, -20 dBV, unbalanced, phone jack, (1)10k ohms, -10 dBV, unbalanced, RCA jack and (1) Headphone mini jack. (1) External Control Terminal (D-sub connector 9P or USB-B).
- The optional Infrared Transmitter/Receiver shall be connectable to the BNC jacks on the rear panel. Speech volume control adjusts the microphone volume of the Chairman unit and Delegate Unit shall be located on the front panel. Priority chime volume control adjusts the output volume of the chime tone that sounds when the Priority Speech Key on the Chairman Unit is pressed which shall be located on the rear panel TOA TS-820RC.
- Power requirement shall be 100-240 VAC, 50/60 Hz, maximum 72 W power consumption (using the provided AC Power Supply) and the operating temperature range shall be 0°C to 40°C (32°F to 104°F). TOA TS-820RC
- The Central Unit shall weigh 2.8 kg (6.17 lbs) and be constructed of surface-treated steel plate with black metallic paint, semi-gloss finish with dimensions (W x H x D) of 361 x 122.6 x 179.8 mm (14.21″ x 4.83″ x 7.08″ ).
- The Central Unit shall be the TOA model TS-820RC.
- The rack mounting bracket shall be the TOA model MB-TS920. TOA TS-820RC
- The Infrared Transmitter/Receiver shall be the TOA model TS-905 or TS-907.
สอบถามเพิ่มเติม
| น้ำหนัก | 2.8 กก. |
|---|---|
| ขนาด | 17.98 × 36.1 × 12.26 เซนติเมตร |
