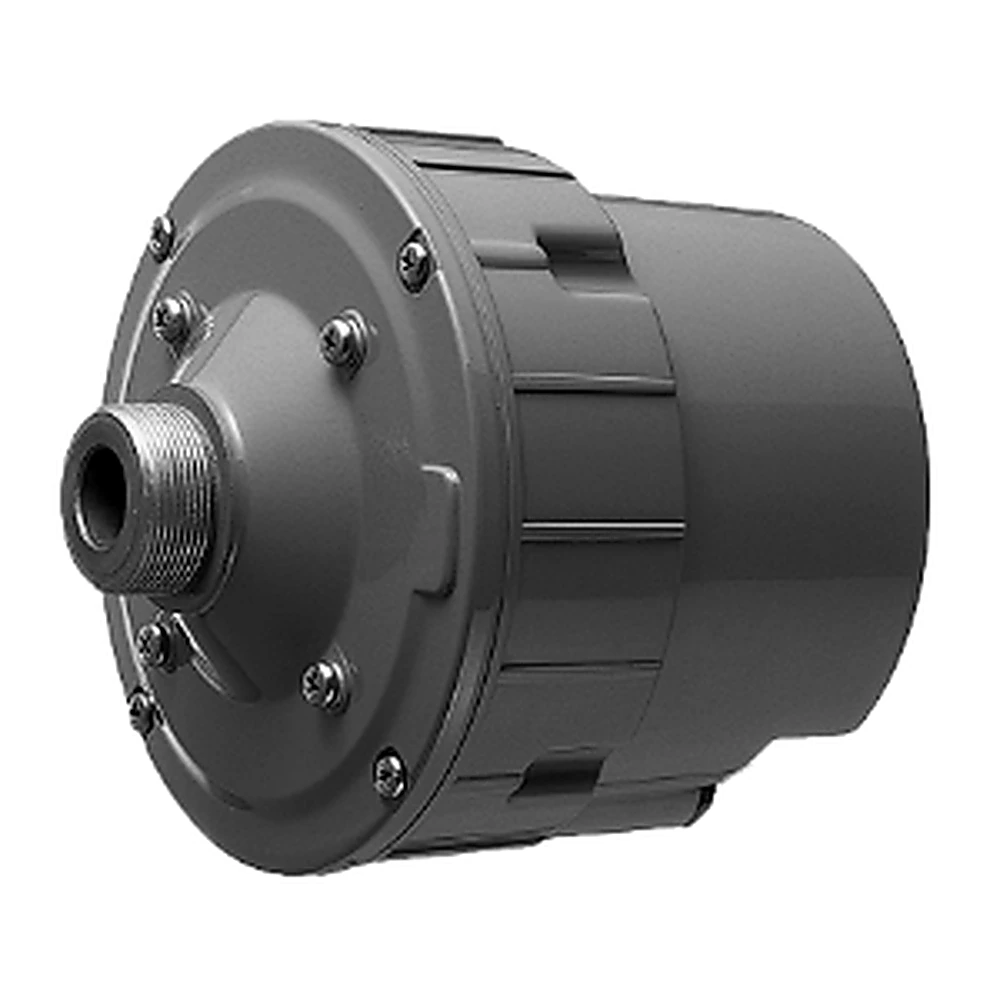

TOA TU-631M

฿1,700.00

The TU-631M is a highly intelligible driver unit suited to public address announcement applications.
Use the driver unit in combination with a suitable horn (optional).
Its powder-coated finish and stainless steel screws ensure the unit’s weatherproof capability.
Brochure : TU-631M-Horn Speaker

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

หมวดหมู่: ลำโพง

Driver Unit 30W (with Transfomer) TOA TU-631M

TOA TU-631M

คุณลักษณะของ Driver Unit 30W (with Transfomer) TOA TU-631M

The TU-631M is a highly intelligible driver unit suited to public address announcement applications.
Use the driver unit in combination with a suitable horn (optional).
Its powder-coated finish and stainless steel screws ensure the unit’s weatherproof capability.

Applicable Horns	TH-650, TH-660
Rated Input	30 W
Line Voltage	100 V line or 70 V line
Rated Impedance	100 V line: 330 Ω (30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)
Sensitivity	110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
Frequency Response	150 Hz – 6 kHz (When operated with JIS C 5504 standard horn.)
Dust/Water Protection	IP65 (When a driver is operated with a horn.)
Horn Coupling	1 – 3/8 18 threads (inch screw)
Polarity	Hot: Black, Com: White
Operating Temperature	-20°C to +60 °C (-4 °F to +140 °F) (no condensation)
Finish	Flange: Aluminum, gray, powder coating Rear cover: ABS resin, gray Screws: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm (0.24″) in diameter, 600 mm (23.62″) in length)
Dimensions	Φ139 × 149 (D) mm (Φ5.47″ × 5.87″)
Weight	1.9 kg (4.19 lb)
Option	Driver unit cover: UC-200A
