TOA WG-D100T-AS

฿6,700.00

WG-D100T ane-way digital wireless guide provides crystal clear sound without interruption, ensuring clear audio transmission at all times.
Uses a single AA battery with rechargeable options.
Individual mic input and AUX input on transmitter.
Connection of multimedia device to AUX input of transmitter to transmit media content to receivers is possible.
Brochure : WG-D100 system wireless tour guide

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

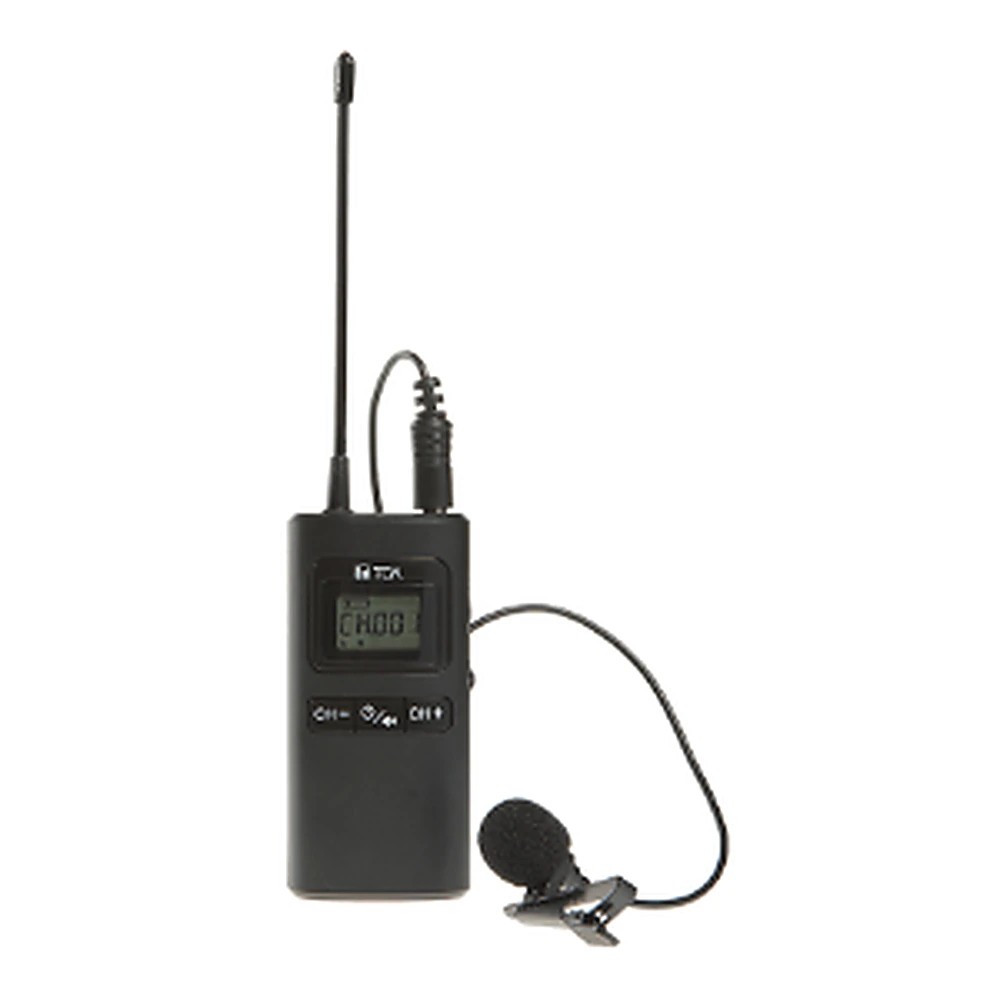

Digital Wireless Guide Transmitter TOA WG-D100T-AS

TOA WG-D100T-AS

คุณลักษณะของ Digital Wireless Guide Transmitter TOA WG-D100T-AS

Frequency	510 – 530 MHz, 748.3 – 757.7 MHz, 803.3 – 805.7 MHz
Modulation	GFSK TOA WG-D100T-AS
Audio Sampling	8 kHz 16 bit
Latency	22 ms
Frequency Response	65 Hz – 3.8 kHz
Dynamic Range	> 80 dB
Signal to Noise	> 70 dB
THD at 1kHz	< 1.5 %
Service Coverage	Indoor: 100 m / Outdoor: > 150 m
Operating Temperature	-10 °C – 50 °C
RF Output Power	10 mW
3.5mm Phone Jack	Mic In x 1 / AUX In x 1
Microphone Source	Built-in & External
Input Level	Mic: -35.5 dBV / AUX: -25 dBV
Front + & – Buttons	Channel Selector
Power Button	Power On / Off and Mute
Side Momentary 3way Tact Switch	+ : Volume Up
	Center Push: Corresponding Frequency
	– : Volume Down
Battery Life	Approx. 12 hours (data measured using 1 x AA NiMH 2600 mAh rechargeable battery)
Battery	Ni-MH type “AA” 1.2V x 1 / Alkaline “AA” 1.5V x 1
Charging Source	DC 5V Micro USB
Charging Time	Depends on battery type and capacity
Charging Current	255 ± 10 mA
LCD Display	Channel, Battery Indicator, Volume, Signal Strength
Antenna	Whip
Regulatory Compliance	CE FCC
Color	Black Frame
Dimensions	40 (W) × 83.5 (H) × 24.6 (D) mm, Antenna length not included
Weight	38.6 g (battery not included)
Accessory	Lapel Mic x 1, Belt Clip x 1, Lanyard (Black) x 1, Universal USB Adapter x 1, USB Cable x 1
