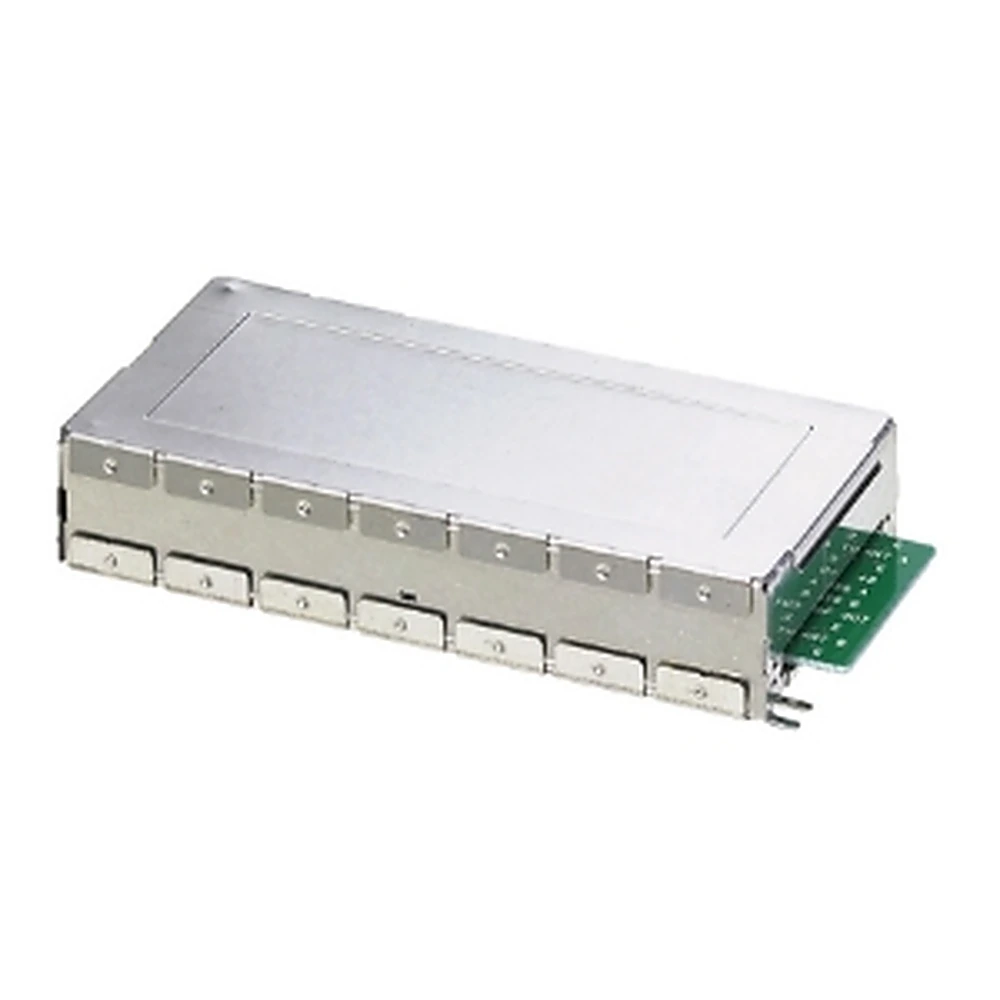

TOA WTU-4800
฿7,900.00
- The TOA Wireless Tuner Module WTU-4800 is a PLL-synthesizer controlled double superheterodyne diversity tuner module designed to be used in conjunction with UHF wireless equipment. It employs a compressor-expander system noise reduction circuit to minimize the influence of ambient RF noise.
- Brochure : TOA microphone wireless 5000series
āļŦāļĄāļēāļĒāđāļŦāļāļļ : āļāļĢāļļāļāļēāđāļāđāļāļŠāļīāļāļāđāļēāļāđāļāļāļāļģāļāļēāļĢāļŠāļąāđāļāļāļ·āđāļāļāļļāļāļāļĢāļąāđāļ āđāļāļĢāļēāļ°āļāļēāļāļĢāļēāļĒāļāļēāļĢāļāļēāļāđāļĄāđāļĄāļĩāļŠāļīāļāļāđāļēāđāļāļŠāļāđāļāļ
UHF Wireless Tuner Module Unit TOA WTU-4800
āļāļļāļāļĨāļąāļāļĐāļāļ°āļāļāļ UHF Wireless Tuner Module Unit TOA WTU-4800
- āđāļāļāđāļāđāļĨāļĒāļĩ TOA Space Diversity āļāđāļ§āļāļāļ§āļēāļĄāļāļĩāđāļĢāļ°āļŦāļ§āđāļēāļ 636-865mHz, UHF
- āļāđāļāļāļāļ§āļēāļĄāļāļĩāđāļāļģāļāļ§āļ 16 āļāđāļāļ
- āđāļŦāļĄāļēāļ°āđāļāđāļĢāđāļ§āļĄāļāļąāļ WT -4820, A- 2128AS
- āđāļāđāļĢāđāļ§āļĄāļāļąāļ WA-1830M āđāļāđ
Spec Of Product UHF Wireless Tuner Module Unit TOA WTU-4800
| Power Requirement | 7 – 12 V DC |
|---|---|
| Current Consumption | 100 mA |
| Receiving Frequency | 576 – 865 MHz (*2), UHF |
| Receiving System | Double super-heterodyne |
| Receiving Sensitivity | 80 dB or more, Signal to Noise Ratio (20 dBΞV input, 40 kHz deviation) |
| Antenna Input Impedance | 75 ÎĐ |
| Diversity System | Space diversity |
| Channel Selectable | 16 channels |
| Squelch System | Noise SQ |
| Squelch Sensitivity | 17 dBΞV |
| Output | 0 dB (*1) (maximum deviation, 2.2 kÎĐ load) |
| Harmonic Distortion | 1% or less |
| Frequency Response | 100 Hz – 12 kHz, Âą3 dB |
| Operating Temperature | -10 â to +50 â (14 Fã to 122 Fã) |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Surface-treated steel plate |
| Dimensions | 60 (W) Ã 25 (H) Ã 139 (D) mm (2.36″ Ã 0.98″ Ã 5.47″) |
| Weight | 130 g (0.29 lb) |
| Accessory | Driver for channel changingâĶâĶ1 |
āļŠāļāļāļāļēāļĄāđāļāļīāđāļĄāđāļāļīāļĄ
| āļāđāļģāļŦāļāļąāļ | 0.13 āļāļ. |
|---|---|
| āļāļāļēāļ | 13.9 × 6 × 2.5 āđāļāļāļāļīāđāļĄāļāļĢ |
