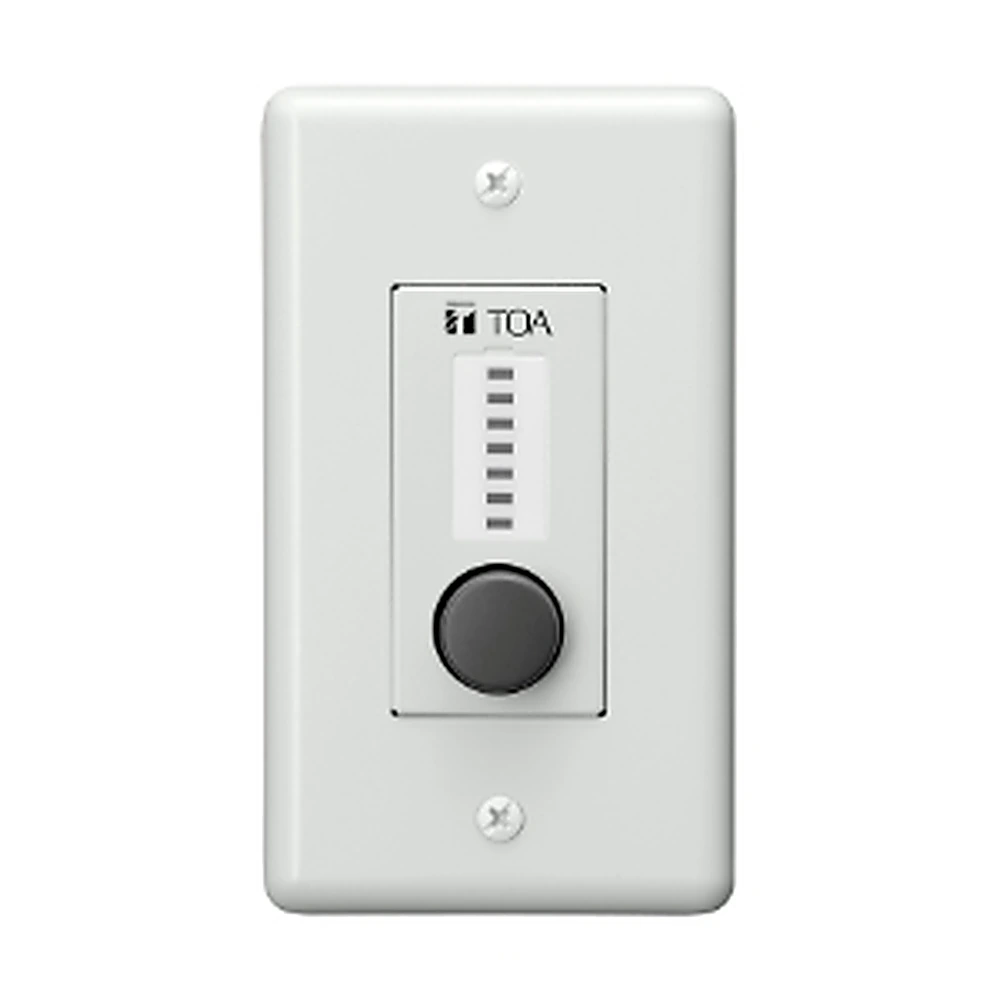

Remote Panel (9000 Series, M-864D) TOA ZM-9012
คุณลักษณะของ Remote Panel (9000 Series, M-864D) TOA ZM-9012
- Rotary Encoder can be assigned to control any input or output volume
- Multiple input or outputs may be “ganged” for Master volume terminals
- Multi-segment LED indicator provides visual volume level status
- Brochure : Module matrix mixer M-9000 series
spec of product Remote Panel (9000 Series, M-864D) TOA ZM-9012
Power Source | 24 V DC (supplied from RC-001T or M-864D) |
---|---|
Current Consumption | 50 mA or less |
Terminal | Removable terminal block (10 pins) |
Connection Cable | Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP) |
Operating Section | 1 volume control |
Indicator | Level indicators (green LEDs) |
Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
Operating Humidity | 35 % to 80 %RH (no condensation) |
Finish | Surface-treated steel plate, white, paint |
Dimensions | 72 (W) × 127 (H) × 57.5 (D) mm (2.83″ × 5″ × 2.26″) |
Weight | 208 g (0.46 lb) |
Accessory | Box mounting screw (No.6-32UNC × 30) …2, Box mounting screw (M4 × 30) …2, Panel mounting screw …2, Removable terminal plug (10 pins) …1 |
