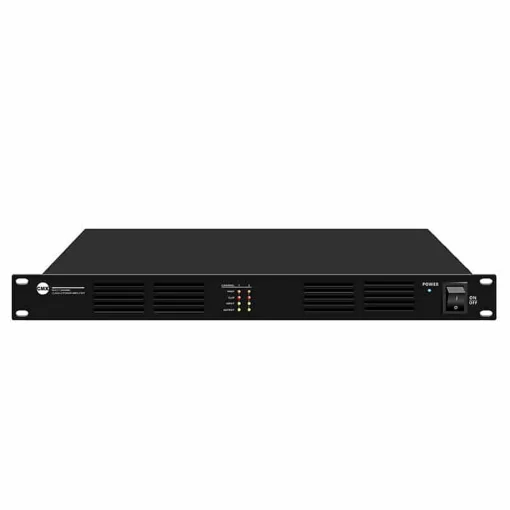

CMX DA-4120

เครื่องขยายเสียง CMX DA-4120

Features เครื่องขยายเสียง CMX DA-4120 :

• Switching power technology digital power amplifier

• Class-D PA power amplifier of minimum power consumption

• 1RU height for less rack space and less heat generation

• Four channel power amplifier into 19” rack mount unit

• Rated power output at 4x120W

• Four channel separate speaker outputs 8Ω/100V

• Balanced line input by phoenix connector for four channels

• Each input with separate gain control.

• Each four channel with high-cut filter.

• Built-in auto standby feature to save power consumption

• Separate four channel indicators for protection, clip, input and output

• Complete short circuit, overload, high temp, clip and DC protection

• Wide AC input switchable between 115V and 230V

• With 24V DC input.

Description:

• The DA range digital class-D power amplifier is of switching power technology, which features of minimum power

• consumption and much higher efficiency up to 85%, moreover it helps to save installation rack space, generate less heat

• so as to extend its performance life span as a result.

• The DA-4120 is of rated power output at 4×120W, so it could be used as four zone multiple sources public address

• system at minimum cost. The versatile loudspeaker outputs of both high impedance 100V & low impedance 8ohms

• enable it meet both PA fixed installation and Hi-fi stereo sound installation jobs.

• There are four balanced inputs by phoenix connector for each channel with gain control. Four separate zone speaker

• outputs both by 100V & 8ohms. The built-in four channel separate high-pass filters could be enabled or disabled through

• the dip switch pre-setting.

• Automatic standby enable after no detection of signal input for one minute, immediately wake up at sight of any input.

• Visual working status indicators include protection, clip, input and output for easy supervision. With complete short

• circuit, overload, high temp, clip and DC protection.

• Switchable AC power supply from 115V to 230V, thus it support worldwide sound system installation. DC24V operation is included.

Specification:

ไฟล์เอกสาร PDF : CMX DA-4120

สอบถามเพิ่มเติม
