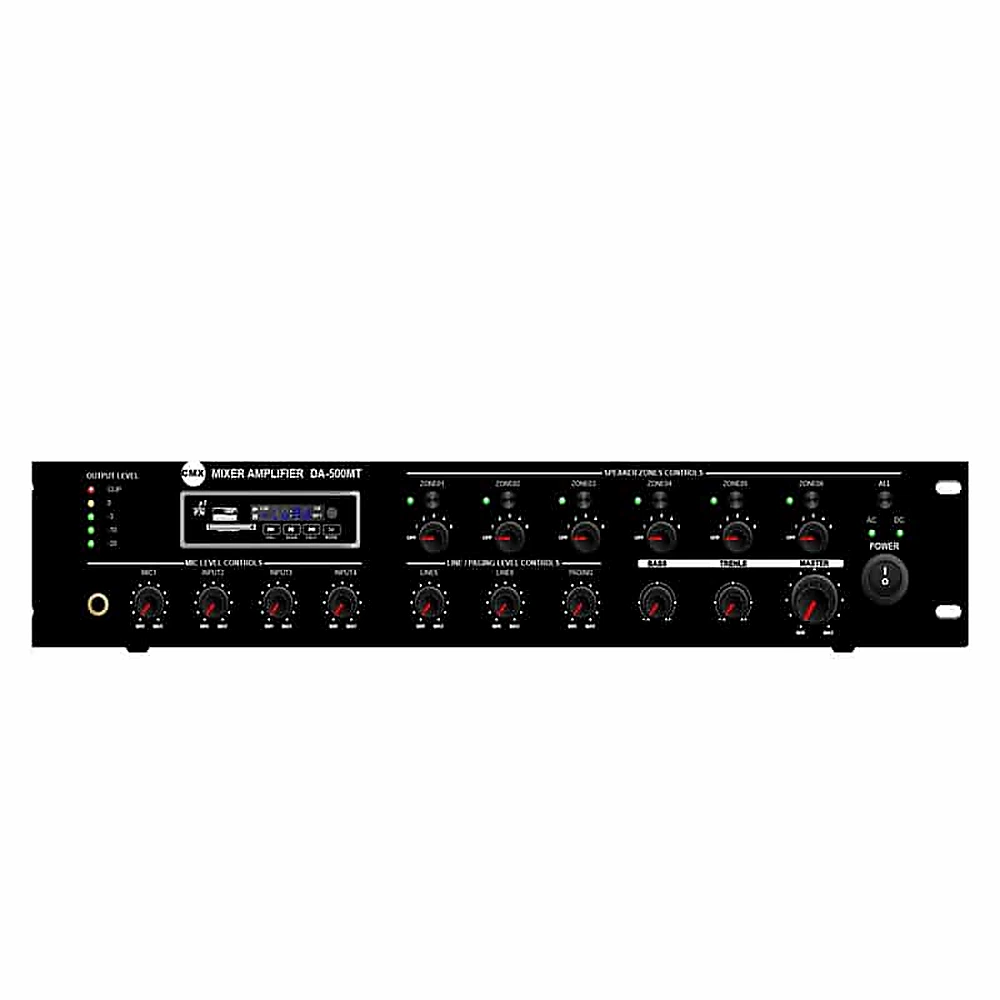

เครื่องขยายเสียง CMX DA-500MT
Features เครื่องขยายเสียง CMX DA-500MT :
- Public address (PA) 6 zone commercial mixer power amplifier.
- 19” rack mount amplifier of 2U height.
- Rated outputs of 60W, 120W, 240W, 350W to 500W.
- 6 zone speaker outputs of 100V or 70V.
- Six zone speaker outputs with independent volume control.
- Built-in MP3 player by USB & SD and FM tuner.
- Four microphone inputs, Mic1(6.3mm) and Mic/Line input 2-4 (XLR).
- Line 1-2 inputs on rear panel by RCA.
- EMC input on rear panel with highest priority by RCA.
- One amplifier capacity of 6 remote paging microphones DA-500RM up to 300 meters.
- Microphone1 of VOX features of highest input priority except EMC input.
- Volume control for Mic1-4 and line 1-2, bass & treble and zone volume control on front panel.
- AC and DC Power, protection, clip six zone status indicators and output level meters.
- Overload, short circuit and high temp protection.
- AC 230V and DC24V operation system.
Specification
Model |
DA-500MT |
Description |
PA 6 Zone Mixer Amplifier with Mp3 & Tuner |
Rated Power Output |
500W RMS |
Speaker Output |
70V, 100V and 4-16Ω |
Input |
Mic1-4: 2.5mV, Line1-2: 250mV; EMC: 250mV |
Frequency Response |
80-16KHz |
THD |
<0.1% |
S/N Ratio |
>70dB |
Protection |
High temp, short circuit, clip & overload protection |
Power Supply |
AC230V or AC110V, 50-60Hz |
Power Consumption |
650W |
Dimension |
418(W)×318(D)×88(H)mm |
Weight |
14.5kg |
Warranty |
5 years |
