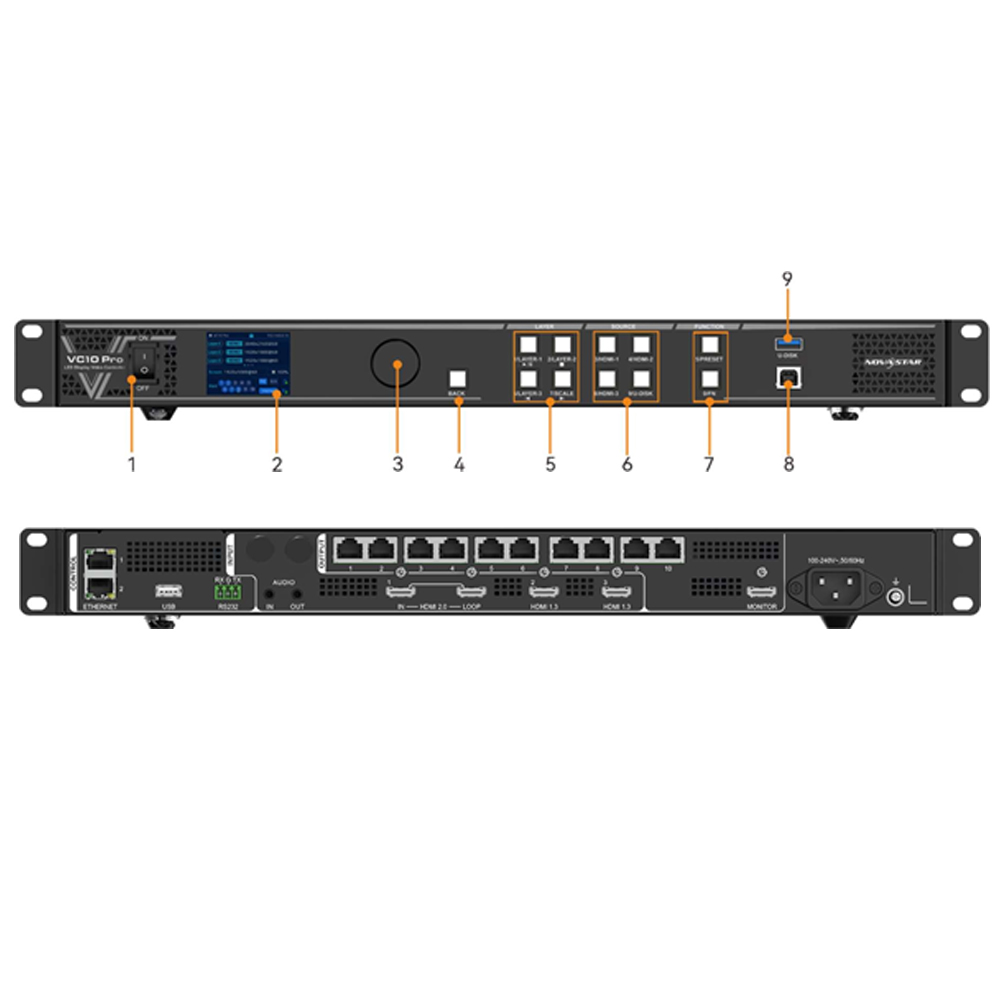

NovaStar VC10 Pro
฿48,000.00
- เครื่องรับส่ง สัญญาณภาพ NovaStar VC10 Pro
- รองรับความละเอียด 6.5 ล้านพิกเซล
- มีช่องเชื่อมต่อ RJ45 10 ช่อง
- มี port สำหรับส่งสัญญาณ HDMI
- เหมาะสำหรับจอ LED FULL COLOR DISPLAY ขนาดใหญ่
- Brochure : VC10 Pro All-in-One Controller Specifications-V1.1.0
หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก
NovaStar VC10 Pro VDO Processor
- VC10 Pro เป็นคอนโทรลเลอร์แบบออลอินวัน ที่รวมฟังก์ชันการประมวลผลวิดีโอและการควบคุมวิดีโอไว้ในอุปกรณ์เดียว สามารถจัดการพิกเซลได้สูงสุดถึง 6.5 ล้านพิกเซล โดย VC10 Pro สามารถแสดงผลได้ที่ความกว้างสูงสุด 10,240 พิกเซล และความสูงสูงสุด 8,192 พิกเซล ทำให้เหมาะอย่างยิ่งสำหรับการควบคุมจอ LED อัลตร้าไวด์และอัลตร้าไฮในสถานที่
- VC10 Pro มีความสามารถในการรับและประมวลผลสัญญาณวิดีโอที่ทรงพลัง รองรับความละเอียดสูงสุด 4K×2K@60Hz สำหรับอินพุตวิดีโอ สามารถจัดการอินพุตสัญญาณวิดีโอได้หลายช่อง และมีคุณสมบัติเช่น 6 เลเยอร์ การปรับขนาดเอาต์พุต และการปรับเทียบความสว่างและสีระดับพิกเซล ฟังก์ชันเหล่านี้รวมกันเพื่อมอบคุณภาพการแสดงภาพที่ยอดเยี่ยม
- ด้วยตัวเลือกการควบคุมที่หลากหลาย VC10 Pro สามารถใช้งานได้ผ่านปุ่มหมุนที่แผงด้านหน้า NovaLCT และ Unico ทำให้คุณได้รับประสบการณ์การควบคุมที่สะดวกและง่ายดาย
- VC10 Pro บรรจุอยู่ในตัวเรือนระดับอุตสาหกรรม ซึ่งเมื่อรวมกับความสามารถในการประมวลผลและส่งสัญญาณวิดีโออันทรงพลัง ทำให้มีความทนทานและเหมาะสมอย่างยิ่งสำหรับสภาพแวดล้อมการทำงานที่ซับซ้อน VC10 Pro เหมาะอย่างยิ่งสำหรับระบบเช่าระดับกลางและระดับสูง ระบบควบคุมเวที และจอ LED ความละเอียดสูง
Feature of NovaStar VC10 Pro
- A comprehensive range of input connectors
- 1x HDMI 2.0 (IN & LOOP)
- 2x HDMI 1.3
- 1x 3G-SDI (IN & LOOP, optional)
- 1x USB 3.0 (Play images or videos saved in a USB drive.)
- Output connectors NovaStar VC10 Pro
- 10x Gigabit Ethernet ports
- A single device supports up to 6.5 million pixels, delivering a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
- 1x HDMI 1.3
- For monitoring display.
- Audio input and output
- Audio input accompanied with HDMI sources
- 3.5 mm independent audio input and output
- Adjustable output volume
- Free topology
- Flexible screen configuration without rectangle restriction on a single Ethernet port.
- The maximum circumscribed rectangle of the large screen loaded by the device must be within the device loading capacity.
*Specific receiving cards are required. NovaStar VC10 Pro
- Output synchronization
- An input source connected to the device’s video connector can be used as the sync source to ensure the output images of all cascaded units in sync.
- EDID management
- Import and export EDID files.
- Easy preset saving and loading
- Up to 256 user-defined presets supported
- Load a preset by simply pressing one button.
- Save, overwrite and delete a preset.
- Preview the layer layout saved in the preset. NovaStar VC10 Pro
- Multiple layer display
- Supports 6*2K×1K layer resources.
- Users can create layers in three different specifications
- 4K×2K, 4K×1K, and 2K×1K. These layers will use 4x, 2x, and 1x 2K layer resources respectively,
- depending on the capacity of the input source connector used to open the layers.
- Adjustable layer size and position
- Adjustable layer priority
- Adjustable aspect ratio
- OSD function
- Supports the text OSD and image OSD. For the text OSD, four components are available, including static text OSD, dynamic text OSD, weather OSD and time OSD.Supports customization of the text content, font, font color, size, opacity and background color.Supports configuration of the scrolling direction, initial position and speed for the dynamic text OSD.
- 3D function
- Connect the EMT200 Pro 3D emitter to the device’s Ethernet port, and use the compatible 3D glasses to enjoy a 3D visual experience.Note: When the 3D function is enabled and the video source format is Side-by-Side or Top-and-Bottom, the device output capacity will be halved.
- Personalized image scaling
Supports three kinds of image scaling modes, including full screen, pixel to pixel and custom.
Based on SuperView III image quality processing technologies to provide stepless output scaling.
Powerful video processing
- One-click full screen display
- Free input cropping
- Color adjustment NovaStar VC10 Pro
- Supports output color management, including brightness, saturation, contrast and hue.
- Pixel level brightness and chroma calibration
- Work with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED,
- which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
- The function of displaying image on screen for test is also supported.
USB playback, timesaving and effortless
-
- Supports USB playback for instant plug-and-play
Multiple device modes and operation modes, convenient and efficient
-
- User mode selection supported
- Standard: Only some LCD menu options are displayed, including screen brightness, layer settings, preset settings, display control, USB playback, audio settings, user mode and about us.
- Professional: Display all LCD menu options.
- Multiple control options
- Device front panel knob
- Unico NovaStar VC10 Pro
- Both client software and web page control are supported.
- NovaLCT
Data saving after power failure and backup design, stable and reliable
- End-to-end backup
- Backup between devices
- Backup between input sources
- Backup between Ethernet ports
- Dual receiving card backup
- Ethernet port backup test
- Test whether the pre-stored images, backup Ethernet ports and devices take effect without plugging and unplugging the Ethernet cables.
- Data saving after power failure
- After a normal shutdown or unexpected power outage, reconnecting the power will automatically restore the previously saved settings on the device.
- 24/7 rigorous stability test under extreme high and low temperatures proved robust stability and reliability.

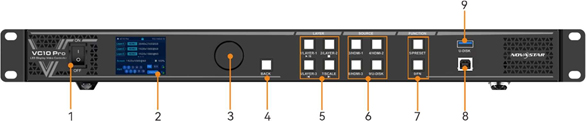

Front Panel NovaStar VC10 Pro
| No. | Area | Function |
|---|---|---|
| 1 | Power switch | Power switch NovaStar VC10 Pro
• On: Power on the device. • Off: Power off the device. |
| 2 | LCD screen | Display the device status, menus, submenus and messages. |
| 3 | Knob | • Rotate the knob to select a menu item or adjust the parameter value.
• Press the knob to confirm the setting or operation. |
| 4 | Back button | Exit the current menu or cancel the operation. |
| 5 | Layer buttons | Layer button description:
• LAYER 1~3: Open or close a layer, and show the layer status. − On (blue): The layer is opened. − Flashing (blue): The layer is being edited. − Off: The layer is closed. NovaStar VC10 Pro • When you play media files saved in a USB drive, the layer buttons are used to control the playback. − LAYER-1: This button is used to play or pause the files. − LAYER-2: This button is used to stop the playback. − LAYER-3: This button is used to play the previous file. |
| • SCALE: A shortcut button for the full screen function. Press the button to make the layer of the lowest priority fill the entire screen.
− On (blue): Full screen scaling is turned on. − Off: Full screen scaling is turned off. • When you play media files saved in a USB drive, this button is used to play the next file. |
||
| 6 | Input source buttons | • HDMI 1~3: Show the input source status and switch the layer input source.
− On (blue): The input source has a signal. − Flashing (blue): The input source has no signals, but it is used by a layer. − Off: The input source is not used, and no input signal is accessed. • U-DISK: USB source button Press the button to switch to a USB source, while hold down the button to enter the Input Settings screen. On the home screen, when layer 1 is opened, you can press the input source button to quickly switch the input source for layer 1. |
| 7 | Function buttons | • PRESET: Access the preset settings menu.
• FN: A custom function button |
| 8 | USB | Connect to the PC installed with NovaLCT for device control. |
| 9 | U-DISK | 1x USB 3.0 NovaStar VC10 Pro
• Supports USB playback. − Single-partition USB drive supported − File system: NTFS, FAT32 and exFAT − Max. width and height of media files Width: 3840 pixels, height: 2160 pixels − Picture format: jpg, jpeg, png and bmp − Decoded image resolution: 3840×2160 or lower − Video format: mp4, mkv, mov, avi, flv, m4v, mpg, mpeg, ts − Video coding: H.264, H.265, MPEG-2, MPEG-4 − Max. video frame rate: H.264: 3840×2160@30fps, H.265: 3840×2160@60fps MPEG-2/MPEG-4: 1920×1080@60fps − Max bitrate: H.264/H.265: 100Mbps MPEG-2/MPEG-4: 50Mbps − Audio coding: AAC, AC3, DTS, MP3, DVD, DVD_LPCM, MP2, OPUS − Audio sampling rate: opus: 24kHz, 48kHz Other formats: 22.05kHz to 94kHz |
| − Transition effect of image switching: Ripple, zoom in, cut out, flip, blinds, H wipe, V wipe, cube, dissolve, grid, swapping, scroll, fade in/out, twirl, heart trans, doorway, perspective triangle, disappear, bounce, pinwheel, random
The resolution of a USB source is fixed at 1920×1080@60Hz. |
Rear Panel of NovaStar VC10 Pro
| Input Connectors | ||
|---|---|---|
| Connector | Qty | Description |
| HDMI 2.0 | 1 | 1x HDMI 2.0 NovaStar VC10 Pro
• Max. input resolution: 4096×2160@60Hz • Supported frame rate: 23.98/24/25/29.97/30/47.95/48/50/56/59.94/60/70/71.93/72/75/85/100/119.88/120/144 • Compatible with HDMI 1.4 and HDMI 1.3 video inputs • HDMI 2.0-1 loop out supported • Custom resolutions supported − Max. width: 8192 pixels (8192×1080@60Hz) − Max. height: 8188 pixels (1080×8188@60Hz) • Supports 8-bit/10-bit/12-bit video inputs. • Supported color space/sampling rate: RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2/YCbCr 4:2:0. • HDCP 1.4 and HDCP 2.2 supported • Accompanied audio supported |
| • Does not support interlaced signal inputs. | ||
| HDMI 1.3 | 2 | 2x HDMI 1.3
• Max. input resolution: 1920×1080@60Hz • Supported frame rate: 23.98/24/25/29.97/30/47.95/48/50/56/59.94/60/70/71.93/72/75/85/100/119.88/120 • Custom resolutions supported − Max. width: 2048 pixels: 2048 pixels (2048×1080@60Hz) − Max. height: 2048 pixels 2048 pixels (1080×2048@60Hz) • Supports 8-bit video inputs. • HDCP 1.4 supported • Supported color space/sampling rate: RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 • Accompanied audio supported • Does not support interlaced signal inputs. |
| 3G-SDI (Optional) |
1 | 1x 3G-SDI NovaStar VC10 Pro
• ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported • Supported protocols: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 425M-A and SMPTE 425M-B • Max. input resolution: 1920×1080@60Hz • 3G-SDI loop output supported • Deinterlacing processing supported • 10-bit video inputs supported • Does not support input resolution and bit depth settings. |
| *Connector capacity limitations | • SL
− Standard resolution: 1920×1080@60Hz − Custom max width: 2048 (2048×1080@60Hz) − Custom max height: 2048 (1080×2048@60Hz) • DL − Standard resolution: 3840×1080@60Hz/3840×2160@30Hz − Custom max width: 4096 (4096×1080@60Hz) − Custom max height: 3840 (1080×3840@60Hz) • 4K − Standard resolution: 4096×2160@60Hz/8192×2160@30Hz − Custom max width: 8192 (8192×1080@60Hz) − Custom max height: 8188 (1080×8188@60Hz) |
|
| If the resolution of an input source is larger than the max width limit of the connector capacity, you need to switch the connector capacity to ensure that the input source can be processed normally. | ||
| Output Connectors | ||
| Connector | Qty | Description NovaStar VC10 Pro |
| Ethernet ports | 10 | • 10x Gigabit Ethernet ports, max device loading capacity: 6.5 million pixels
• Max. width: 10,240 pixels, max. height: 8192 pixels • Maximum capacity of a single port: 8bit: 650,000 pixels • Supported frame rate: 23.98/24/25/29.97/30/47/48/50/59.94/60/71.93/72/75/85/95/100/119.88/120/144 |
| HDMI 1.3 | 1 | For monitoring display
Output resolution: 1920×1080@60Hz (fixed) |
| Audio Connectors | ||
| Connector | Qty | Description |
| AUDIO | 2 | 1x AUDIO input, 1×AUDIO output
• 3.5 mm standard audio input and output connectors • Audio sampling rate up to 48 kHz |
| Control Connectors | ||
| Connector | Qty | Description NovaStar VC10 Pro |
| ETHERNET | 2 | • Connect to the control PC for device control and firmware upgrade via Unico.
Status LEDs: NovaStar VC10 Pro • The top left one indicates the connection status. − On: The port is properly connected. − Flashing: The port is not properly connected, such as loose connection. − Off: The port is not connected. • The top right one indicates the communication status. − On: No data communication. − Flashing: The communication is good and data is being transmitted. − Off: No data transmission |
| USB | 1 | 1x USB 2.0
• Cascade the devices via the USB port and Ethernet port. Up to 5 devices can be cascaded. • Update the firmware via the USB drive. • Import or export device logs and EDID files. |
| RS232 | 1 | 3-pin connectors
• RX: Receive signals. • TX: Send signals. • G: Ground |

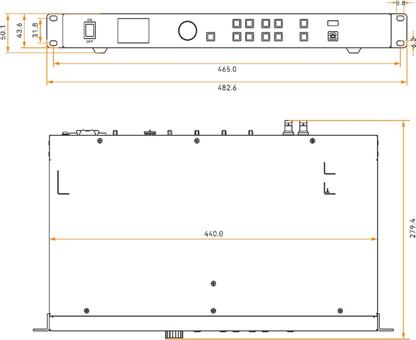

Dimension of NovaStar VC10 Pro
| Electrical Parameters | Power connector | 100-240V~, 50/60Hz NovaStar VC10 Pro |
| Rated power consumption | 46 W | |
| Operating Environment | Temperature | 0°C to 50°C |
| Humidity | 5% RH to 85% RH, non-condensing | |
| Storage Environment | Temperature | -10°C to 60°C |
| Humidity | 5% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions | 482.6 mm × 279.4 mm × 50.1 mm |
| Net weight | 3.6 kg | |
| Total weight | 25 kg Up to 5 devices are packed. |
|
| Packing Information | Carrying case | 565 mm × 328 mm × 88 mm |
| Accessories | 1x Power cord, 1x Ethernet cable, 1x HDMI cable, 1x USB cable, 1x Phoenix connector, 1x Quick Start Guide, 1x Certificate of Approval | |
| Packing box | 586 mm × 353 mm × 465 mm Up to 5 devices can be packed into one packing box. |
|
| Noise Level (typical at 25°C/77°F) | 45 dB (A) | |
สอบถามเพิ่มเติม NovaStar VC10 Pro
| น้ำหนัก | 25 กก. |
|---|---|
| ขนาด | 565 × 328 × 88 เซนติเมตร |
