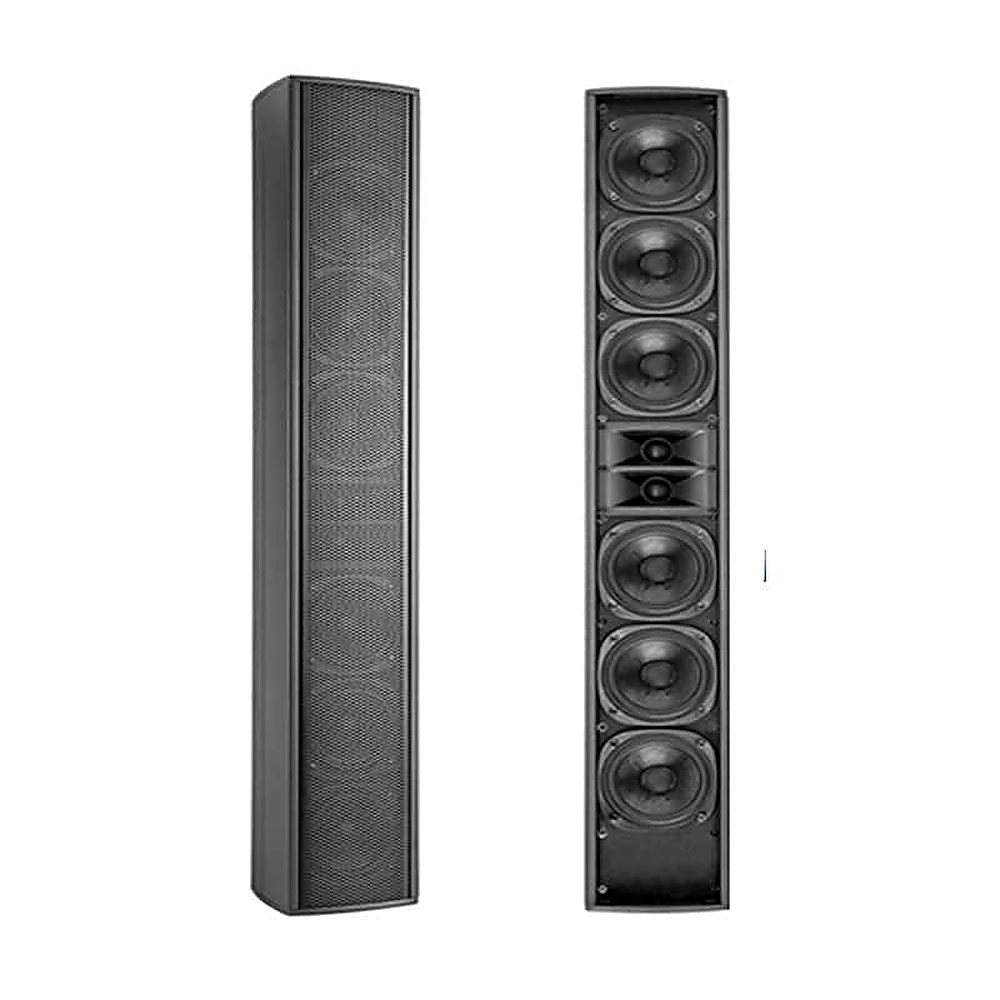

ลำโพง CMX LAS-H6L

Features ลำโพง CMX LAS-H6L :
- 4” Line Array Speaker System
- Indoor & outdoor professional installation loudspeakers
- Enhanced directional focus and even sound coverage
- Ideal for conference room, worship area and railway stations
- Power handling from 120 watts to 240 watts
- Rated impedance of 8 Ohms.
- 100V/70V matching transformer optional (LAS-H6S)
- 6 units of 4” special strengthened driver unit and one tweeter
- Waterproof removable speakon input connector
Description ลำโพง CMX LAS-H6L :
- CMX H rang Line Array Speakers come with such sound enhancing benefits as clear sound
- excellent directionality of focus on the listening area, and transmission of clear, even sound over a distance
- thanks to a low degree of sound attenuation.
- These speakers are well-suited for medium-sized mainly speech applications where clear
- uniformly dispersed sound that is audible at a distance is essential, such as conference centers
- houses of worship and railway stations, or venues with highly reflective interior surfaces.
- The line array speakers work to provide high quality sound even when an equalizer is not used.
- The speaker units come in a slim, energy-efficient and cost-effective design, with a body that is narrower than earlier versions, so they are well-suited to a wide range of venue indoor & outdoor.
Specification
| Model |
| LAS-H6L |
| Description |
| Line Array Speaker System |
| Enclosure |
| Bass-reflex type |
| Power Handling Capacity |
| Continuous program: 120-240 Watts |
| Rated Impedance |
| 8 Ohms |
| Taps at 100V |
| Yellow: Com, Blue: 83.33Ω & Brown: 41.67Ω |
| Sensitivity(1W/1m) |
| 96dB |
| Frequency Response |
| 90-20KHz |
| Directivity Angle |
| Horizontal: 90゜, Vertical: 20゜ |
| Speaker Component |
| 4″× 6 units & 1″× 1unit |
| Input Connector |
| Removable Speakon input connector |
| Finish |
| Aluminum, black |
| Dimensions |
| 885(W) × 132(H) × 130(D) mm |
| Weight |
| 7.5kg |
| Option |
| LAS-H6S model of 100V/70V matching transformer |
