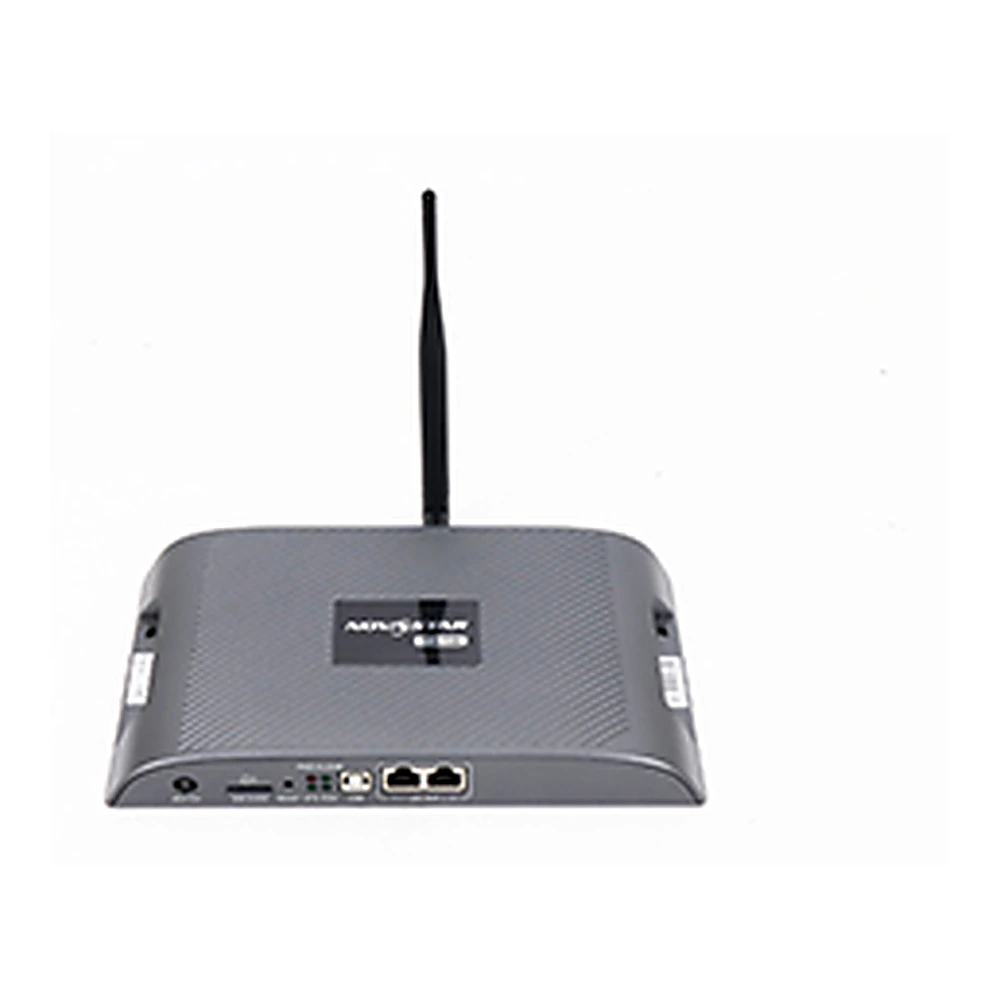

NovaStar TB40

฿15,000.00

เครื่องรับส่งสัญญาณภาพแบบไร้สาย NovaStar TB40
รองรับการใช้งานร่วมกับ จอ LED full color display
รองรับการใช้งานร่วมกับ sim 4G และ ระบบเน็ตเวิร์ค
Brochure : Novastar TB40 LED Screen Video Multimedia Players Specification

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

รหัสสินค้า: MYHA12121N1030008513 หมวดหมู่: VDO processor, NovaStar

CMX LAS-H6L Original price was: ฿30,000.00.Current price is: ฿25,000.00.
ITC LA-2650 LA-1200 Price range: ฿19,250.00 through ฿30,660.00
ซอฟต์แวร์สื่อการเรียนการสอน CAI คณิตศาสตร์ ป4 ฿5,000.00
VERTEX EASY FOLD SCREEN 180 INCH FRONT REAR Original price was: ฿58,000.00.Current price is: ฿55,000.00.
Kystar KLS8Pro ฿60,000.00
TOA HS-1500WT ฿19,300.00
IQ board 86 นิ้ว 4K ฿180,000.00
ITC KF-D12H Price range: ฿119,000.00 through ฿131,250.00
จอ led ขนาดใหญ่ P0.9 ภายใน ฿800,000.00
VERTEX EASY FOLD 150 INCH FRONT Original price was: ฿38,000.00.Current price is: ฿36,500.00.

สารบัญ

NovaStar TB40 wireless LED sending box

NovaStar TB40

คุณลักษณะเครื่อง รับ – ส่ง สัญญาณภาพไร้สาย NovaStar TB40

เป็นเครื่องที่ใช้สำหรับ รับ – ส่ง สัญญาณภาพแบบไร้สายสำหรับใช้งานร่วมกับ จอ LED Full color display
มีช่องสัญญาณ sensor 1,2 / HDMI in x 1 , HDMI out x 1/ Ethernet x 1/ com1 x 1, com 2 x 1/USB3.0 x 1, Audio out x 1
ช่องสัญญาณ LED OUT 1,2 , USB type B x 1, sim card x 1
มีปุ่ม switch สำหรับสลับโหมด
มีไฟแสดงสถานะ PWR CLOUD SYS, RUN
มีหน่วยความจำภายใน 8GB
มีหน่วยความจำหลัก 2 GB
มีหน่วยประมวลผลกลางแบบ 4 แกน ARM A55 ความเร็ว 1.8 GHz
รองรับการเข้ารหัสภาพ H.264/H.265 4K@60Hz
รองรับการใช้งานแบบ Synchronous และ Asynchronous โหมด
รองรับการใช้งานร่วมกับ ซิมการ์ด แบบ 4G และ 5G
รองรับการความละเอียดภาพ 1,300,000 พิกเซล ด้านกว้าง 4096 พิกเซล ด้านสูง 4096 พิกเซล
พร้อมช่องรับส่งสัญญาณแบบ gigabit
รับประกัน 1 ปี

Introduction NovaStar TB40

The TB40 is a new generation of multimedia player created by NovaStar for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet.

Working with our superior cloud-based publishing and monitoring platforms, the TB40 enables users to manage LED displays from an Internet-connected device anywhere, anytime.

Support for multi-screen synchronous playback and synchronous and asynchronous modes makes this multimedia player a perfect fit for a wide range of applications .

Thanks to its reliability, ease of use, and intelligent control, the TB40 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, mirror displays, retail store displays, door head displays, shelf displays, and much more.

Feature NovaStar TB40

Output

Loading capacity up to 1,300,000 pixels Maximum width: 4096 pixels Maximum height: 4096 pixels
2x Gigabit Ethernet ports These two ports serve as primary by default. Users can also set one as primary and the other as backup.
1x Stereo audio connector The audio sample rate of the internal source is fixed at 48 kHz. The audio sample rate of the external source supports 32 kHz, 44.1 kHz, or 48 kHz. If NovaStar’s multifunction card is used for audio output, audio with a sample rate of 48 kHz is required.
1x HDMI 1.4 connector Maximum output: 1080p@60Hz, support for HDMI loop
Input
1x HDMI 1.4 connectorIn synchronous mode, video sources input from this connector can be scaled to fit the entire screen automatically.
2x sensor connectorsConnect to brightness sensors or temperature and humidity sensors.
Control
1x USB 3.0 (Type A) portAllows for playback of content imported from a USB drive and firmware upgrade over USB.
1x USB (Type B) port Reserved
1x Gigabit Ethernet portConnects to a LAN, public network, or computer for content publishing and screen control.
Performance
Powerful processing capacity
− Quad-core ARM A55 processor @1.8 GHz

− Support for H.264/H.265 4K@60Hz video decoding

− 1 GB of onboard RAM

− 16 GB of internal storage
Flawless playback2x 4K, 6x 1080p, 10x 720p, or 20x 360p video playback
Functions
All-round control plans
− Enables users to publish content and control screens from a computer, mobile phone, or tablet.

− Allows users to publish content and control screens from anywhere, anytime.

− Allows users to monitor screens from anywhere, anytime.
Switching between Wi-Fi AP and Wi-Fi STA
In Wi-Fi AP mode, the user terminal connects to the built-in Wi-Fi hotspot of the TB40. The default SSID is “AP+Last 8 digits of SN” and the default password is “12345678”.

Front Panel NovaStar TB40

− In Wi-Fi STA mode, the user terminal and the TB40 are connected to the Wi-Fi hotspot of a router.

Synchronous and asynchronous modes
− In asynchronous mode, the internal video source works.

− In synchronous mode, the video source input from the HDMI connector works.
Synchronous playback across multiple screens
− NTP time synchronization

− GPS time synchronization (The specified 4G module must be installed.)
Support for 4G modules NovaStar TB40
The TB40 ships without a 4G module. Users have to purchase 4G modules separately if needed.
Network connection priority: Wired network > Wi-Fi network > 4G network
When multiple types of networks are available, the TB40 will choose a signal automatically according to the priority NovaStar TB40.

front panel

Name	Description
SWITCH	Switches between synchronous and asynchronous modes Staying on: Synchronous mode Off: Asynchronous mode
SIM CARD	SIM card slot NovaStar TB40 Capable of preventing users from inserting a SIM card in the wrong orientation
RESET	Factory reset button Press and hold this button for 5 seconds to reset the product to its factory settings.
USB	Reserved USB (Type B) port
LED OUT	Gigabit Ethernet outputs NovaStar TB40

back panel

Name	Description
SENSOR	Sensor connectors Connect to light sensors or temperature and humidity sensors.
HDMI	HDMI 1.4 connectors OUT: Output connector, support for HDMI loop IN: Input connector, HDMI video input in synchronous mode In synchronous mode, users can enable full-screen scaling to adjust the image to fit the screen automatically. Requirements for full-screen scaling in synchronous mode: 64 pixels ≤ video source width ≤ 2048 pixels Images can only be scaled down and cannot be scaled up.
WiFi	Wi-Fi antenna connector Support for switching between Wi-Fi AP and Wi-Fi STA
ETHERNET	Gigabit Ethernet port Capable of connecting to a LAN, public network, or computer for content publishing and screen control Indicator status description: The yellow stays on: The TB40 is connected to a fast Ethernet cable and the connection is available. The green and yellow stay on simultaneously: The TB40 is connected to a Gigabit Ethernet cable and the connection is available.
COM2	GPS antenna connector NovaStar TB40
USB 3.0	USB 3.0 (Type A) port Allowing for playback of content imported from a USB drive and firmware upgrade over USB The Ext4 and FAT32 file systems are supported. The exFAT and FAT16 file systems are not supported.
COM1	4G antenna connector
AUDIO OUT	Audio output connector
12V—2A	Power input connector

Status of light for Nova TB40

Name	Color	Status	Description
PWR	Red	Staying on	The power supply is working properly.
SYS	Green	Flashing once every 2s	The TB40 is functioning normally.
		Flashing once every second	The TB40 is installing the upgrade package.
		Flashing once every 0.5s	The TB40 is downloading data from the Internet or copying the upgrade package.
		Staying on/off	The TB40 is abnormal.
CLOUD	Green	Staying on	The TB40 is connected to the Internet and the
			connection is available.
		Flashing once every 2s	The TB40 is connected to VNNOX and the connection is available.
RUN	Green	Flashing once every second	No video signal
		Flashing once every 0.5s	The TB40 is functioning normally.
		Staying on/off	FPGA loading is abnormal.

Specifications Novastar TB40

Tolerance: ±0.3 Unit: mm

Electrical Parameters	Input power	DC 12 V, 2 A
Electrical Parameters	Maximum power consumption	18 W
Storage Capacity	RAM	1 GB
Storage Capacity	Internal storage	16 GB
Storage Environment	Temperature	–40°C to +80°C
Storage Environment	Humidity	0% RH to 80% RH, non-condensing
Operating Environment	Temperature	–20ºC to +60ºC
Operating Environment	Humidity	0% RH to 80% RH, non-condensing
Packing Information	Dimensions (L×W×H)	385.0 mm × 280.0 mm × 75.0 mm
Packing Information	List	1x TB40 1x Wi-Fi omnidirectional antenna 1x Power adapter 1x Quick Start Guide
Dimensions (L×W×H)	238.8 mm × 140.5 mm × 32.0 mm
Net weight	430.0 g
IP Rating	IP20 Please prevent the product from water intrusion and do not wet or wash the product.
System Software	Android 11.0 operating system software Android terminal application software FPGA program Note: Third-party applications are not supported.
