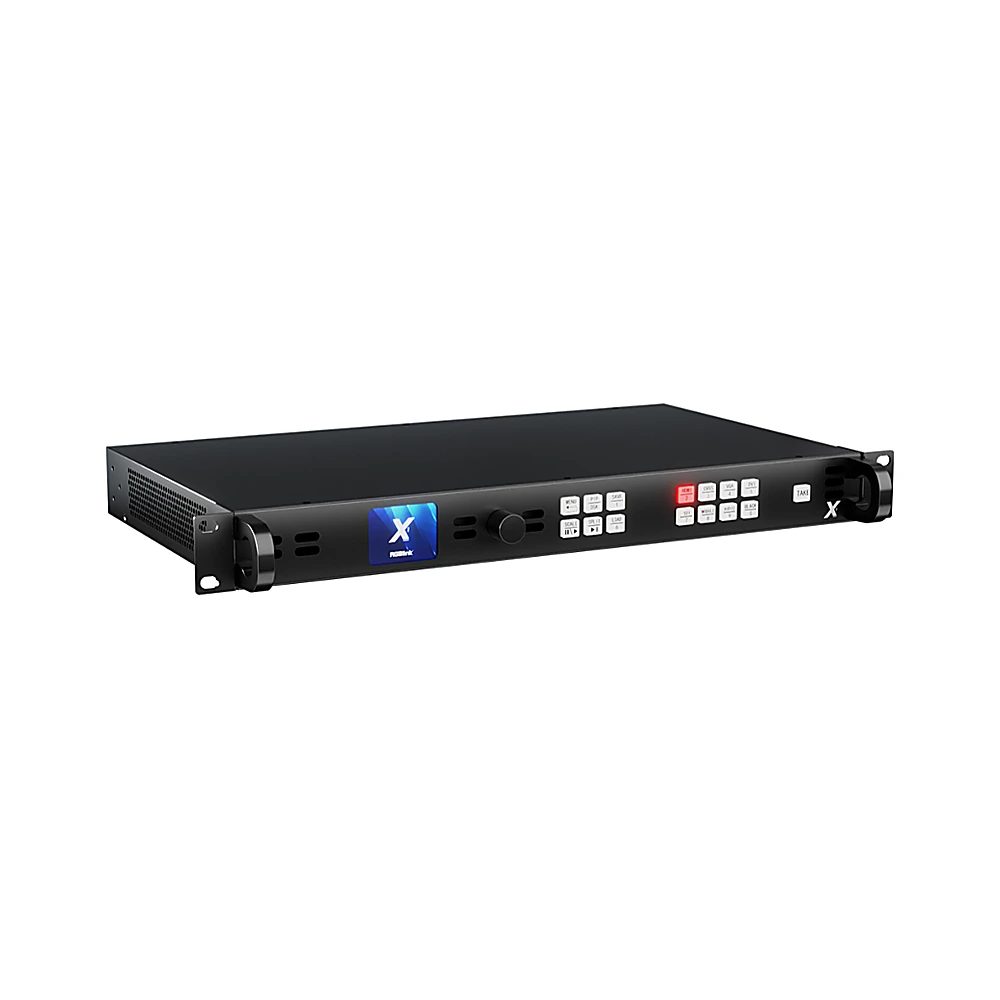

RGBlink venus X1 Gen2

฿35,000.00

RGBlink Venus X1 gen2
เครื่อง รับ-ส่ง สัญญาณภาพ หลากหลายรูปแบบ
รองรับการใช้งานร่วมกับ card linsn และ novastar
รองรับความละเอียดDVI output to 2048×1152@60
Brochure : X1 Gen2_Product Brochure_EN_V1.0_20241011
คู่มือการใช้งาน : X1 Gen2_User Manual_EN_V1.0_20241119

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

หมวดหมู่: VDO processor, RGBlink

สารบัญ

RGBlink venus X1 Gen2 VDO PROCESSOR

RGBlink venus x1 gen2

After 7 vears, X1 iteration happens and Gen2 is released, refine and enhance based on market feedback anotrends.

As a leading broadcast video processor, X1 Gen2 solids its DVl output resolution up to 2048×1152@ 60 anocustomized resolution capacity. And it offers an optionalSD module to meetstudio and rental requirement, also extends its broadcast ability to multiple test pattern build in, seamlessswitching between inputs, auto detection for VESA and SMPTE input standard,audio embedded and de-embedder.

X1 Gen2 is dedicated for LED display processor and compatible with common LED control system, includingNovastar, Colorlight, Linsn, Mooncell and RGBlink.

Features RGBlink Venus X1 Gen2

Picture-in-Picture (PIP), Picture-by-Picture (PBP), and customized PIP layout
Audio and video svnchronization
Support multiple signal format inputs
Seamless TAKE switching between inputs
DSK/Chroma Key RGBlink venus X1 Gen2
open API for 3rd party integration
EDID management for both DVl and HDMlinputs
Standard build in with 2 DVl outputs
Customized output resolution
Multiple units can be cascaded for uniform control
On board test patterns

Seamless Switching

X1 supports seamless switching between any in and any out, and supports TAKE pre-sync for delay free switching and signal confirmation before switch the input signal source.

Picture-by-Picture display

Select any input signal for use as a PIP , configure sources

side-by-side as PBP (picture-by-picture) for area of interest display for specific displays. Menu functionally provides quick presets as well as refinements.

Multi-Device Splicing

Combine multiple devices linking via HDMI to provide pixel perfect video for splicing multiple displays.

Audio Integrated

X1 supports RCA audio input and output, supports audio plus de-embedding, HDMI input and DVI input support embedded audio input, external audio output interface can be connected to the stereo and other equipment, applied to advertising, bars and other projects. RGBlink venus X1 Gen2

Broadcast-quality SDI processing

The SDI input is compatible with standard SMPTE signal formats including SD SDI/ HD SDI/ 3G SDI and supports backward compatibility. In addition, it is equipped with noise reduction, jaggedness elimination and positional fine-tuning functions to meet the needs of broadcast-quality camera capture applications

One-click keying

No need for complex operations to complete the virtual scene cut, support for a variety of preset background colours (green, blue, white, black, red), one-click keying, but also supports user-defined settings to meet the graphic overlay, the environment of the green screen shooting, the environment of the blue screen shooting, and other application scenarios

Connectors	Input	X1
		Standard with	HDMI In/Loop	2×HDMI-A
			DVI	1×DVI-I
			VGA	1×DB15
			CVBS	1×BNC
		X1-S	RGBlink venus X1 Gen2
		Standard with	HDMI In/Loop	2×HDMI-A
			DVI	1×DVI-I
			VGA	1×DB15
			CVBS	1×BNC
			SDI In/Loop	2×BNC(1 In\|1 Backup)
	Output	Standard with	DVI	2×DVI-I
	Audio		IN L/R	2×RCA
			OUT L/R	2×RCA
			Audio Out	1×3.5mm Stereo Jack
	Communication		Serial RS232 In	1×RJ11
			Serial USB In	1×USB-B
	Power		1×IEC
Performance	Input Resolutions	DVI \| HDMI RGBlink venus X1 Gen2
		SMPTE	480i \| 576i \| 720p@50/59.94/60 \| 1080i@50/59.94/60 \| 1080p@50/59.94/60
		VESA	800×600@60 \| 1024×768@60 \| 1280×768@60 \| 1280×1024@60 \| 1366×768@60 \| 1600×1200@60 \| 1920×1080@60
		VGA
		VESA	800×600@60 \| 1024×768@60 \| 1280×1024@60 \| 1366×768@60 \| 1440×900@60 \| 1600×1200@60 \| 1920×1080@60
		SDI
		SMPTE	480i \| 576i \| 720p@25/30/50/60Hz \| 1080i@50/59.94/60Hz \| 1080p@23.98/24/25/29.97/30/50/59.94/60Hz
	Output Resolutions	Select from below or configure customized DVI
		SMPTE	720p@30/50/60 \| 1080p@30/50/60
		VESA	1024×768@60 \| 1280×720@60 \| 1280×800@60 \| 1280×1024@60 \| 1360×768@60 \| 1366×768@60 \| 1440×900@60 \| 1400×1050@60 \| 1600×1200@60 \| 1680×1050@60 \| 1920×1080@60 \| 1920×1200@60 \| 2048×1152@60 \| 2560×816@60
	Supported Standard	SDI	SMPTE 425M (Level A & B) \| SMPTE 424M \| SMPTE 292M \| SMPTE 259M-C \| DVB-ASI
		VGA	UXGA
		HDMI	1.3
Power	Input Voltage	AC 100V-240V, 50/60Hz
	Max Power	25W
Environment	Temperature	0℃～55℃
	Humidity	20%~90%
Physical	Weight	Net	3.1kg
		Packaged	5.25kg
	Dimension	Net	480mm×303mm×45mm
		Packaged	540mm×360mm×135mm
