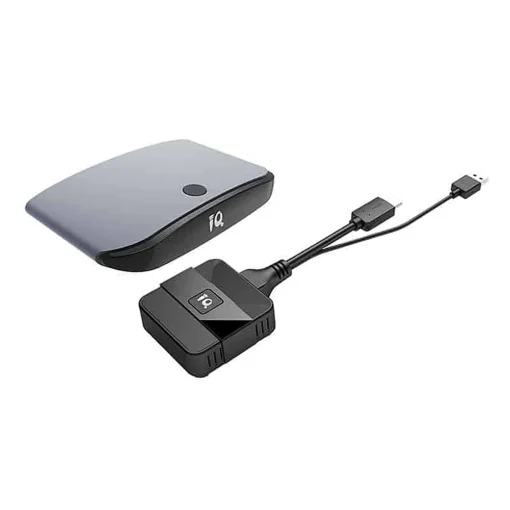

เครื่องส่งสัญญาณภาพไร้สาย IQ share WP32
IQShare supports everyone to share ideas and cast the laptop screen on the big screen instantly with a button click.
IQ Share WP32 Laptops or any other device with HDMI output can be presented on any device with HDMI input And it supports multiple interfaces: USB, HDMI, TYPE C
Touch on the screen to control laptop directly while mirroring the laptop to the Touch screen.
Up to 8pcs computers can be connected at the same time with one button projection.
Up to 4 laptop screens can be displayed on the big screen at the same time.
No need to download and set up any software on the laptop, just execute the file and start to share.
Support IOS casting and Android phone and tablet casting.
Share from any device
There are different ways to share your content on the meeting room screen wirelessly with IQShare
สอบถามเพิ่มเติม
Name | IQ Share WP32 |
Model | WP32 |
Video outputs | HDMI 1.4, comply with HDCP |
Frame rate | Up to 60 fps depending on environment (FHD) |
Output resolution | 720*480, 720*576, 1280*720, 1920*1080(1080P) |
Input resolution | Video : 480P, 576P, 720P, 1080P
PC timing: 640*480, 800*600, 1024*768, 1280*720, 1920*1080 |
Simultaneous
connections |
8 pcs |
Max . display windows | 4 pcs |
Audio | Stereo, Radio quality 16bits 48KHz |
Wireless
Transmission Band |
2.4 GHz & 5 GHz (dual band WIFI) |
Wireless Transmission Protocol | IEEE 802.11 a/g/n/ac |
Data rate Wireless | > 200 Mbps *2 |
Authentication protocol | WPA2-PSK (Pre-Share Key) |
Security(encryption) | AES |
Support OS | Windows, MAC, Android, IOS 8.0 and above |
Reach | Max. 15m between IQ3288ES Box and IQ HDMI Dongle |
Operating Temperature | -20°~ 70° |
Share Button | |
Model | H1 |
Cable | USB Type A, HDMI Cable |
Reset Button | *1 |
LED | 3/6 LED(R.G.B) |
Touch Back Control | 10 Points (Windows, Mac)
Mouse Mode(Windows, Mac) |
Power Supply | DC5V±10%, 0.5A |
Power Consumption | 2.5W |
Dimension(W*H*D) | 64*66*20mm(without wire)
64*275*20mm(with wire) |
Weight | 86.6g |
IQShare Box | |
Interface | HDMI 1.4*1, USB*2, RJ45*1, Earphone*1, TF(max. 64GB)*1,DC Power Jack*1 |
Power Supply | DC5V±10%, 0.5A |
Power Consumption | 24W |
Dimension(W*H*D) | 140*85*20mm |
Weight | 260g |
