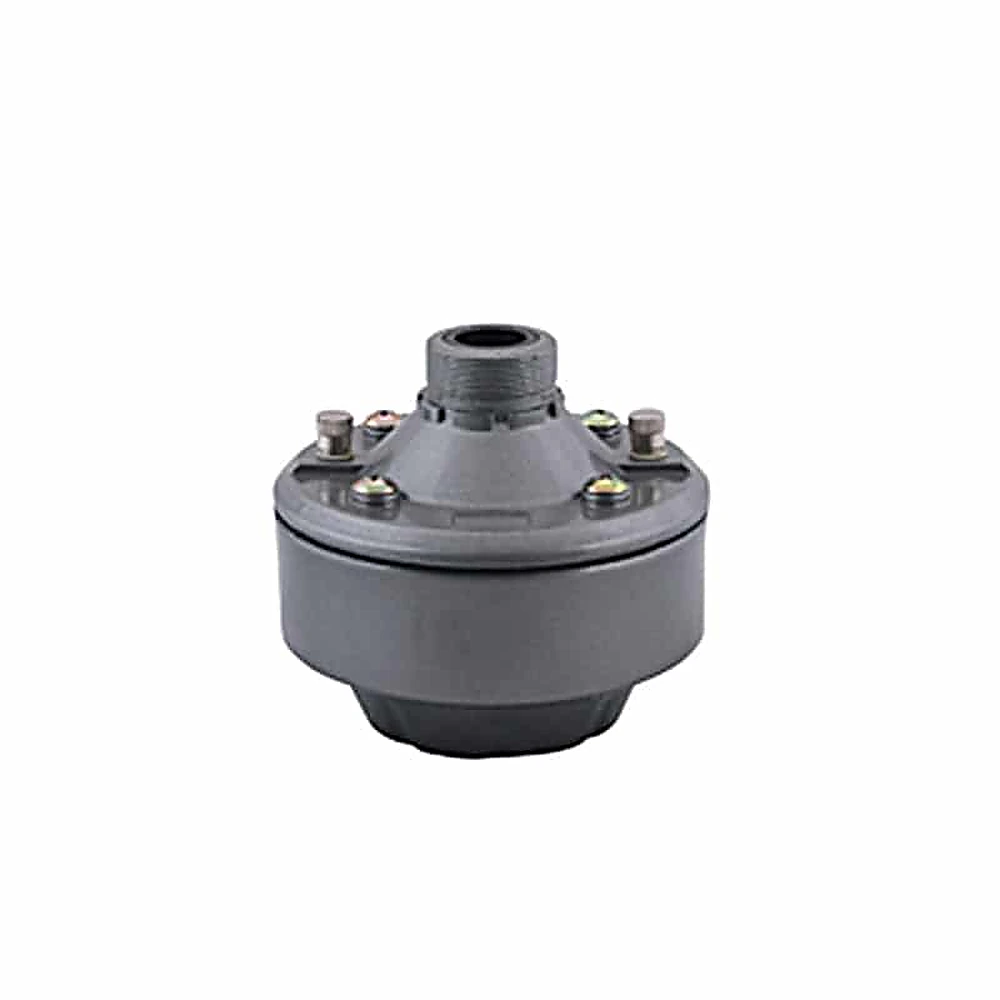

CMX DUL-60 ตัวแปลงขนาดเสียง
Feature ตัวแปลงขนาดเสียง CMX DUL-60 :
- Combination range PA driver units with transformer for optional reflex horn
- Well match with reflex horn to combine into public address (PA) horn speaker
- Rated power output of 60W at 16Ω
- Long distance dispersion with high SPL and crisp penetrating voice
- Voice coil precision-wound on an aluminum bobbin for efficient heat dissipation
- Exactly well-matched with reflex horn with IP66 water and dust proof
- Standard 1-3/8” threaded throat well match the optional reflex horn
- Wide range temp endurable from -30℃ to 70℃
- Quick installation design
Specification :
Model |
DUL-60 |
Description |
PA Low Impedance Driver Unit |
Input Power |
60W RMS/90W Max. |
Impedance |
16Ω |
Frequency Response |
300-5kHz |
SPL(1W/1m) |
113dB |
Waterproof Rate |
IP66 |
Working Temp |
-30℃ to 70℃ |
Material |
Aluminum bobbin and die-cast aluminum flange in grey |
Throat Coupling |
Universal 1-3/8” |
Dimension |
128(D)×102(H)mm |
Weight |
2.05kg |
