NovaStar VC6 Pro Vdo Processor

The VC6 is NovaStar’s new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports. A VC6 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for on-site extra-wide and extra-high LED screen control applications.
The VC6 is capable of receiving a variety of video signals and processing high-resolution images. Furthermore, the device features stepless output scaling, OSD, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.
Thanks to its powerful video processing and sending capabilities and other outstanding features, the VC6 can be widely used in fixed LED screen applications.
Feature of NovaStar VC6 Pro
- Input connectors
- 2x HDMI 1.3 NovaStar VC6 Pro
- 2x HDMI 2.0
- Output connectors
- 6x Gigabit Ethernet ports
- A single device unit drives up to 3.9 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
- 1x HDMI 1.3
- For monitoring or video output
- Audio input and output
- Audio input accompanied with HDMI input source
- 3.5 mm independent audio input and output
- Audio output via a multifunction card
- As low as 1-frame latency
- Reduce the delay from the input to receiving card to 1 frame when the low latency and synchronization functions are both turned on.
-
- 3x layers
- Adjustable layer size and position
- Adjustable layer priority
- 1 x OSD
- Each preset supports one OSD image.
- Up to 8 OSD images can be imported and saved.
- Max. OSD image resolution: 3.9 million pixels, with the maximum width and height up to 10,240 pixels and 8192 pixels respectively
- Adjustable OSD image priority
- Powerful video processing
- Based on SuperView III image quality processing technologies to provide stepless output scaling.
- One-click full screen display
- Free input cropping
- Color adjustment
- Supports input color management, including brightness, saturation, contrast and hue.
- Easy preset saving and loading
- Up to 10 user-defined presets supported
- Hot backup
- Backup between devices
- Backup between Ethernet ports
- Output synchronization

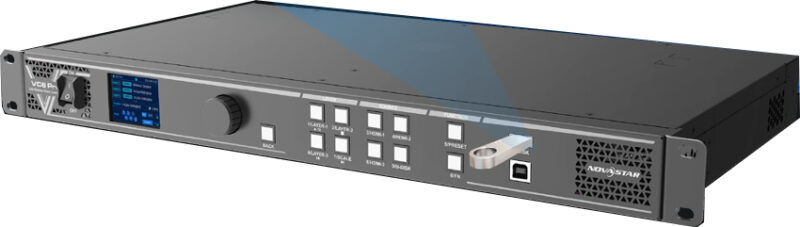

Front Panel of NovaStar VC6 Pro

| Button | Description |
|---|---|
| Power switch | Power on or power off the device. |
| LCD screen | Display the device status, menus, submenus and messages. |
| Knob | l Rotate the knob to select a menu item or adjust the parameter value.
l Press the knob to confirm the setting or operation. |
| ESC button | Exit the current menu or cancel an operation. |
| Control area | l Open or close a layer (main layer and PIP layers), and show the layer status. Status LEDs:
− On (blue): The layer is opened. − Flashing (blue): The layer is being edited. − On (white): The layer is closed. l SCALE: A shortcut button for the full screen function. Press the button to make the layer of the lowest priority fill the entire screen. Status LEDs: − On (blue): Full screen scaling is turned on. − On (white): Full screen scaling is turned off. |
| Input source buttons | l Input source switching buttons.
Press the button to switch the input source for the main layer. l Button indicators are used to indicate the working status of the input source signal. − On (blue): An input source is accessed. − Flashing (blue): The input source is not accessed but used by the layer. |

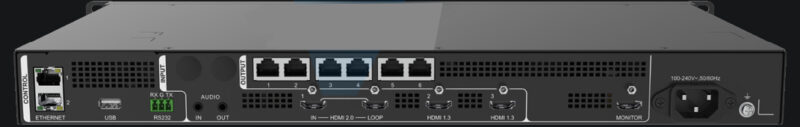

Rear Panel of NovaStar VC6 Pro

| Input Connectors | ||
|---|---|---|
| Connector | Qty | Description |
| HDMI2.0 | 2 | l Max. input resolution: 3840×2160@60Hz
l HDCP 2.0 compliant l Custom resolutions supported − Max. width: 3840 pixels (3840×648@60Hz) − Max. height: 2784 pixels (800×2784@60Hz) − 600×3840@60Hz (forced) l DOES NOT support interlaced signal inputs |
| HDMI 1.3 | 2 | l Max. input resolution: 1920×1200@60Hz
l HDCP 1.4 compliant l Custom resolutions supported − Max. width: 3840 pixels (3840×648@60Hz) − Max. height: 2784 pixels (800×2784@60Hz) − 600×3840@60Hz (forced) l DOES NOT support interlaced signal inputs |
| AUDIO IN | 1 | 3.5 mm audio input connector |
| Output Connectors | ||
| Connector | Qty | Description |
| Ethernet ports | 6 | Gigabit Ethernet ports
l Max. loading capacity: 3.9 million pixels l Max. width: 10,240 pixels l Max. height: 8192 pixels Ethernet ports 1 and 2 support audio output. When you use a multifunction card to parse the audio, be sure to connect the card to Ethernet port 1 or 2. Status LEDs: l The top left one indicates the connection status. − On: The port is well connected. − Flashing: The port is not well connected, such as loose connection. − Off: The port is not connected. l The top right one indicates the communication status. − On: The Ethernet cable is short-circuited. − Flashing: The communication is good and data is being transmitted. − Off: No data transmission |
| HDMI Monitor | 1 | l Support monitor and video output modes. NovaStar VC6 Pro
l The output resolution is adjustable. |
| AUDIO OUT | 1 | 3.5 mm audio output connector |
| Control Connectors | ||
| Connector | Qty | Description |
| ETHERNET | 2 | Connect to the control PC and update the firmware program in V-Can. Status LEDs:
l The top left one indicates the connection status. − On: The port is well connected. − Flashing: The port is not well connected, such as loose connection. − Off: The port is not connected. l The top right one indicates the communication status. − On: The Ethernet cable is short-circuited. − Flashing: The communication is good and data is being transmitted. − Off: No data transmission |
| USB | 1 | l USB 2.0 (Type-B):
− Connect to the control PC. |
| RS232 | 1 | Connect to controller machine with code control |

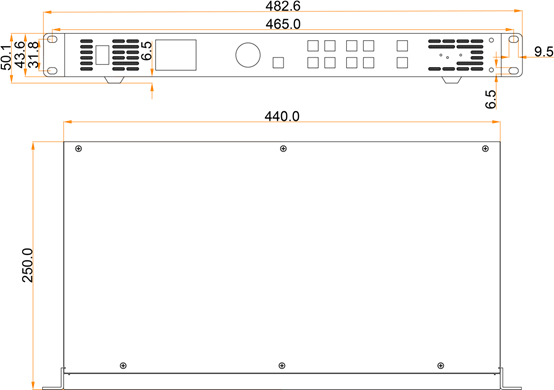

Dimension of NovaStar VC6 Pro

| Overall Specifications NovaStar VC6 Pro | ||
|---|---|---|
| Electrical Specifications | Power connector | 100–240V~, 50/60Hz, 1.6A |
| Power consumption | 28 W | |
| Operating Environment | Temperature | 0°C to 50°C |
| Humidity | 20% RH to 90% RH, non-condensing | |
| Storage Environment | Temperature | –20°C to +70°C |
| Humidity | 10% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions | 482.6 mm × 250.0 mm × 50.1 mm |
| Net weight | 4 kg | |
| Gross weight | 6.3 kg | |
| Packing Information | Accessories | 1x Power cord 1x USB cable 1x DVI cable 1x HDMI cable
1x Certificate of Approval |
| Packing box | 550 mm × 175 mm × 400 mm | |
| Noise Level (typical at 25°C/77°F) | 45 dB (A) | |
