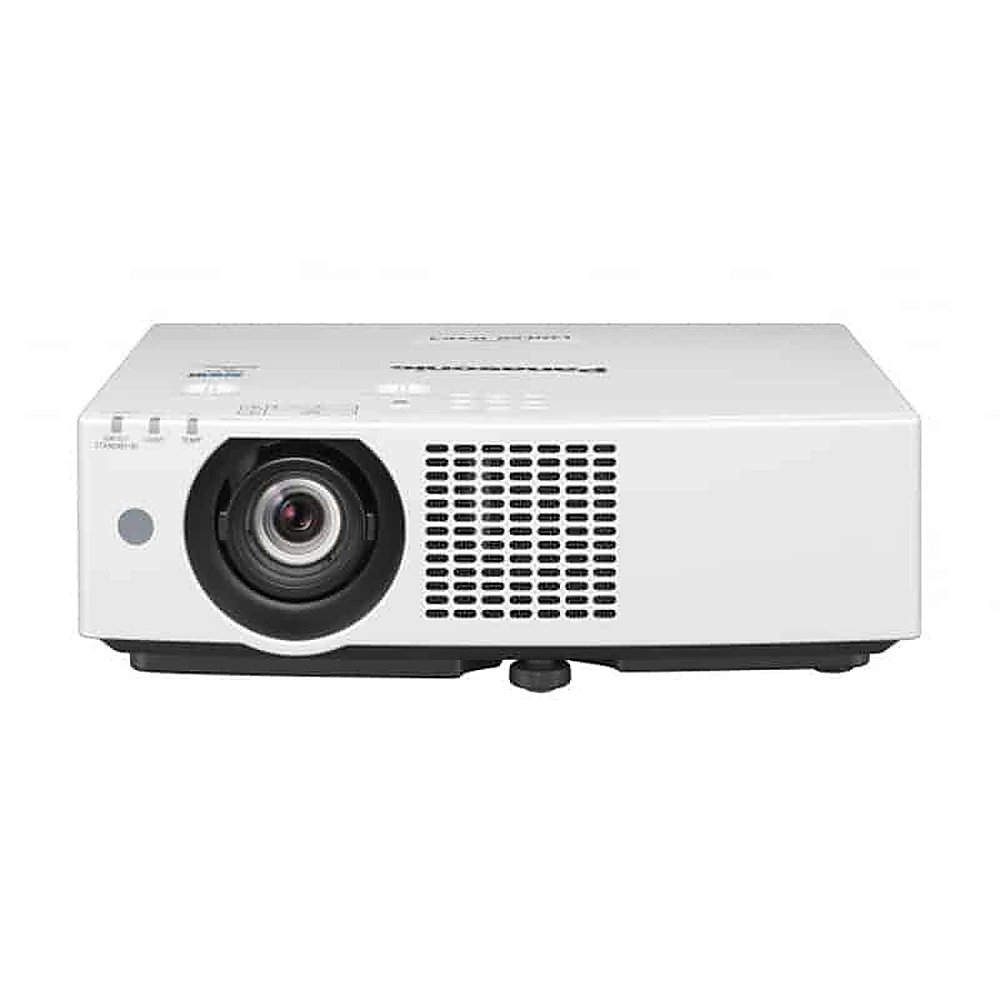

Panasonic PT-VMW60 (6000lm/WXGA)

เครื่องฉายภาพโปรเจคเตอร์ Panasonic PT-VMW60

• Brand : Panasonic

• Projector Technology Laser Light Source

• Brightness : 6000

• Contrast Ratio: 3,000,000:1

• Resolution : 1280×800(WXGA)

• Aspect Ratio : 16:10

• Keystone Correction Vertical : ±30 °

• Lamp Life(STD/ECO)(hr): 20,000

• Weight 7.2 Kg

• Warranty ตัวเครื่อง 3 ปี หลอดภาพ 3 ปีหรือ 20,000 ชม.

• Model Panasonic PT-VMW60
• Power supply AC 120 V, 50/60 Hz (North America), AC 110 V, 60 Hz (Taiwan), AC 100–240 V, 50/60 Hz (other countries)
• Power consumption 385 W [North America], 400 W [other countries]
• Standby power consumption Standby Mode (Eco)*² 0.3 W [North America, Taiwan], 0.5 W [other countries]
• Standby Mode (Normal) 8 W
• LCD Panel Panel size 0.63 inches (1.60 cm) (4:3 aspect ratio)
• Display method Transparent LCD panel (× 3, R/G/B)
• Pixels 786,432 (1024 × 768) × 3, total of 2,359,296 pixels
• Lens 1.6x manual zoom (throw ratio: 1.17–1.90:1), manual focus F 1.60–1.90, f 15.31–24.64 mm
• Lamp 280 W UHM lamp × 1
• Screen size (diagonal) 30–300 inches
• Brightness*³ 5,500 lm [input signal: PC, lamp power: Normal, picture mode: Dynamic, Daylight View: OFF, Auto Power Save: OFF]
• Center-to-corner uniformity 85% Panasonic PT-VMW60
• Contrast 16,000:1 (all white/all black) [input signal: PC, lamp power: Normal, picture mode: Dynamic, Iris: On, Daylight View: OFF, Auto Power Save: OFF] Panasonic PT-VMW60
• Resolution 1024 × 768 pixels (Input signals that exceed this resolution will be converted to 1024 × 768 pixels.)
  Scanning frequency HDMI 480/60i*⁴, 576/50i*⁴, 480/60p, 576/50p, 720/60p, 720/50p, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, 1080/60i, 1080/50i, Displayable resolution: 640 x 400 to 1920 x 1200 (non-interlace), Dot clock frequency: 25 MHz to 162 MHz Panasonic PT-VMW60
• RGB (analog) Displayable resolution: 640 x 400 to 1920 x 1200 [non-interlace], fH: 15 kHz–91 kHz, fV: 24 Hz–100 Hz, dot clock: 162 MHz or lower Panasonic PT-VMW60
• YPBPR (YCBCR) fH: 15.73 kHz, fV: 59.94 Hz [480/60i], fH: 15.63 kHz, fV: 50 Hz [576/50i], fH: 31.47 kHz, fV: 59.94 Hz [480/60p], fH: 31.25 kHz, fV: 50 Hz [576/50p], fH: 45.00 kHz, fV: 60 Hz [720/60p], fH: 37.50 kHz, fV: 50 Hz [720/50p], fH: 27.00 kHz, fV: 24 Hz [1080/24p], fH: 27.00 kHz, fV: 48 Hz [1080/24sF], fH: 28.13 kHz, fV: 25 Hz [1080/25p], fH: 33.75 kHz, fV: 30 Hz [1080/30p], fH: 67.50 kHz, fV: 60 Hz [1080/60p], fH: 56.25 kHz, fV: 50 Hz [1080/50p], fH: 33.75 kHz, fV: 60 Hz [1080/60i], fH: 28.13 kHz, fV: 50 Hz [1080/50i]*, HD/SYNC and VD terminals do not support 3 value SYNC.
  Video fH: 15.73 kHz/15.63 kHz, fV: 59.94 Hz/50 Hz (NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM)
• Optical axis shift Vertical 0 to +40 % from center of screen (manual), U/D ratio on top end: 9:1
  Keystone correction range Vertical: maximum ±35 ° (auto/manual, input: XGA), Horizontal: maximum ±35 ° (manual, input: XGA), Up to a total of ±55 ° during simultaneous horizontal and vertical correction.
• Installation Front ceiling/Front desk/Rear ceiling/Rear desk
  Terminals HDMI IN HDMI 19-pin × 2 (Deep Color, compatible with HDCP), audio signal: Linear PCM [sampling frequency: 48 kHz/44.1 kHz/32 kHz]
• COMPUTER IN 1 D-sub 15-pin (female) x 1 [RGB/Y • PB (CB) • PR (CR)]
• COMPUTER IN 2 / MONITOR OUT D-sub 15-pin (female) x 1 [RGB/Y • PB (CB) • PR (CR) (input/output switching)]
• VIDEO IN Pin jack x 1
• AUDIO IN 1 M3 stereo mini jack x 1
• AUDIO IN 2 M3 stereo mini jack x 1
• AUDIO IN 3 Pin jack (L/R) x 1
• AUDIO OUT M3 stereo mini jack x 1 (monitor out: variable)
• SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
• USB A Type A for DC output x 1 (for power supply, DC 5 V, max. 2 A)
• USB B – Panasonic PT-VMW60
• LAN/DIGITAL LINK –
• LAN RJ-45 × 1 for network connection, 10Base-T/100Base-TX, compatible with PJLink™
• Built-in speaker 4.0 cm (1 1/16”) round shape × 1, output power: 10 W (monaural)
• Operation noise*³ 37 dB (lamp power: Normal), 35 dB (lamp power: ECO1), 29 dB (lamp power: ECO2)
• Cabinet materials Molded plastic
• Dimensions (W × H × D) 389 × 125*7 × 332 mm (15-5/16” × 4-29/32”*7 × 13-1/16”)
• Weight*⁶ Approximately 4.8 kg (10.6 lbs) for Panasonic PT-VMW60
• Operating environment Operating temperature: 0–40 °C (32–104 °F)*⁸ (altitude: less than 1,200 m [3,937 ft]), 0–30 °C (32–86 °F) (altitude: 1,200–2,700 m [3,937 ft–8,858 ft] ), Operating humidity: 20–80 % (no conden
  Supplied accessories Wireless remote control unit × 1, Power cord with power cord holder x 1 (x 2 for UK and Asia), Software CD-ROM × 1 (Operating instructions, Multi Monitoring and Control Software, Logo Transfer Software, Wireless Manager ME software [PT-VZ585N/VW545N/VX615N only]), Batteries (AAA type × 2), RGB cable x 1, Lens cap x 1
  Note: *¹ PT-VZ470 is not available in Taiwan.
•  When the Standby Mode is set to ECO, network functions such as Power On via LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
• Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
• Pixel-repetition signal (dot clock frequency: 27.0 MHz) Panasonic PT-VMW60 only.
• No output when projector is on standby. Panasonic PT-VMW60
• Average value. May differ depending on the actual unit.
• With legs at shortest position. Panasonic PT-VMW60
• When operating temperature is between 35 °C (95 °F) and 40 °C (104 °F) , lamp power automatically switches to ECO in order to protect the projector. Panasonic PT-VMW60
