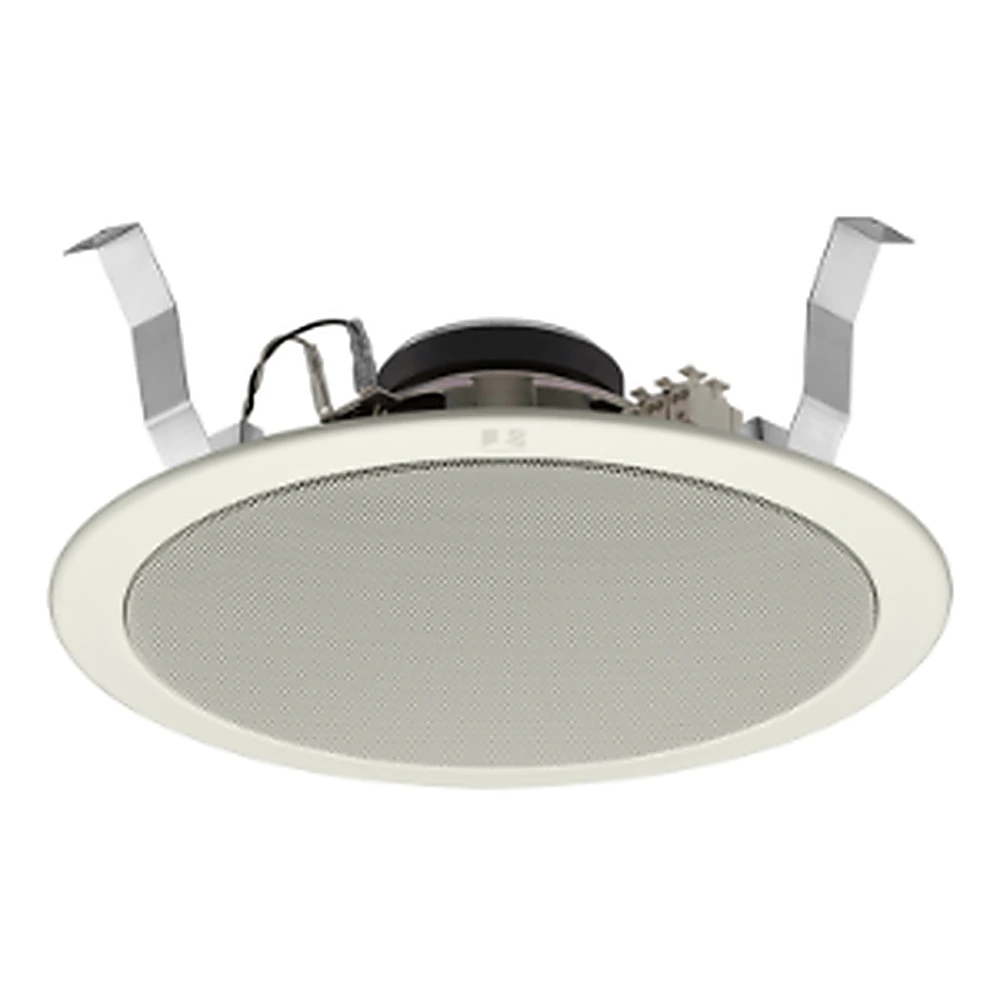

TOA PC-2869

฿1,900.00

Integrated with a speaker unit and panel, the PC-2869 Ceiling Mount Speaker is of all metallic construction and ideal for use in a voice alarm system. It feature spring clamp mechanism for easy speaker mounting to the ceiling.
The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connections easy and allows bridge wiring.
Brochure : bs-1034_cb1e

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

หมวดหมู่: ลำโพง

Ceiling Mount Speaker 6W (8″) TOA PC-2869

คุณลักษณะของ Ceiling Mount Speaker 6W (8″) TOA PC-2869

Rated Input	6 W (100 V line), 3 W (70 V line)
Rated Impedance	100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity	94 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise)
Frequency Response	40 Hz – 20 kHz (peak -20 dB)
Speaker Component	20 cm (8″) double cone-type
Dimensions for Fixing Hole	Mounting hole: φ250±3 mm (φ9.84″±0.12″) Ceiling thickness: 5 – 25 mm (0.2″ – 0.98″)
Speaker Mounting Method	Spring clamp
Applicable Cable	600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 – φ1.6 mm (equivalent to AWG 20 – 14) 7-core twisted copper wire: 0.75 – 1.25 m㎡ (equivalent to AWG 18 – 16)
Connection	Push-in connector (bridging terminal-2 branch type)
Finish	Baffle: Steel plate, white (RAL 9016 equivalent), paint Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
Dimensions	φ280 × 92 (D) mm (φ11.02″ × 3.62″)
Weight	1.4 kg (3.09 lb)
Accessory	Paper pattern …1

สอบถามเพิ่มเติม

น้ำหนัก	1.4 กก.
ขนาด	28 × 9.2 เซนติเมตร
