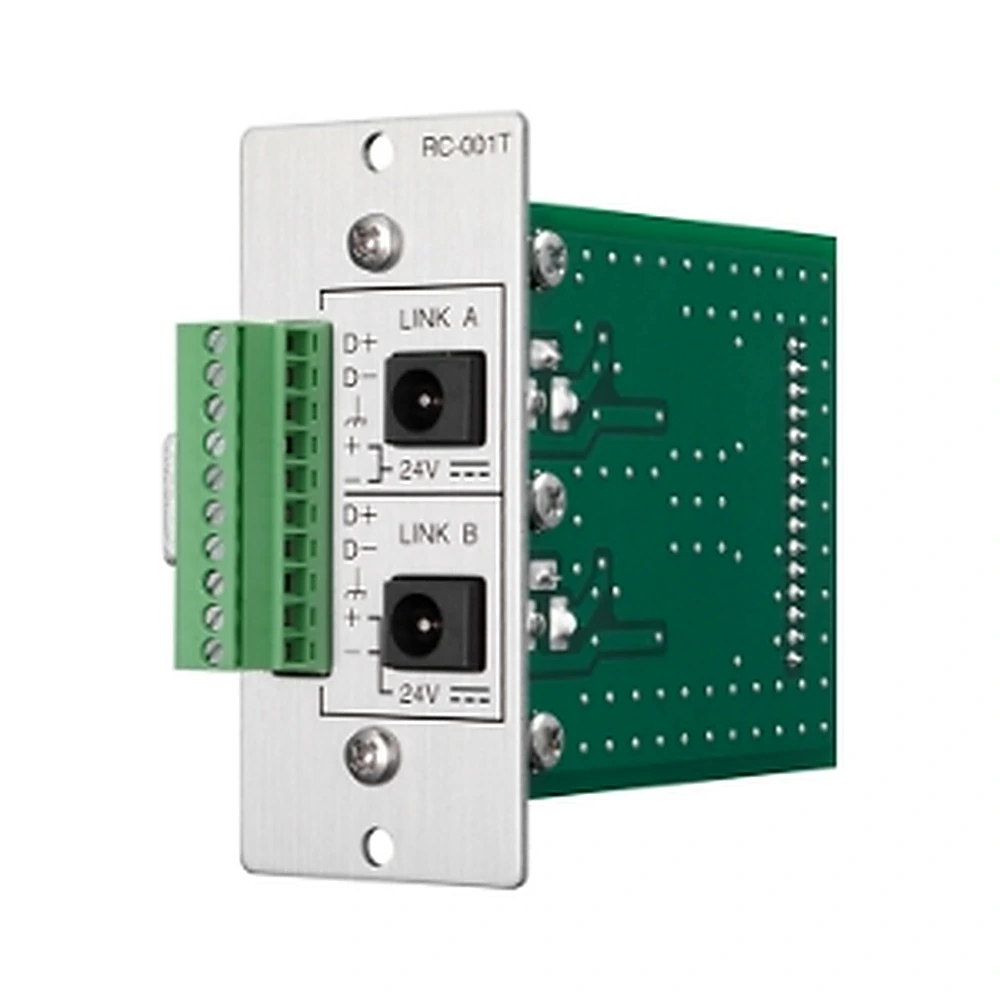

TOA RC-001T

฿9,400.00

The RC-001T is an interface module to connect between the 9000M2 Series amplifier and the ZM-9011, ZM-9012, ZM-9013, or ZM-9014 Remote control panel of data communication type. Up to 16 remote control panels can be connected to the RC-001T.
Brochure : Module matrix mixer M-9000 series

หมายเหตุ : กรุณาเช็คสินค้าก่อนทำการสั่งซื้อทุกครั้ง เพราะบางรายการอาจไม่มีสินค้าในสต็อก

หมวดหมู่: มิกเซอร์

Remote Control Module (9000 Series) TOA RC-001T

TOA RC-001T

คุณลักษณะของ Remote Control Module (9000 Series) TOA RC-001T

Allows use of up to 16 RS-485 remote control panels
Bi-directional RS-485 communication provides control and status feedback display for each remote function
Dual ports allows independent home runs for up to 8 modules each
24V DC power adapter (optional AD-246) required for each 1 port used
May be used in any control option slot on 9000M2 mainframe in addition to a C-001T when spare slots are available

Power Source	6 V DC
Current Consumption	30 mA or less
Terminal	Removable terminal block (10 pins)
Power Input	24 V DC input × 2 (Applicable AC adapter: AD-246 (option), power supply to Remote Control Panels) Adaptable DC plug: 9.5 (L) × 5.5 (OD) × 2.1 (ID) mm (0.37″ × 0.22″ × 0.08″)
Connection Cable	Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP)
Maximum Cable Distance	800 m (874.89 yd) in total
Connectable Number of Remote Control Panels	Maximum 16 units (2 link connectors used)
Operating Temperature	-10 ℃ to +40 ℃ (14 ゜F to 104 ゜F)
Operating Humidity	35 % to 80 %RH (no condensation)
Finish	Panel: Aluminum, hair-line
Dimensions	35 (W) × 78 (H) × 91.5 (D) mm (1.38″ × 3.07″ × 3.6″)
Weight	80 g (0.18 lb)
Accessory	Module mounting screw …2, Removable terminal plug (10 pins) …1
